Wi-Fi Controlled RGB LED Strip Controller

Wi-Fi Controlled RGB LED Strip Controller

The Wi-Fi Controlled RGB LED Strip Controller is a versatile RGB controller with WiFi connectivity. Download the "Magic Home Pro" app from the App Store or Google Play Store and control your RGB LED Strip using your smartphone.

Please note: You cannot connect an unlimited number of LED strips to the controller. The controller's power rating is 144W. If you want to connect LED strips with more than 144 watts to the controller, you need to use an RGB amplifier.

Specifications

• Operating Voltage: DC12-24V,
• Output Channel: 4 Channels
• Output Current: 4A (per channel)
• Connection Method: Common Anode
• Software: Android or iOS system
• RGB/RGBW, 16 million colors
• Group separation function
• Timing function
• Memory function
• Dimensions: 70x23mm

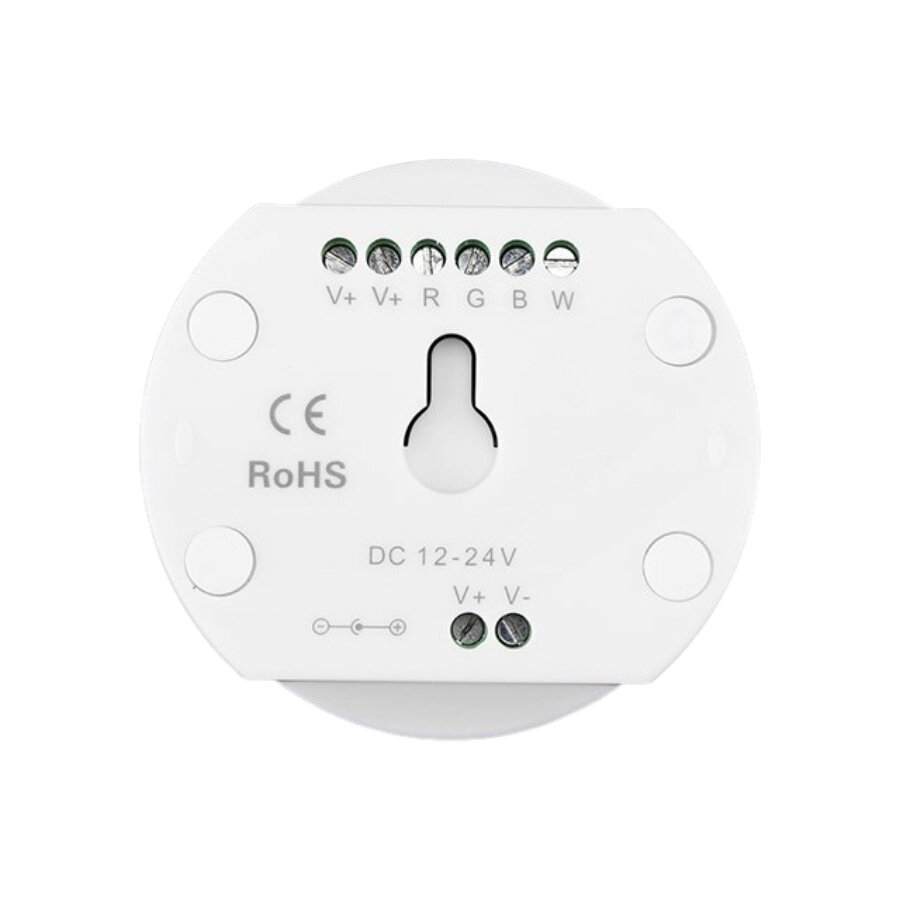

Example Connections
