XH-M239 Li-ion 18650 Battery Discharge - Capacity Measurement Module
598,00
TL
+
VAT
717,60
TL
Notify Me When It Arrives
Notify Me When It Arrives
XH-M239 Li-ion 18650 Battery Discharge - Capacity Measurement Module

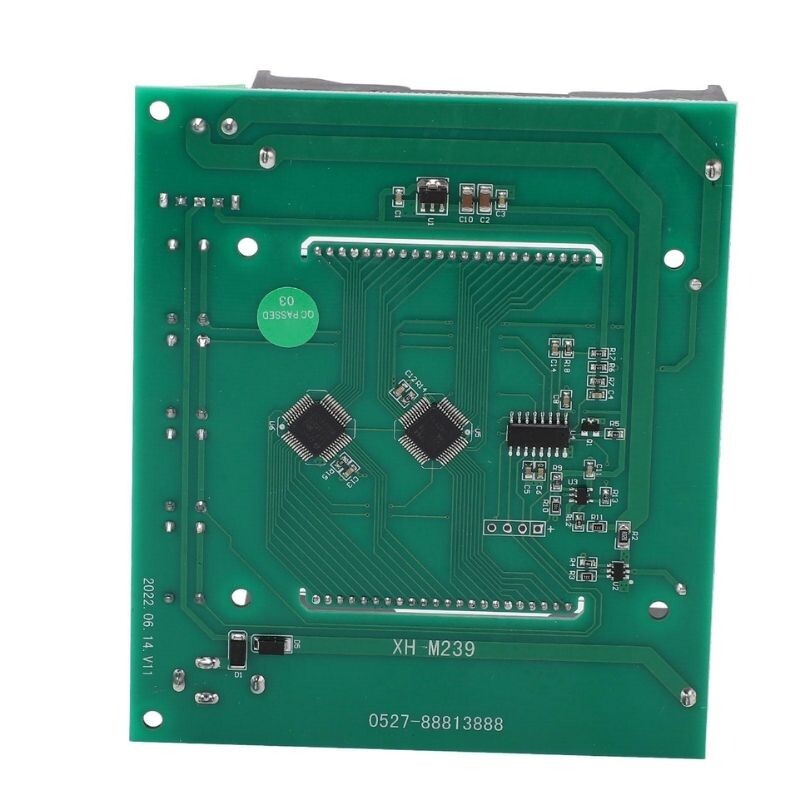

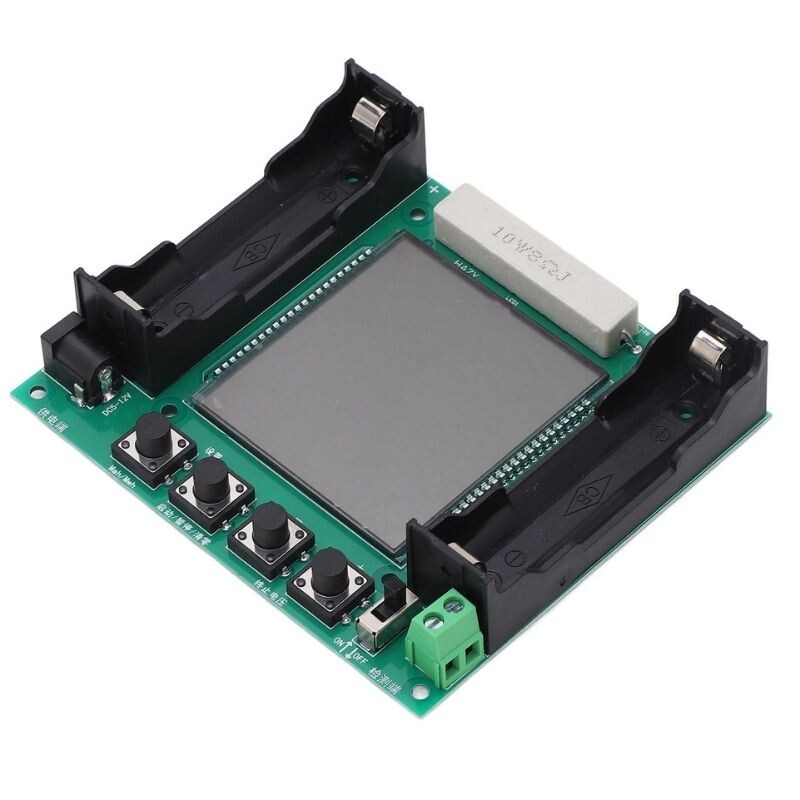

XH-M239 Li-ion 18650 Battery Discharge - Capacity Measurement Module. The 18650 battery operates with 5-12V from a 5.5x2.1mm DC jack or 3.7V via a terminal block. You can discharge your 18650 battery and measure its capacity. It has no storage function when switched off. Data is cleared when switched off. It has 4 buttons for switching between modes and stopping/starting. It has a screen to display the operations.
18650 Battery is not included with the device. It does not perform charging.
Features
- Power Supply Methods: 18650 Battery / 3.7 - 4.2VDC via terminal / DC 5-12V adapter with 5.5x2.1mm tip
- Capacity Range: 99999 mAh
- Energy Measurement Range: 99999 mWh
- Discharge Current Selection: 0.5A ~ 1A
- Discharge Load: 10WΩJ

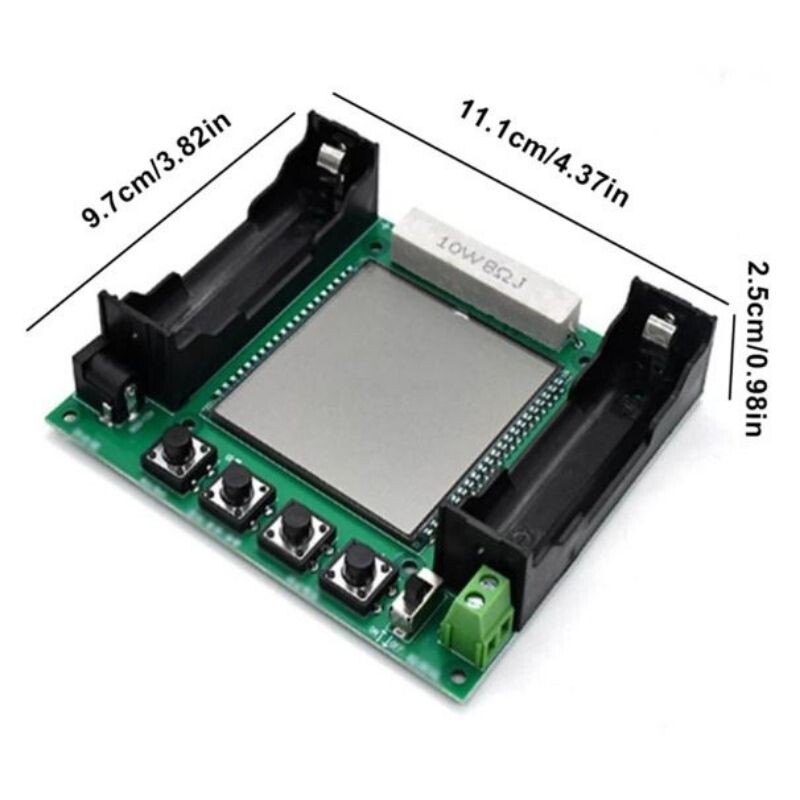

- Dimensions: 111x97x25mm
- Weight: 93g
Product Parameters
