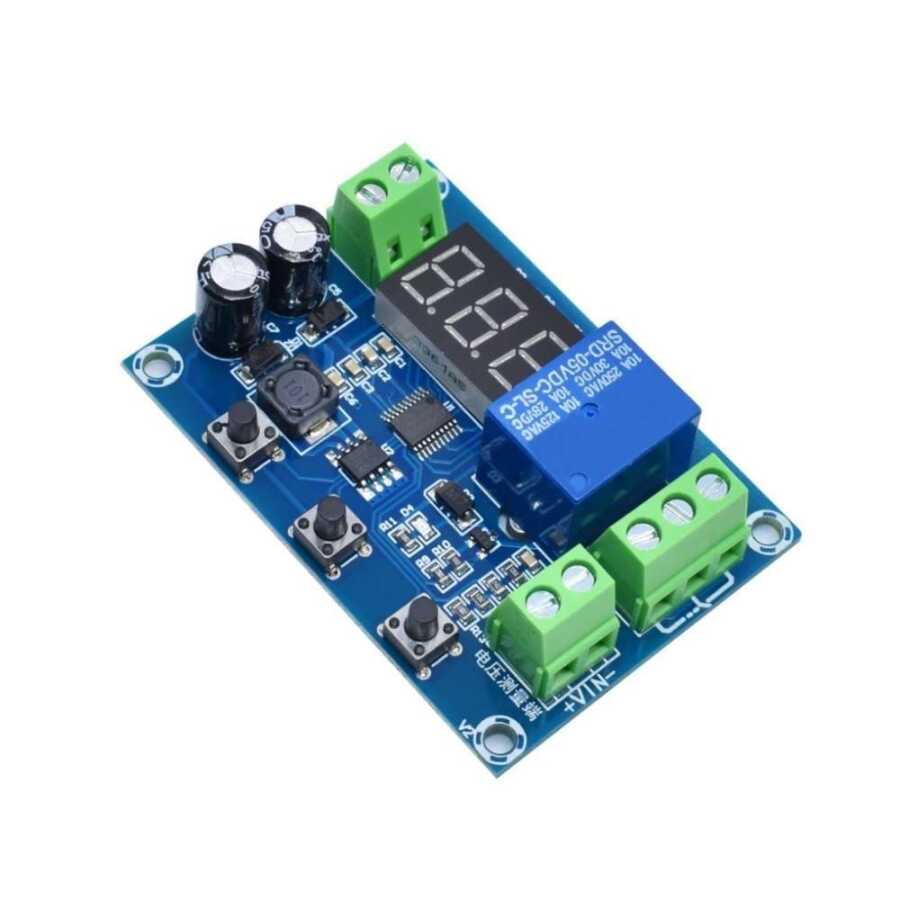

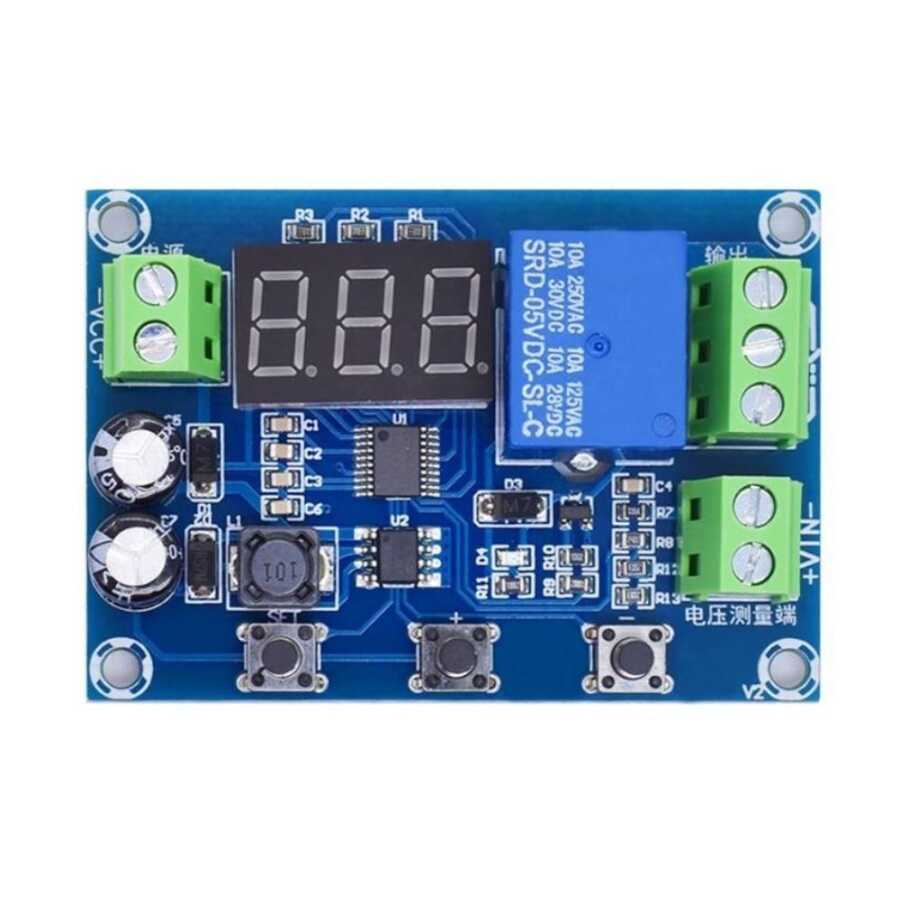

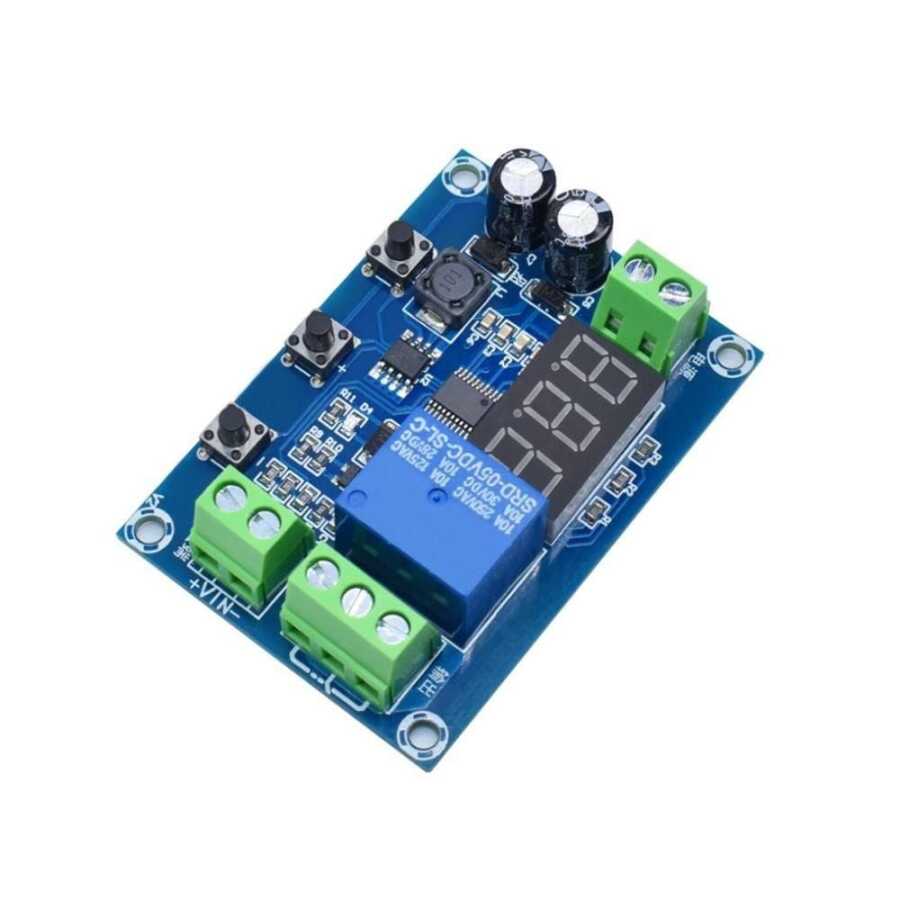

XH-M608 Battery Charge - Discharge Circuit

XH-M608 Battery Charge - Discharge Circuit allows you to charge your rechargeable products (battery, accumulator, etc.) in a protected way. It is a relay circuit that allows This product has many functions that allow you to protect your battery by closing the relay on it when the volt values determined by entering the upper and lower voltage values are exceeded. The relay on it provides resistance to 30VDC 10A dc voltage and 250VAC 10A ac voltage.

You can easily switch between functions with the SET, +, - buttons on the circuit. The product can also be used as a voltage meter and voltmeter. Circuit supply voltage is between 6-40VDC.

Product Modes:

There are U, P, C and F modes within the P0 mode.
U: When U mode is selected, the product can be used as a voltmeter. V The voltage value entered from the test leads can be displayed directly on the screen on the panel.
P: Charging with Lower and Upper Voltage value protection
C: Charging mode for the specified time
F: Discharge mode for the specified time
P1: Lower voltage value
P2: Upper voltage value
P3: Charging or discharging time

Supply Limits

For 6V: 6-7.2V
For 12V: 12-14.4V
For 24V: 24-28.8V
For 36V: 36-46.8V
