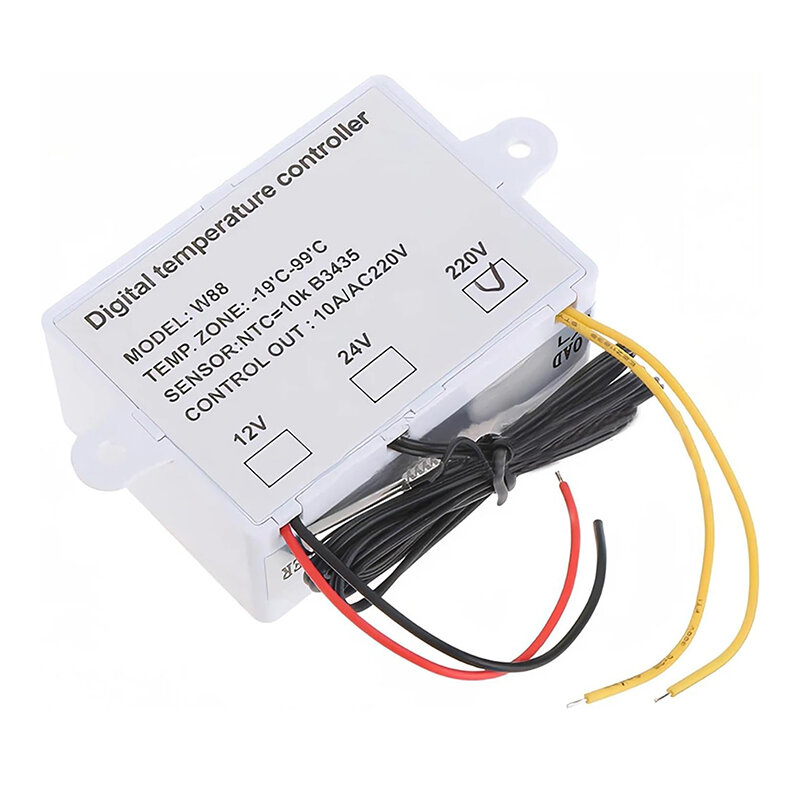

XH-W1411 W88 AC 220V 10A Digital Thermostat with Relay Output

The XH-W1411 W88 AC 220V 10A Digital Thermostat with Relay Output is a digital thermostat module that can be used in smart home projects, incubators, cooling, and heating systems. It is easily controlled using the buttons on the device.

Features

Supply Voltage: 220V AC
Nominal Current: 10A
Temperature Measurement Range: -55 ~ 120°C
Margin of Error: ± 0.3°C
Temperature Control Range: -19 ~ 99°C
Accuracy: 1°C
Probe: NTC10K
Probe Length: 1m
Panel Size: 90x60mm

Operating Modes

1- Thermostat Mode

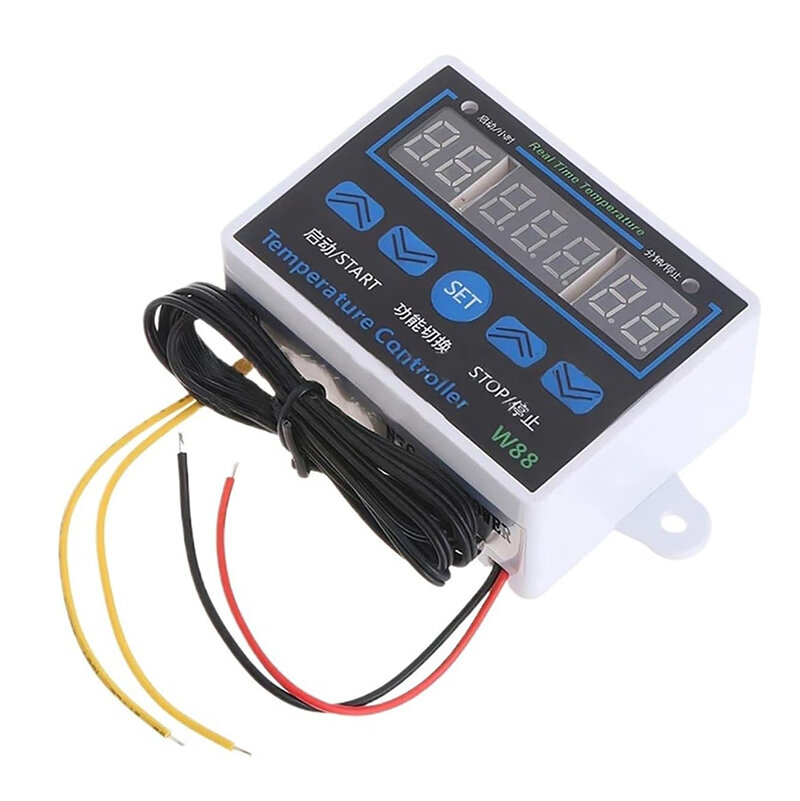

The left display shows the starting temperature. The right display shows the stopping temperature. The middle display shows the current measured temperature. Temperature settings are made with the buttons located under the left and right displays.

Heater Mode:When the left display setting value is lower than the right display setting, the device operates in heater mode.

Cooler Mode:If the right indicator setting is greater than the left indicator, the device operates in cooler mode.

Indicator:If the red left LED is on, the relay is activated and the device is heating or cooling. If the green right LED is on, the relay output is off. This means that there is no heating or cooling operation currently in progress.

Reset:To reset to factory settings, turn off the power to the product. Press the up and down buttons on the right side simultaneously to power up the device. After a while, the product will start operating with the settings reset, accompanied by a warning beep.

Calibrate:If you suspect an error in the temperature measurement, you can calibrate it. While the power is off, press the Set button and turn the power back on. You can set a value between +10 and -10 degrees Celsius. If you think the measurement is 1 degree over, enter -1. Then, press and hold the Set button. When you release it, the device will return to the normal operating screen. The temperature will be displayed differently depending on the value you entered, and the thermostat will perform its operations accordingly.

2- Timer Mode

When the Set button on the product is pressed, it enters the F1, F2, and F3 operating modes, respectively. In these modes, the relay's on and off times can be adjusted based on time.

If you want to turn the product off while it's running as a timer, press and hold the Set button. After 3 seconds, the product will shut down. If the set button is pressed again, the product will start operating.

F1 Timer Function.The product operates as a timer relay with two variables in minutes in the F1 operating function.

The number value on the left allows you to set the relay output off time in minutes.
The number value on the right allows you to set the relay output on time in minutes.

F2 Timer Function The product operates as a two-variable timer relay in the F2 operating function.

The number on the left allows you to set the relay output on time in hours.
The number on the right allows you to set the relay output off time in minutes.

F3 Timer Function.The product operates as a two-variable timer relay in the F3 operating function.

The number on the left allows you to set the relay output on time in hours.

The number on the right allows you to set the relay output off time in minutes.
