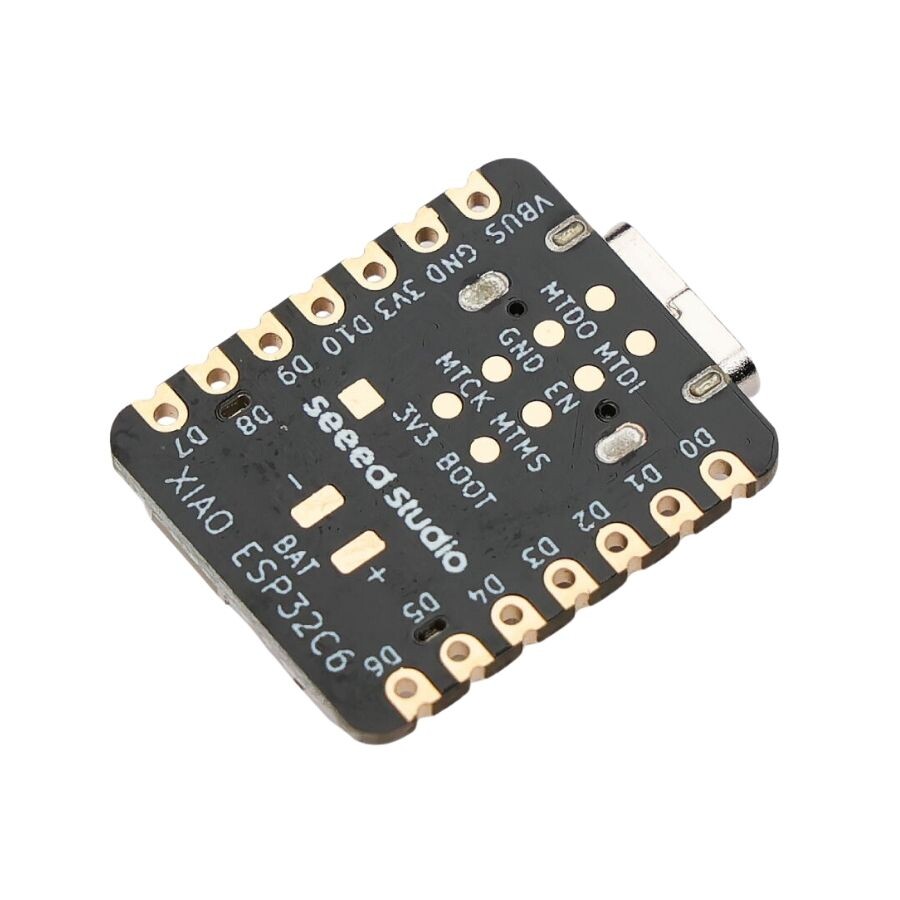

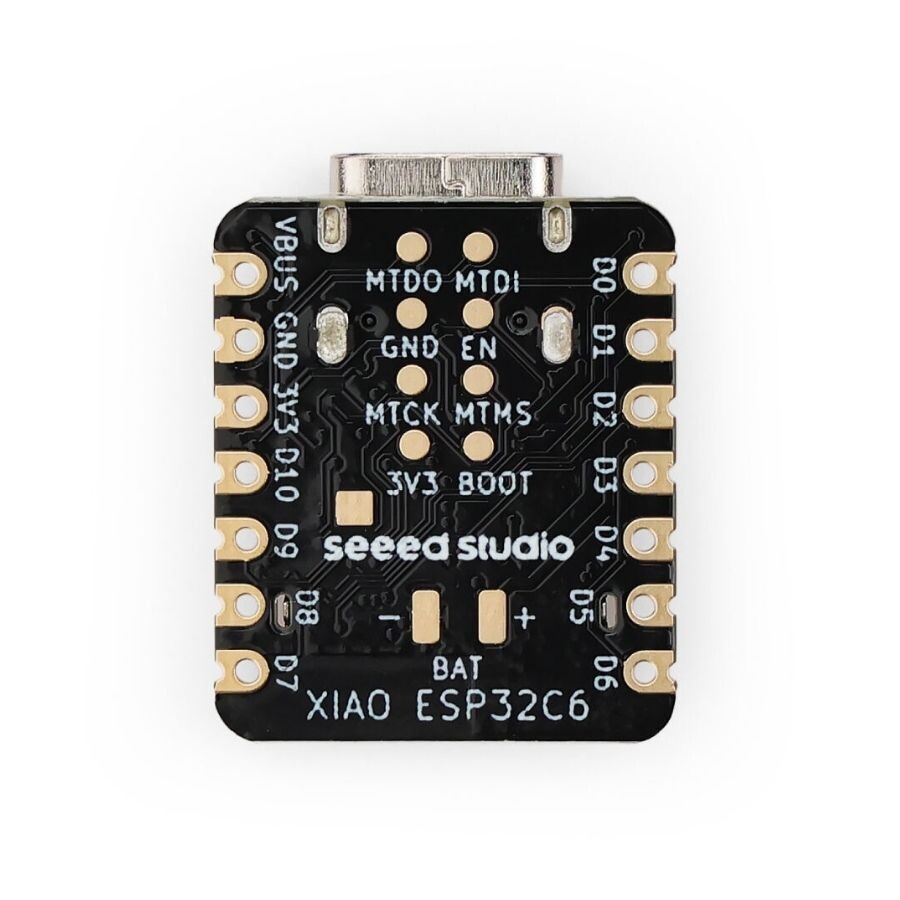

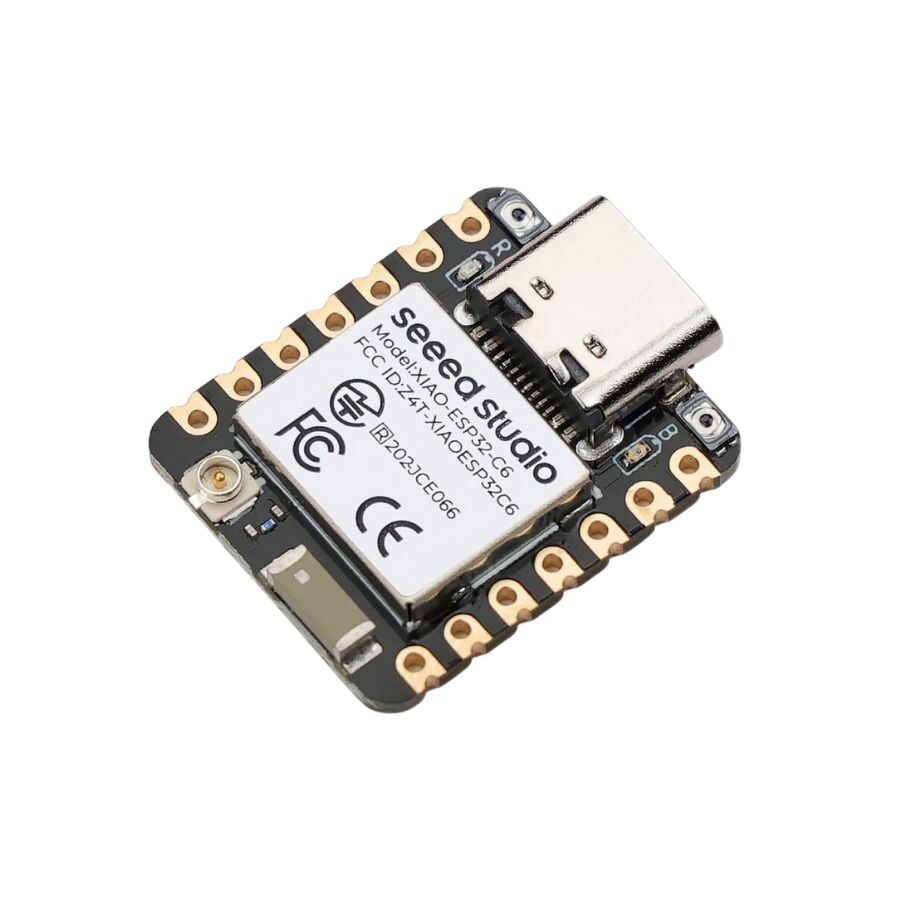

XIAO ESP32-C6 Development Board
XIAO ESP32-C6 Development Board
Specification
- SKU: 113991254
Product | XIAO ESP32C6 | ||
Processor | Espressif ESP32-C6 SoC | Espressif ESP32-C3 SoC | Espressif ESP32-S3R8 |
two 32-bit RISC-V processors, with the high-performance one running up to 160 MHz, and the low-power one clocking up to 20 MHz | RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz | Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz
| |
Wireless | Complete 2.4GHz Wi-Fi 6 subsystem | Complete 2.4GHz Wi-Fi subsystem | Complete 2.4GHz Wi-Fi subsystem |
BLE: Bluetooth 5, Bluetooth mesh | |||
Zigbee,Thread,IEEE 802.15.4 | / | / | |
On-chip Memory | 512KB SRAM & 4MB Flash | 400KB SRAM & 4MB Flash | 8M PSRAM & 8MB Flash |
Interface | 1x UART,1x LP_UART, 1x IIC, 1x LP_IIC, 1x SPI,11x GPIO(PWM), 7x ADC, 1xSDIO | 1x UART, 1x IIC, 1x SPI,11x GPIO(PWM), 4x ADC | 1x UART, 1x IIC, 1x IIS, 1x SPI,11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED |
1x Reset button, 1x Boot button | |||
Dimensions | 21 x 17.8mm | ||
Power | Input voltage (Type-C): 5V Input voltage (BAT): 4.2V | ||
Circuit operating Voltage (ready to operate): - USB:5V@9mA - BAT:3.8V@9mA | |||
Charging battery current: 100mA | |||
Power Consumption Model (Supply Power: 3.8V) | Modem-sleep Model: ~ 30 mA Light-sleep Model: ~ 2.5 mA Deep Sleep Model: ~ 15 μA | Modem-sleep Model: ~ 24 mA Light-sleep Model: ~ 3 mA Deep Sleep Model: ~ 44 μA | Modem-sleep Model: ~ 25 mA Light-sleep Model: ~ 2 mA Deep Sleep Model: ~ 14 μA |
Working Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 65°C |
