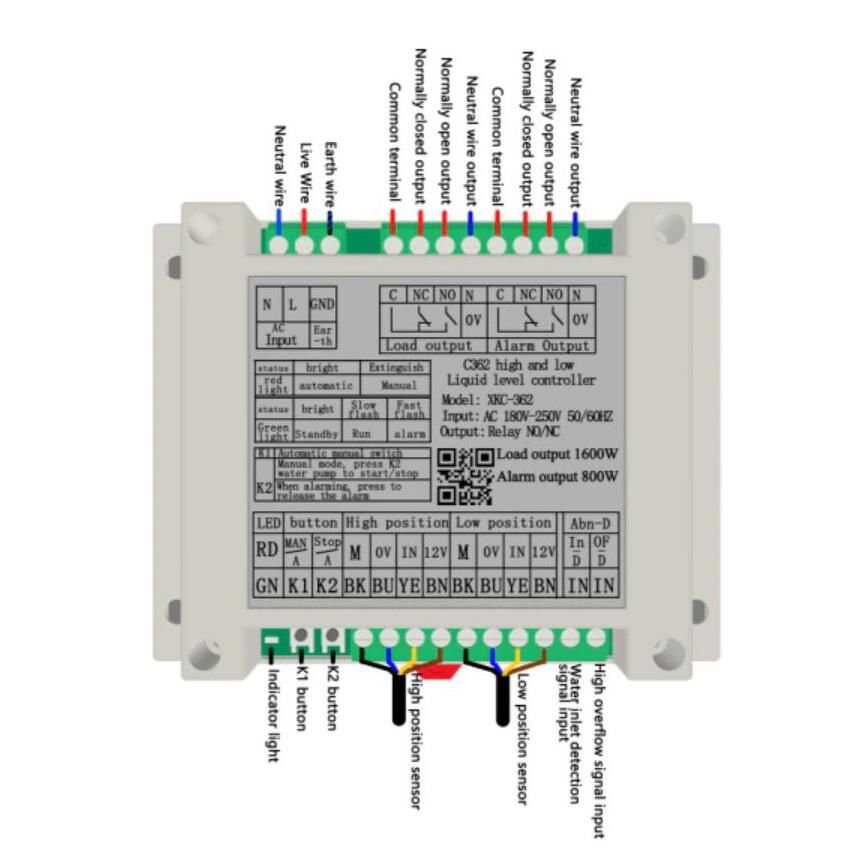

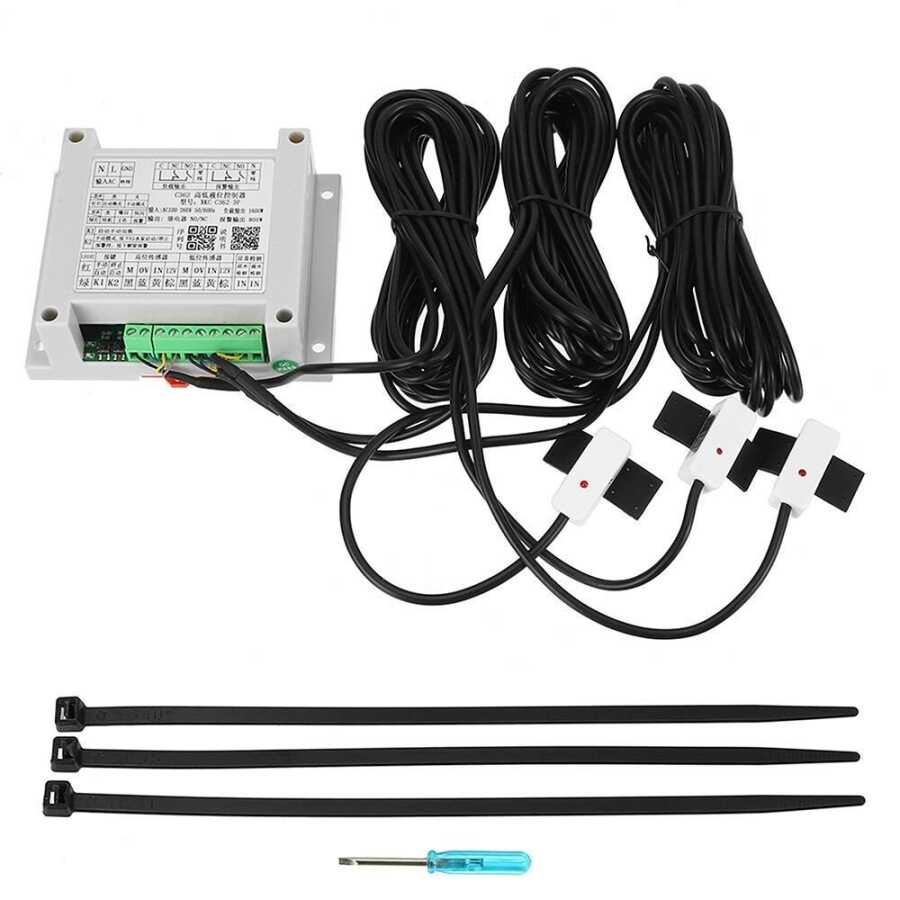

XKC-C352-3P Non-Contact Water Level Control Module - Relay Output

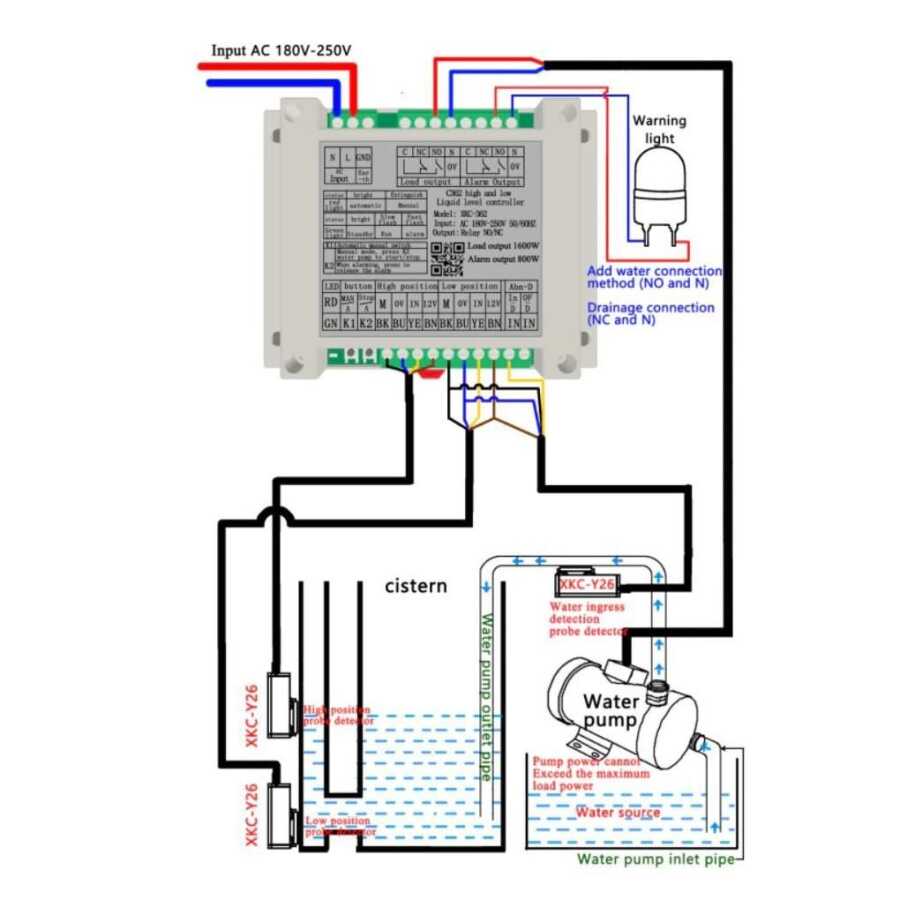

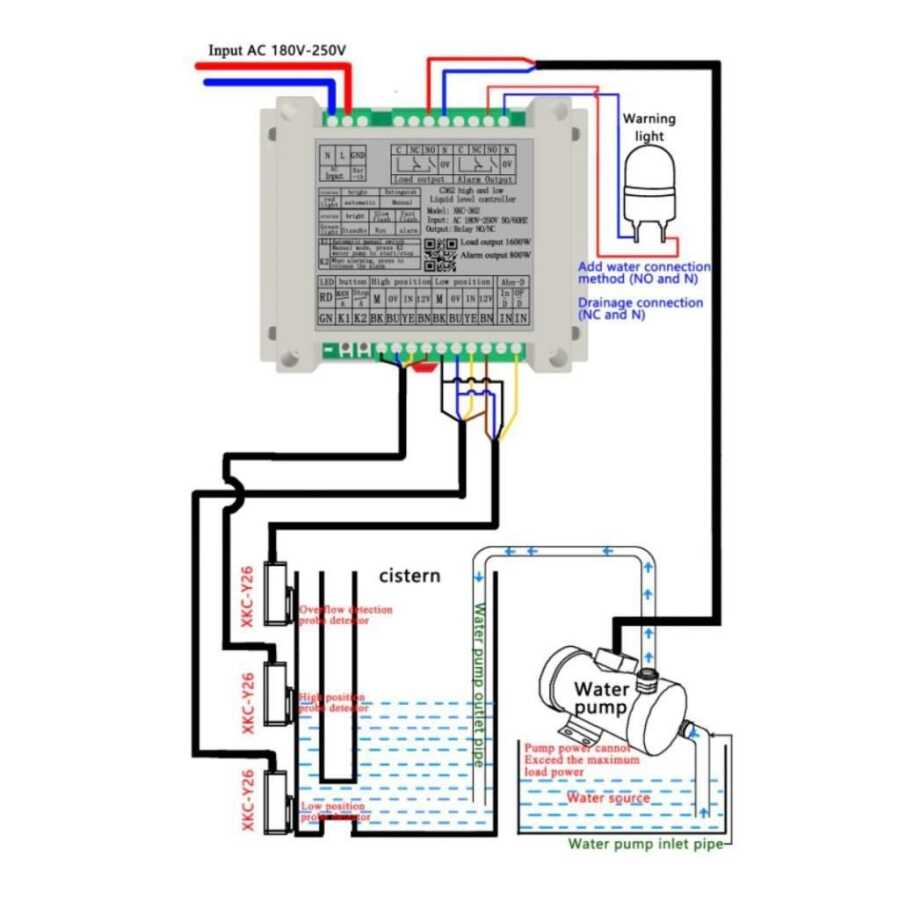

XKC-C362 high and low level controller and XKC-Y26-V liquid level detection head , realizes the function of liquid level high and low control. When the container liquid level is too low, the low liquid level alarm signal sent by the low liquid level sensor is triggered and triggers the C362 controller to start the water pump. When the liquid level reaches a certain height, the high liquid level sensor sends a signal to trigger the C362 controller to cut off the relay and automatically stop the water pump. Thus, the function of automatic control of the container liquid level is realized and the container liquid level is kept constant.



Water tanks, buckets, water towers and other It has uses such as automatic replenishment of liquid containers, smart pump solenoid valves, fish tank live water control, automatic pumping of domestic wells, automatic industrial equipment level monitoring.
