XKC-C352-3P Non-Contact Water Level Control Module with Relay Output - XCK-Y25-V Sensor

XKC-C352-3P Non-Contact Water Level Control Module with Relay Output - XCK-Y25-V Sensor, High and low liquid level control; When the liquid level in the container is too low, the low liquid level alarm signal sent by the low liquid level sensor is activated, triggering the C352 controller to close the relay and start the water pump.

Add liquid level; When the liquid level reaches a certain height, the high liquid level sensor sends a signal to the C352 controller, which deactivates the relay and automatically stops the water pump, thus completing a cycle.

This automatically controls the liquid level in the container and maintains a constant level.

Applications

Applications include automatic replenishment of water tanks, buckets, water towers, and other liquid containers, smart pump solenoid valves, fish tank live water control, automatic pumping of domestic wells, and automatic industrial equipment level monitoring.

Features

Input voltage: AC180V-250V 50/60Hz
Operating current: 110 mA operating current, 20 mA static current consumption
Load power: Resistive load below 1600W (overload or three-phase load must be installed with an AC contactor)
Alarm output: 800W (resistive load)
Dimensions: 115*95*40 mm

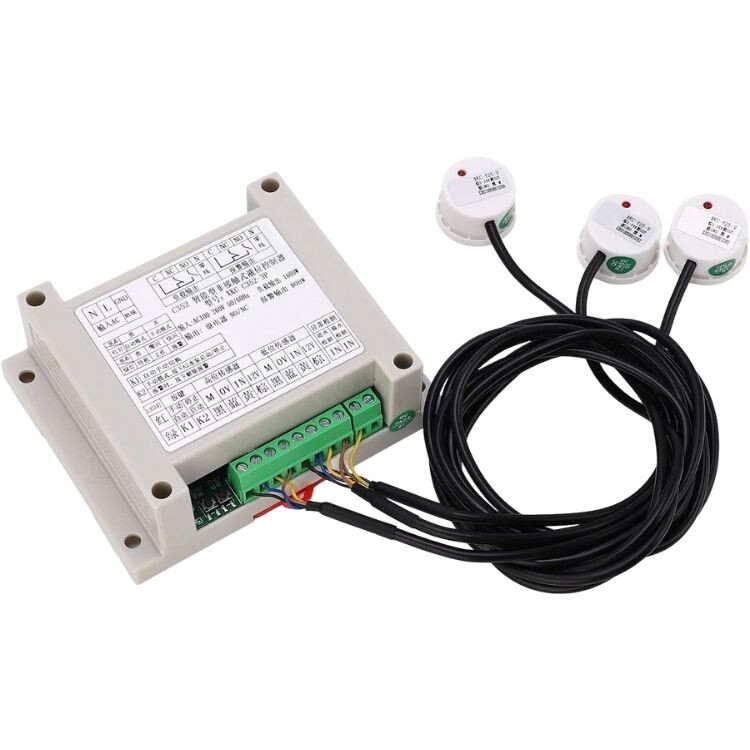

Package Contents

Liquid Level Controller
XKC-Y25-V Sensor x 3

Link

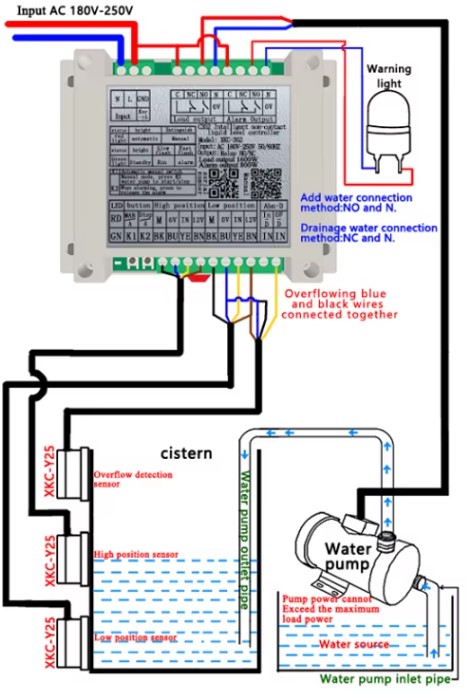

xkc-c352-wiring

Size

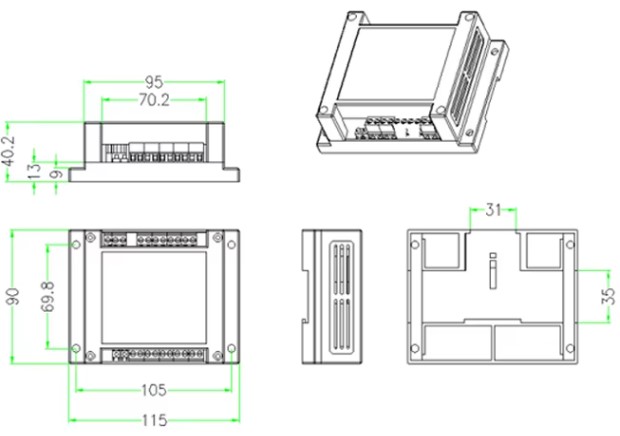

xkc-c352-dimensions
