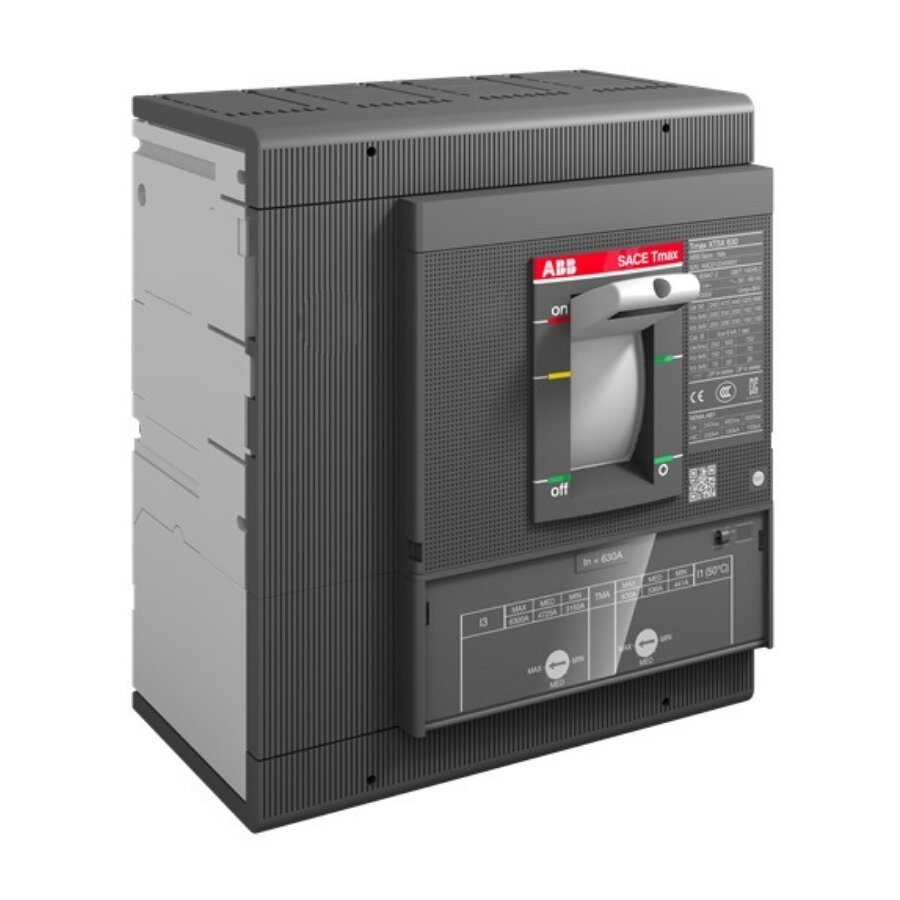

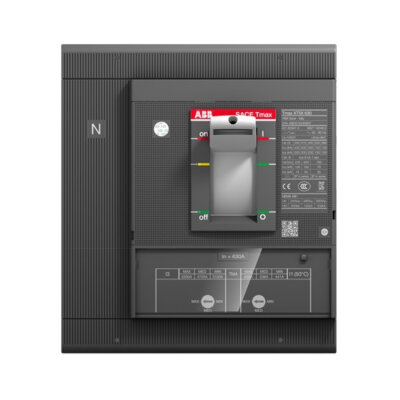

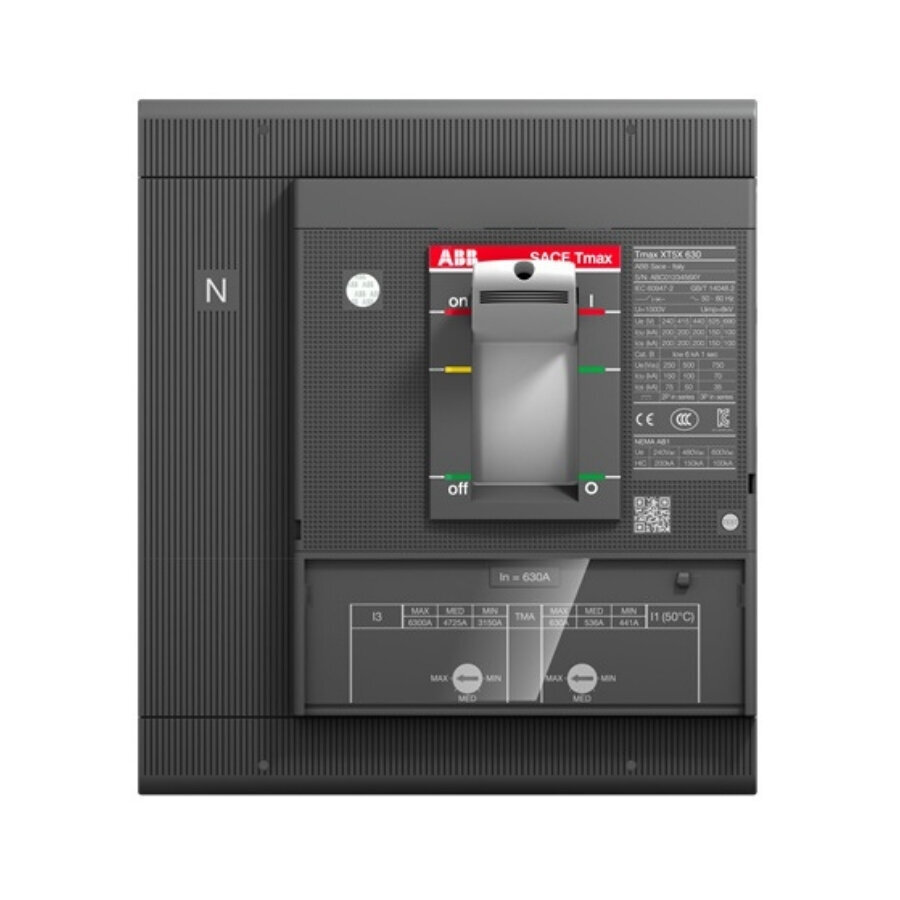

XT5X 630 TMA 630-6300 4p Fixed Molded Case Circuit Breaker

XT5X 630 TMA 630-6300 4p Fixed Molded Case Circuit Breaker

XT5X 630 TMA 630-6300 4p Fixed Molded Case Circuit Breaker.

Features

• Current Type: AC/DC
• Electrical Durability: 5000 cycles @ 60 cycles per hour
• Mechanical Durability: 20000 cycles @ 120 cycles per hour
• Number of Poles: 3P
• Power Loss: 47.8 W
• Rated Current (In): 630 A
• Rated Impulse Withstand Voltage (Uimp): 8 kV
• Rated Instantaneous Short Circuit Current Setting (Ii): 3150…6300 A
• Rated Insulation Voltage (Ui): 1000 V
• Rated Operating Voltage:

  • 690 V AC
  • 750 V DC
• Product Net Width:185 mm
• Product Net Height: 200 mm
• Product Net Depth / Length: 103.5 mm
