XY-LA02 DIY DC 8-24V Bluetooth BT 5.1 Audio Decoder Module

XY-LA02 DIY DC 8-24V Bluetooth BT 5.1 Audio Decoder Module

The XY-LA02 DIY DC 8-24V Bluetooth BT 5.1 Audio Decoder Module is a compact and advanced Bluetooth audio board designed for wireless audio transmission and high-quality audio decoding applications. Available with either the QCC5125 or QCC3034 Bluetooth chip, the module delivers high-quality analog audio output thanks to the PCM5102A DAC IC.

The QCC5125 version supports Bluetooth 5.1, while the QCC3034 version supports Bluetooth 5.0. Both versions support advanced audio codecs such as SBC, AAC, aptX, aptX Low Latency, and aptX HD.

In addition to these, the QCC5125 model offers LDAC support, enabling higher-bitrate wireless audio transmission.

Specifications

• DC Supply Voltage: 8-24V
• DC USB Type-C Power Supply: 5V DC
• Bluetooth Chip Options: Qualcomm QCC5125 / QCC3034
• DAC IC: PCM5102A (for QCC5125)
• Bluetooth Version: Bluetooth 5.1
• QCC3034 Bluetooth Version: Bluetooth 5.0
• QCC5125 Codec Support: SBC, AAC, aptX, aptX-LL, aptX-HD, LDAC
• QCC3034 Codec Support: SBC, AAC, aptX, aptX-LL, aptX-HD
• Maximum Sampling: 24-bit / 96 kHz (aptX HD: 24-bit / 48 kHz)
• Signal-to-Noise Ratio: Approx. 112 dB
• Dynamic Range: Approx. 112 dB
• Distortion: Approx. -93 dB
• USB Sound Card Function: Yes
• AUX Input: 3.5 mm
• Analog Audio Output: 3.5 mm
• Additional Audio Connections: XH2.54
• I2S Output: Yes
• Internal Bluetooth Antenna: Yes
• Open-Area Bluetooth Range: Approx. 50 m
• External Antenna Support: IPEX1 connector

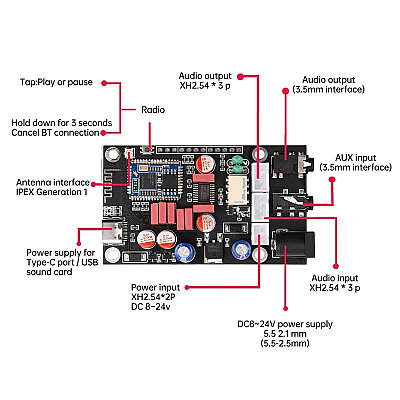

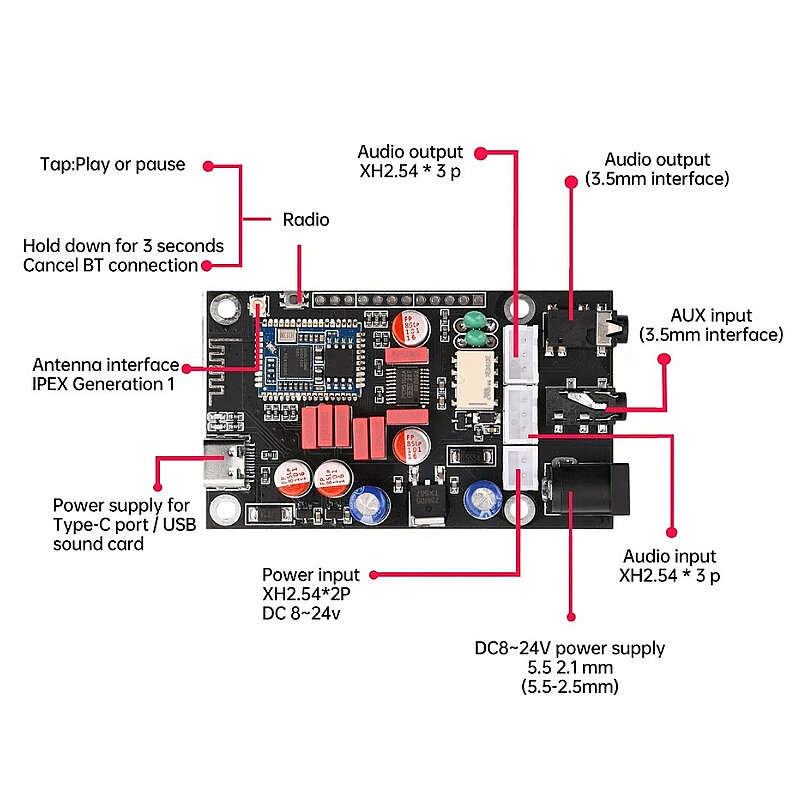

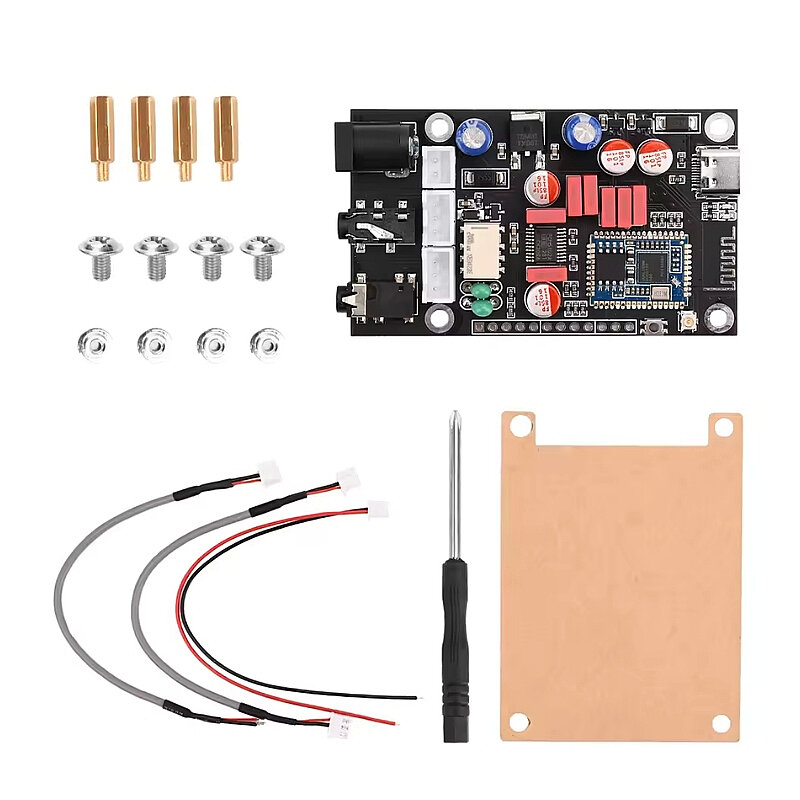

Package Contents

• 1 x Decoder Board

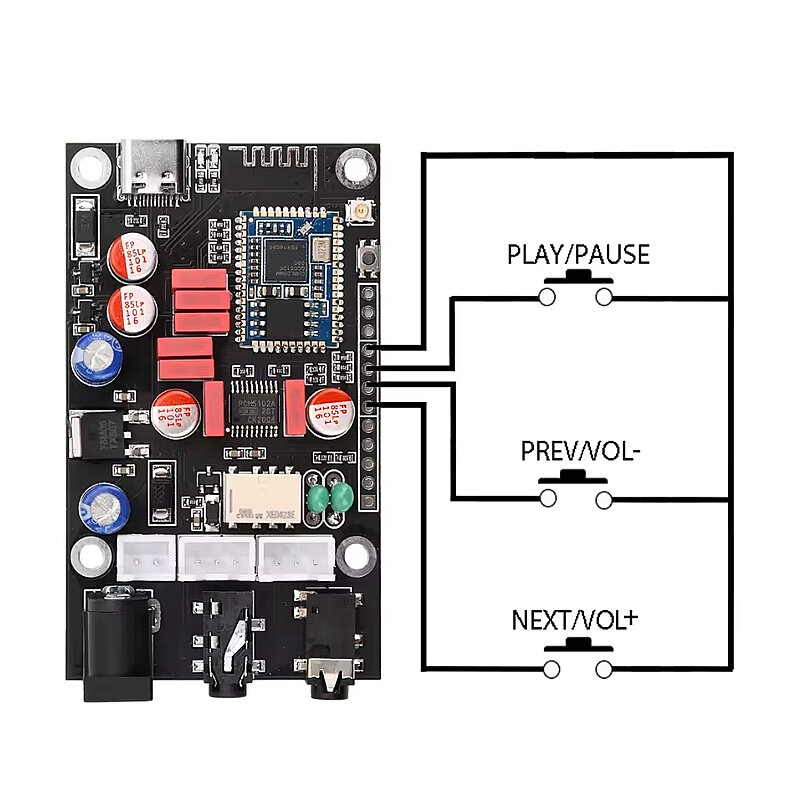

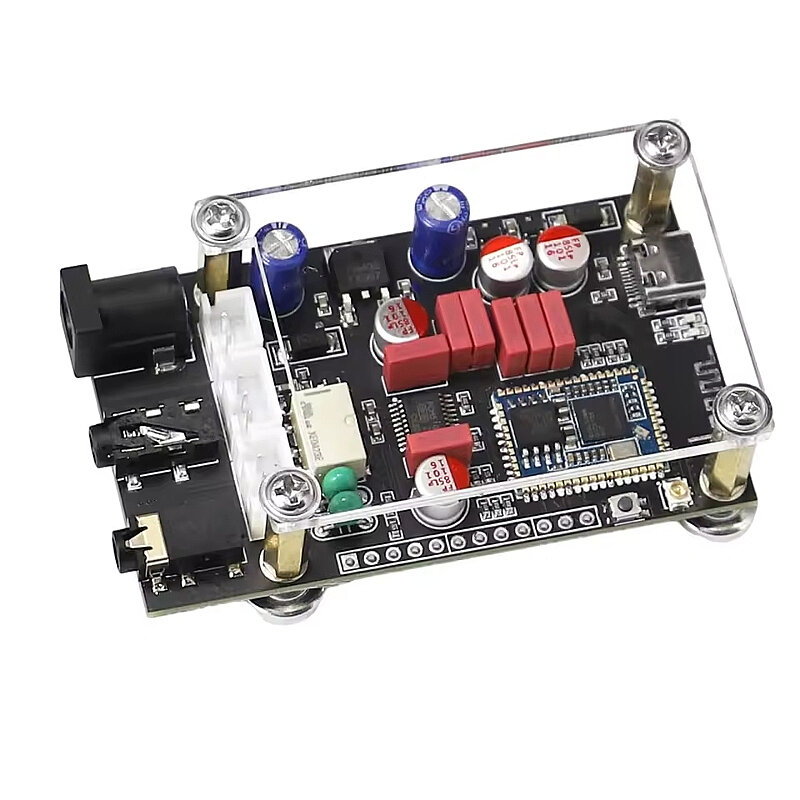

• 1 x Acrylic Case Kit (protective) with film)
• 1 x XH2.54-2P Power Cable
• 1 x XH2.54-3P Double-Ended Cable
• 1 x XH2.54-3P Single-Ended Cable
• 4 x Single-Threaded Copper Standoffs
• 4 x Screws
• 4 x Magnetic Feet
• 1 x Screwdriver
