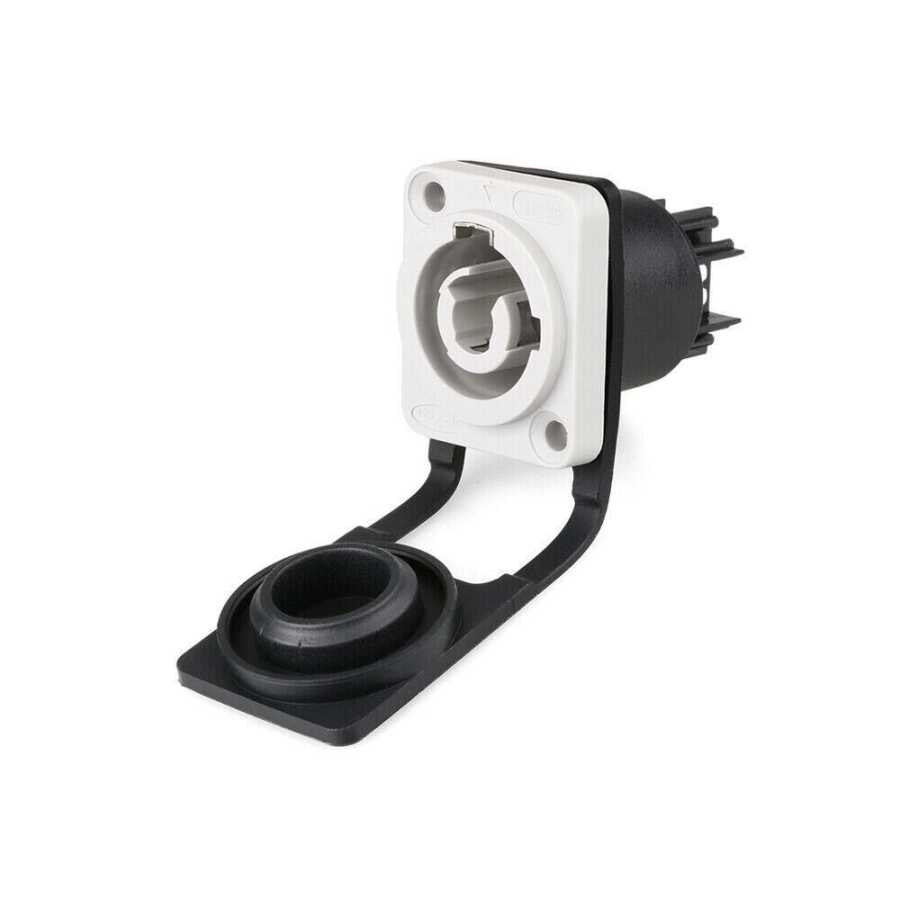

YF-24-C03SX-02-001 3-Pin IP67 Chassis Type Powercon Connector - Male

For powerCON, line, neutral and ground contact before mating It is a locking 3-conductor equipment AC connector with contacts. It replaces device couplers wherever a very robust solution is required together with a locking device to guarantee a safe power connection.

YF-24 Power connector, easy to operate and unique detachable power Due to the unique locking bolt that allows us to distinguish between the input and power input and the input and output of the device, it is also equipped with a power converter to convert between terminals and provides greater flexibility. It can be widely used in audio, video and power equipment.

YF- You can use it with 24-J03PE-02-001 3-Pin IP67 Powercon Connector - Female.

You can also use it as a speakon connector for interconnections from speakers to amplifiers.

Technical Specifications

3 contacts for line, neutral and feed safety ground
Quick and easy twist lock locking system
Extremely sturdy and reliable
Ergonomic design
User-friendly latch design for easy use
Protection Level: IP67
Cable Specifications: 2.5mm2 ~ 4mm2 /14~12AWG
Diameter Range: 8mm ~12mm
Rated Current: 20A
Operating Voltage: 500V
Withstand Voltage (AC.V)1min: 2500V
Contact Resistance: < 3mOhm
Insulation Resistance: > 500MOhm
Number of Pins: 3
Operating temperature:-40℃～80℃

YF-24 Series Waterproof Connector Datasheet
