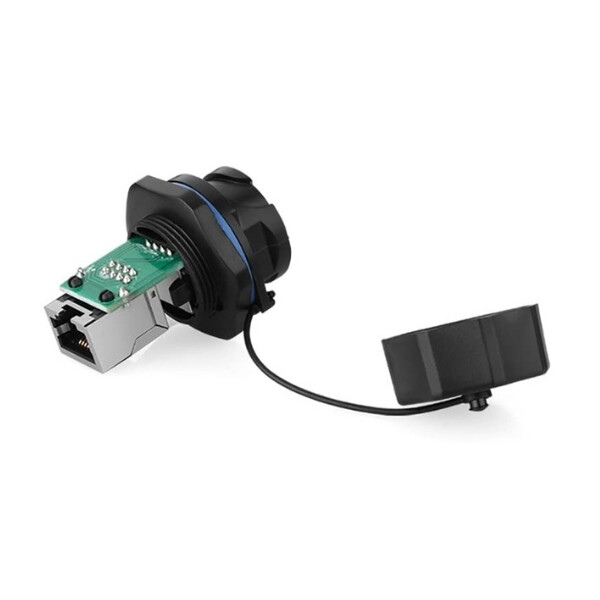

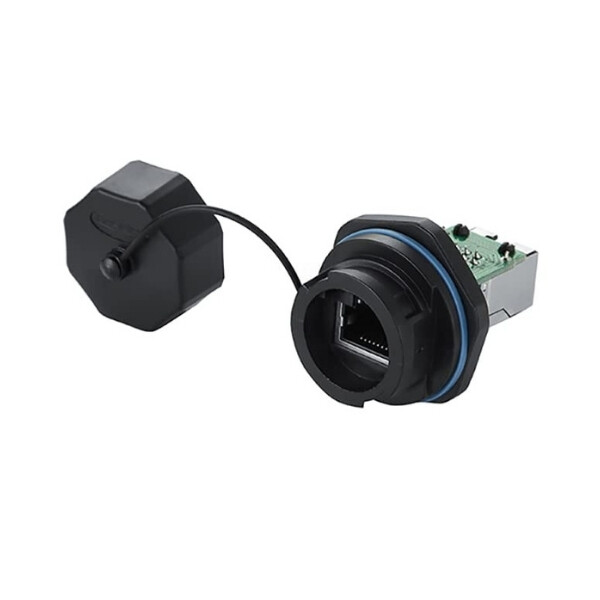

YT-RJ45-JSX-01-001 Waterproof Ethernet Connector - Female
YT-RJ45 series is an RJ45 plug used in signal applications. Suitable for 26-24 AWG cable. Rated for 1000V and 1.5A. It has a 1/4 bayonet connection and is used for industrial Ethernet in sound equipment, stage equipment, DMX lighting and other network applications.
YT-RJ45-CPE-01-001 Waterproof Ethernet Connector - Male is compatible with.
CNLINKO products can be produced with cables upon request. Special production is valid for bulk purchases. For special requests, you can send an e-mail to info@motorobit.com.
Technical Specifications
- High temperature and pressure resistance
- IP65 class when connected
- RJ-45 Female
- Number of Pins: 8
- Cable Diameter - 26-24AWG
- Rated Current - 1.5 Ampere
- Operating Voltage - 250V AC
- Contact Resistance - <30mOhm
- Withstand Voltage - 1000V
- Ingress Protection - IP65/67
- Operating Temperature - -40 C - 80 C
- Body Material - High Performance Plastic
- Flammability Rating - UL94-V0
