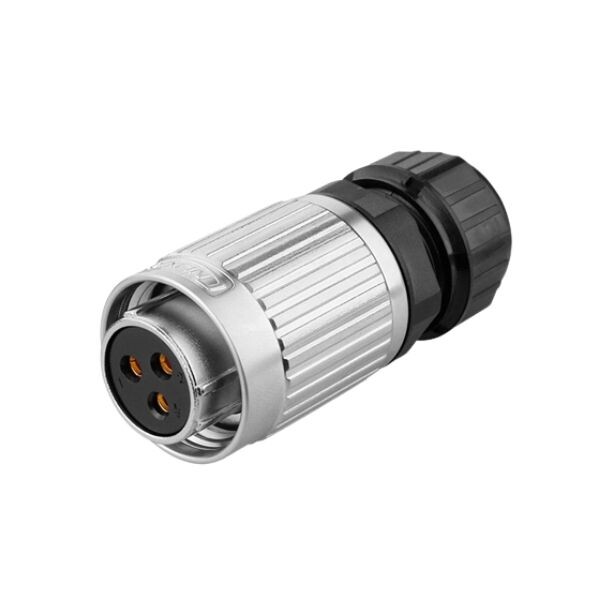

YW-20-J03PE-03-001 3-Pin Waterproof Connector - Female
The YW series connectors are made from a zinc alloy housing, which can effectively protect electronic signals. With a screw-lock design, it becomes the most reliable choice. Compact components, easy to use, fast and stable connections, and IP67 rated outdoor waterproof performance. Meets international industrial equipment quality standards and environmental protection requirements. The quick plug design allows for one-handed plug/unplug operation. The full zinc alloy housing provides good resistance to electromagnetic interference, and the screw-thread connection. The socket is mounted on the panel through a square flange, featuring a quick and easy nut locking system design, and should be soldered with the conductor tip of the contact part.
YW-20-C03SX-03-401 3-Pin Waterproof Connector - Male is compatible.
CNLINKO products can be custom made with wired production upon request. This is available for bulk special orders. For custom requests, you can email [email protected].
Technical Specifications
- High temperature and pressure resistance
- IP65/67 rating when connected
- Pin Count: 3
- Pin Diameter - 2.7 mm
- Cable Diameter - 9-13 mm
- Rated Current - 20 Amperes
- Operating Voltage - 500V AC
- Contact Resistance - <1mOhm
- Withstand Voltage - 2500V
- Ingress Protection - IP65/67
- Operating Temperature - -40°C to 80°C
- Body Material - Zinc Alloy
- Flammability Rating - UL94-V0
