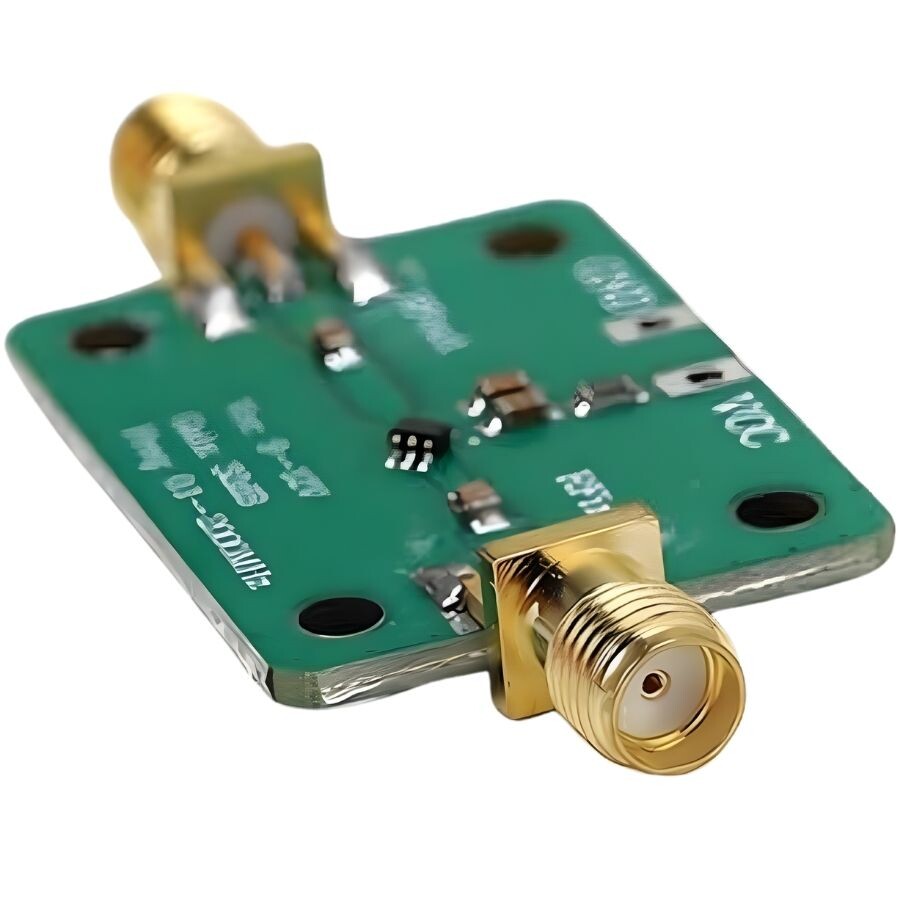

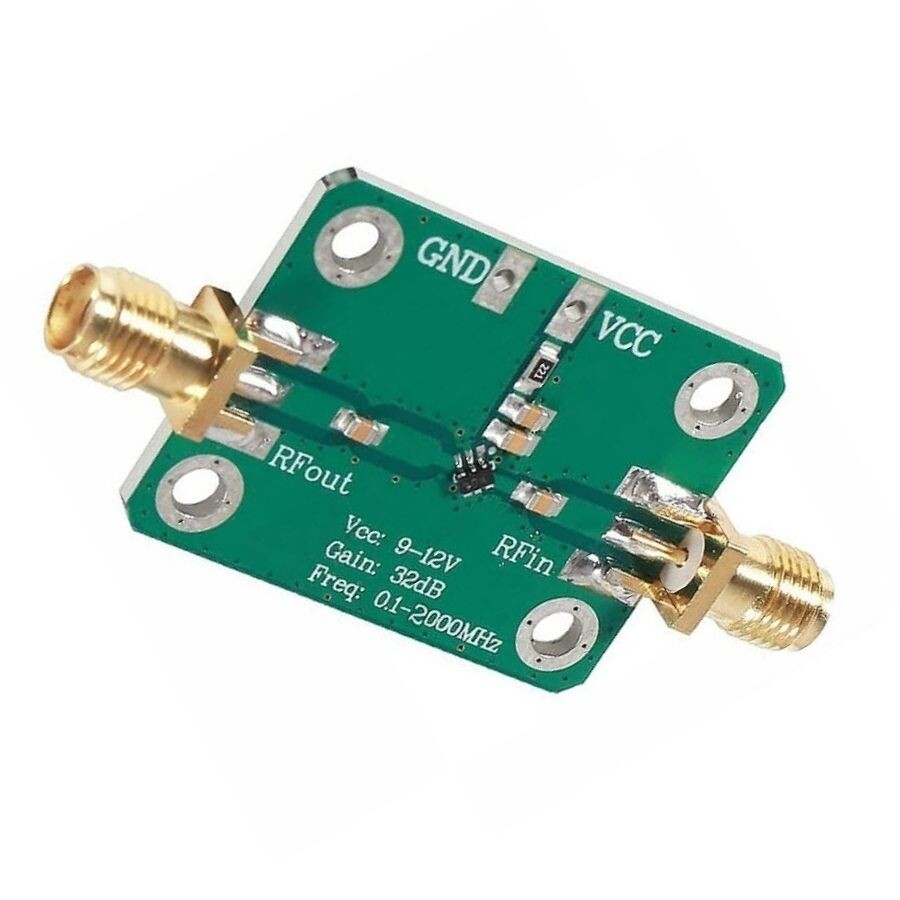

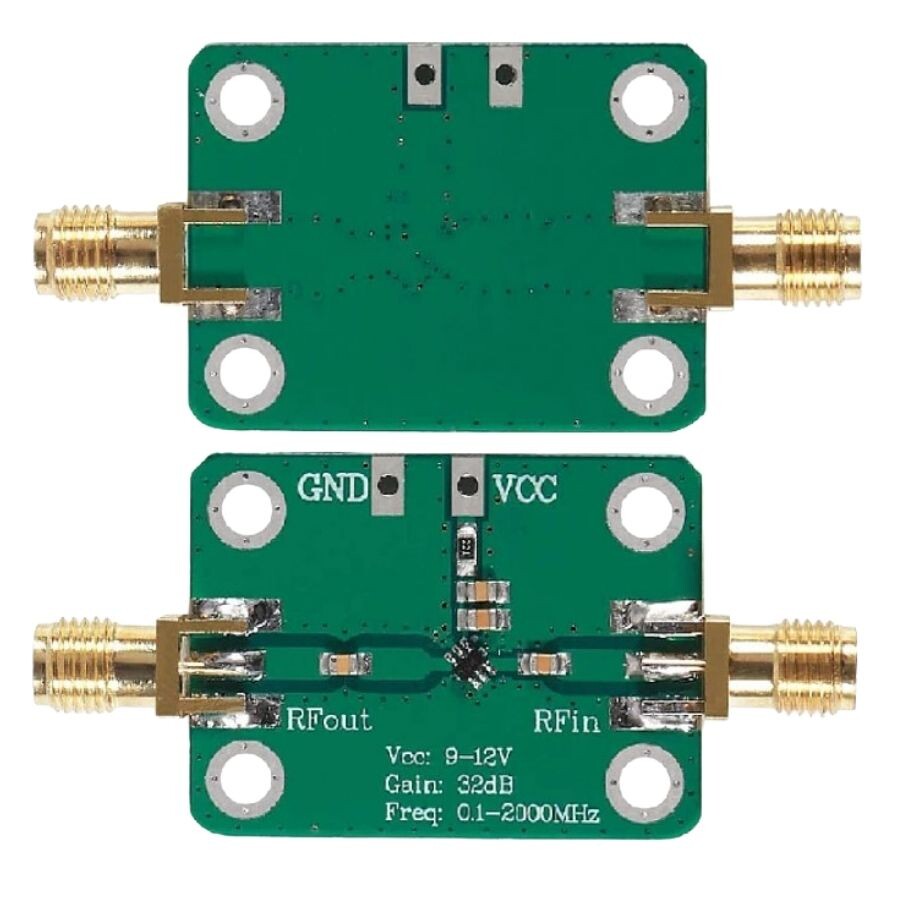

0.1-2000MHz 32dB Gain RF Wideband Amplifier Module

0.1-2000MHz 32dB Gain RF Wideband Amplifier Module

The 0.1-2000MHz 32dB Gain RF Wideband Amplifier Module is a versatile device designed to amplify RF signals over a wide frequency range from 0.1 MHz to 2000 MHz. It boasts a high gain of 32 dB, making it ideal for signal enhancement in applications such as radio transmission, communication systems, and signal testing. Its compact design allows for easy integration into a variety of electronic systems.

It supports low-noise amplification, ensuring minimal interference for clear signal transmission. This module operates with a 9-12 V DC input, making it compatible with standard power supplies. This durable and efficient module is perfect for both amateurs and professionals working with RF technology.

Features

• Supply Voltage: 9-12 V
• Operating Current: 27 mA
• Operating Frequency: 0.1-2000 MHz
• Gain: 32 dB Gain
  • F = 0.1 MHz, gain = 32 dB
  • F = 500 MHz, gain = 32 dB
  • F=1000MHz gain=32dB
  • F=1500MHz gain=32dB
  • F=2000MHz gain=32dB
  • F=2500MHz gain=30dB
  • F=3000MHz gain=29dB
• Maximum Output: 13dBm (20mW)
• Impedance: 50 ohm
• Connector: SMA-K (Female)
• Dimensions: 33x25mm
