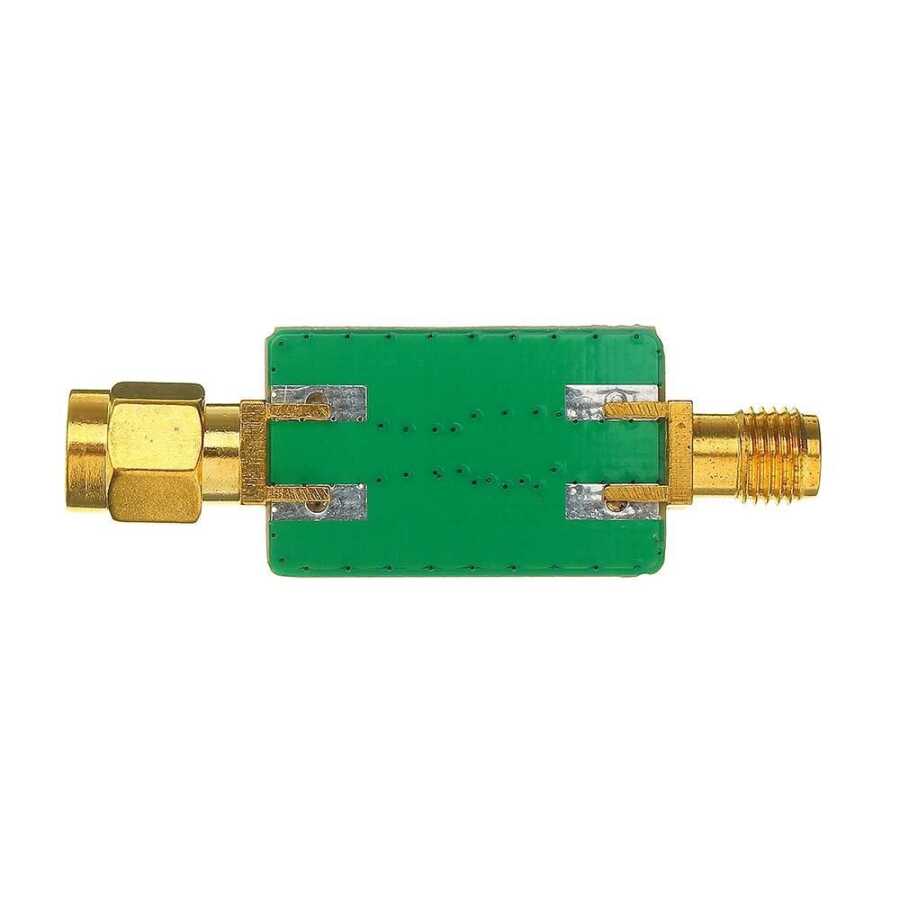

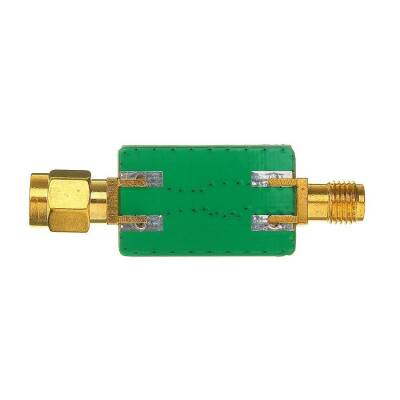

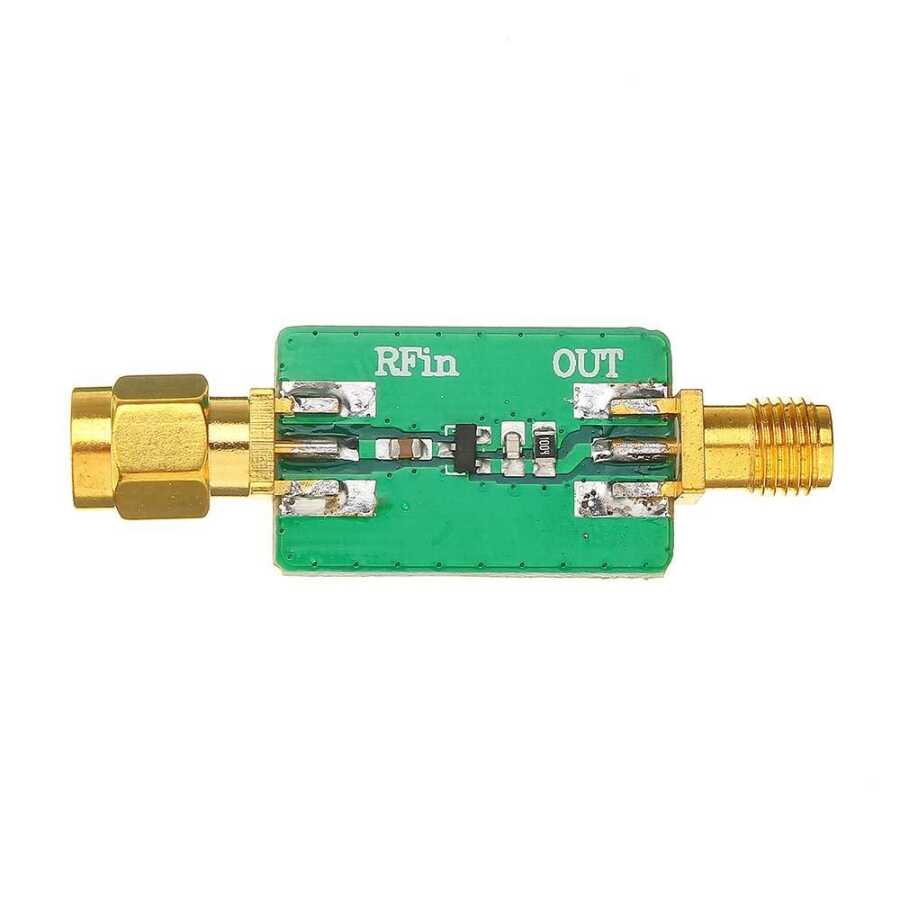

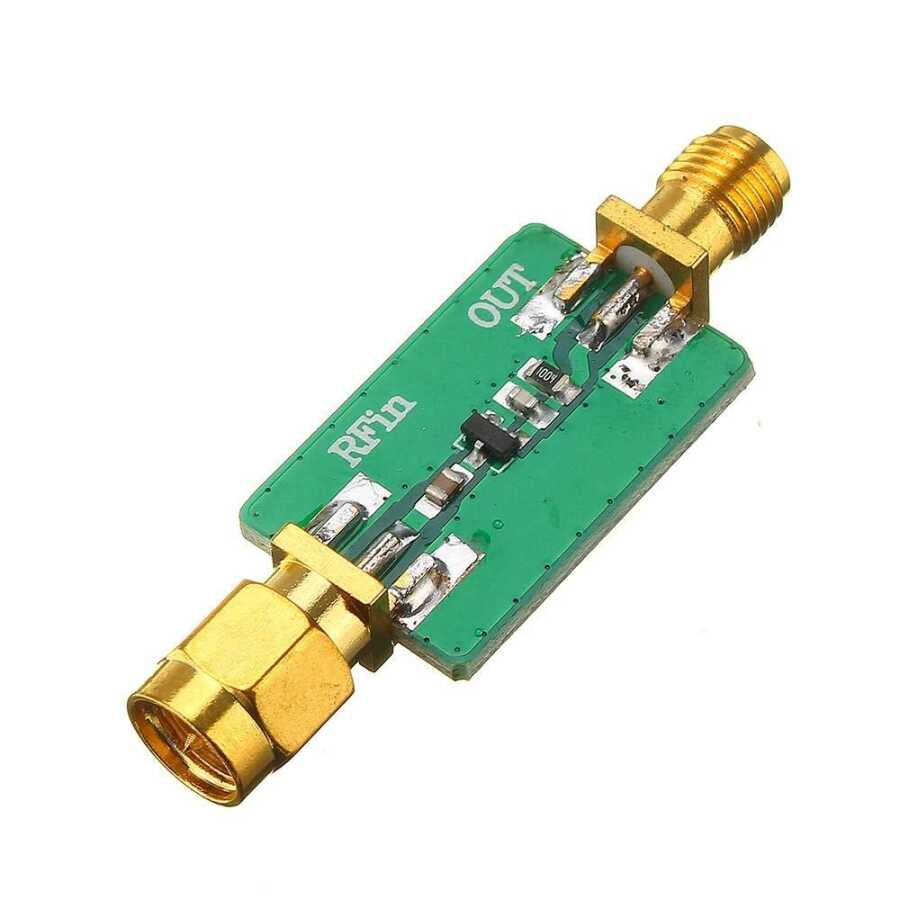

0.1-3200MHz 20dBm RF AM FM Radio Frequency Discharge Detector

AM signal detection, 10.7MHz AM signal detection, FM discriminative output detection, discharge signal, partial Can be used for discharge signal detection. It can also be used for pulse signal detection (such as wifi signal transceiver switch), wireless signal energy harvesting, radio generation (highly sensitive radio detection circuit in ore machine).

Uses a voltage doubler detector (consisting of two inverted microwave diodes) that is 6dB higher than a single-tube detector with high sensitivity (typically -30dBm, even -40dBm).

Technical Specifications

High Sensitivity: -30dBm to 40dBm

Wide Frequency Range: Not Less Than 3200MHz (Discharge Signal Detection)

Relevant Speed High: PS level (Pulse Detection)

Maximum Input: 20dBm (Burned Power) Linear Range <10dBm

Detector Output : Default is Positive

Operating Frequency: 0.1 - 3200MHz

RC filter: R=10K, C=1nF; (Two Parallel Components of Output Port)
