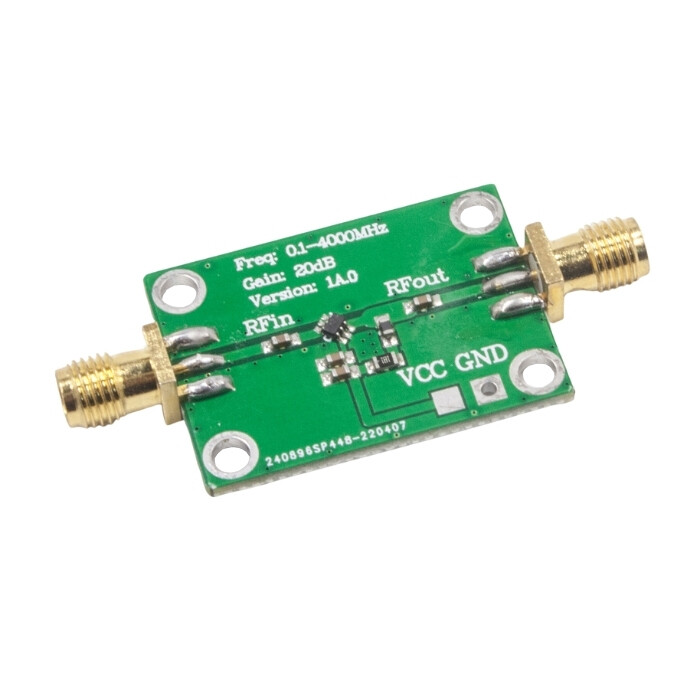

0.1-4000MHz 20dB Gain RF Broadband Amplifier Module

Amplifier, wide operating frequency range, stable gain, low power supply voltage, low current consumption etc. It has advantages. It can be used to amplify various RF signals. It has a wide frequency range of 0.1-4000MHz and wide dynamic range +20dB, the maximum output can be 100mV, and the noise factor is low and 0.55dB.



The radio receiver high-frequency or medium-frequency preamplifier, high-precision amplifier circuit of electronic sensing equipment, transceiver wireless communication board and tower-mounted amplifier (TMA), combiner, repeaters and distal/digital wireless broadband head equipment, etc.

Frequency range: 0.1--4000MHz

Amplification gain: 20dB (typical) maximum 23db

Supply voltage: 3.3--5.5V

Maximum power: +3dBm (3mW)@1dB compression point

Operating current: 14mA (3.3V); 25mA (5.0V)

System impedance: 50 ohm

RF connector: SMA standard female

Dimensions: 25 x 33 mm (excluding connectors)

Connection:

RFin: Signal input amplification

RFout: signal amplification output

VCC: positive power supply

GND: negative power supply

Amplify gain

Frequency value Typical gain (5.0V )

F=70MHz, gain=22dB

F=100Mhz gain=22dB

F= 200MHz gain=22dB

F= 500Mhz gain=22dB

F= 900MHz gain=22dB

F=1500MHz gain=22dB

F=2700MHz gain=22dB

F=3000MHz gain=21dB

F=3500MHz gain=21dB

F=4000MHz gain=19dB
