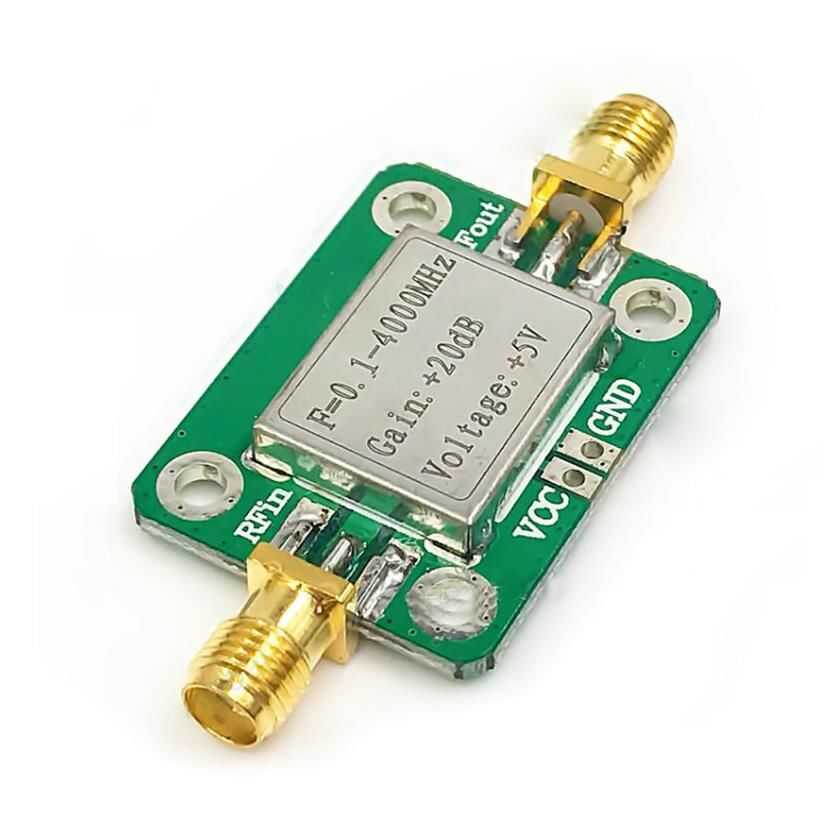

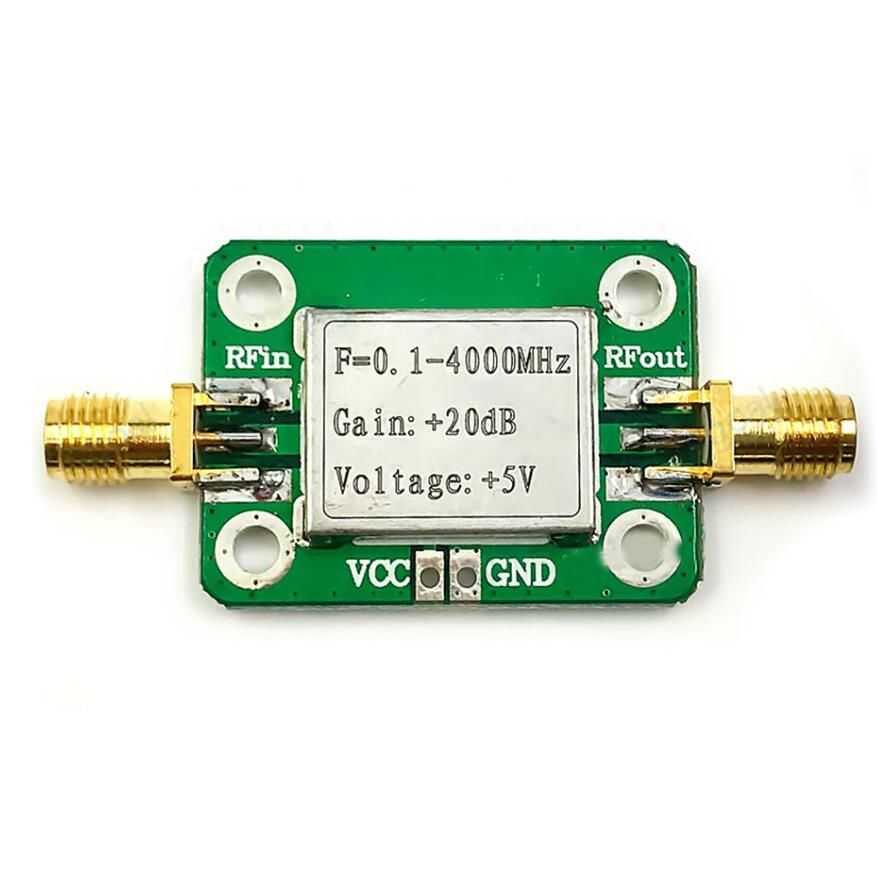

0.1-4000MHz 20dB Gain RF Broadband Amplifier Module

Amplifier, wide operating frequency range, stable gain, low power supply voltage and has the advantages of low current consumption.

It can be used in FM broadcasting, remote control receiver, cable TV, GPS, Beidou receiver, wifi' too, the receiver is on, etc. It can be used to amplify a variety of commonly used RF signals.

Specifications

Frequency Range: 0.1--4000MHz

Power Supply Voltage: 3.3--5.5VDC

Maximum Power: +3dBm (3mW) 1dB Compression Point

Operating Current: 14mA (3.3V); 25mA (5.0V)

System Impedance: 50Ω

RF Connector: SMA standard female

Amplification Gain

F= 70MHz, gain =22dB

F= 100Mhz gain=22dB

F= 200MHz gain=22dB

F= 500Mhz gain=22dB

F= 900MHz gain=22dB

F=1900MHz gain=22dB

F=2700MHz gain=22dB

F=3000MHz gain=21dB

F=3500MHz gain=21dB

F=3500MHz gain=20dB

F=4000MHz gain=19dB
