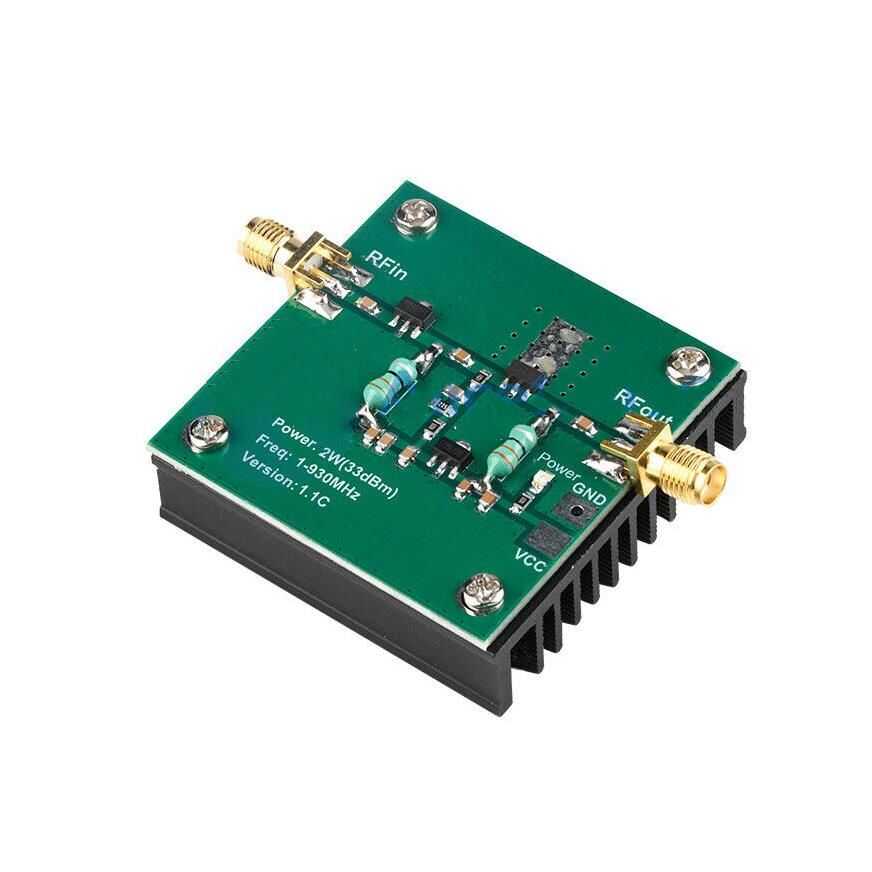

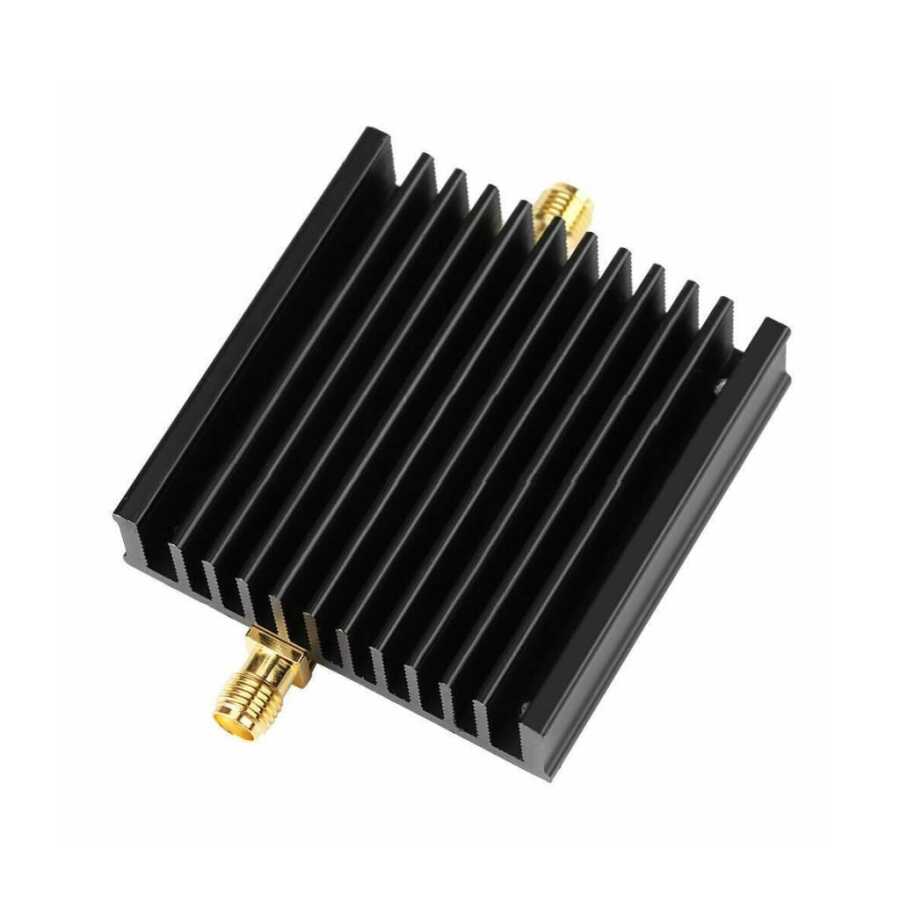

1-930MHz 2W RF Power Amplifier Module FM Radio Amplifier

Broadband RF power amplifier small, suitable for all kinds of radio transmission. Low frequency input 1mW maximum output power can be 2.0W, 512MHz maximum possible output 1.6W, 930MHz maximum possible output 1.0W, 1000MHz maximum possible output 0.8W.

FM short Suitable for using wave radio remote control, FM FM radio transmitter, amateur radio 135-175MHz, 380-470MHz radio transmitter.

Specifications

Operating frequency: 1-930MHz

Input power: 1mW (0dBm)

Maximum output: 2.0 W (33 dBm) low frequency end (10 MHz)

1.6 W (32 dBm) IF terminal (512 MHz)

1.0 W (30 dBm) high frequency end (930 MHz)

0.8 W (29 dBm) high frequency end (1000 MHz)

Operating voltage: 12V (DC)

Operating current: 300--400mA (determined by output power)

RF connector: standard SMA female

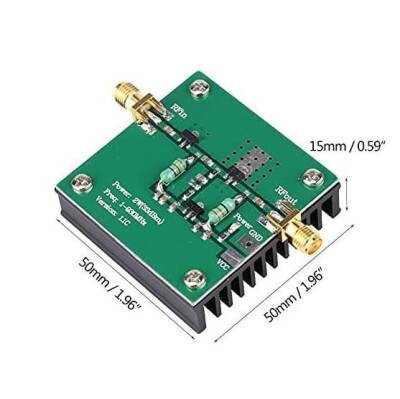

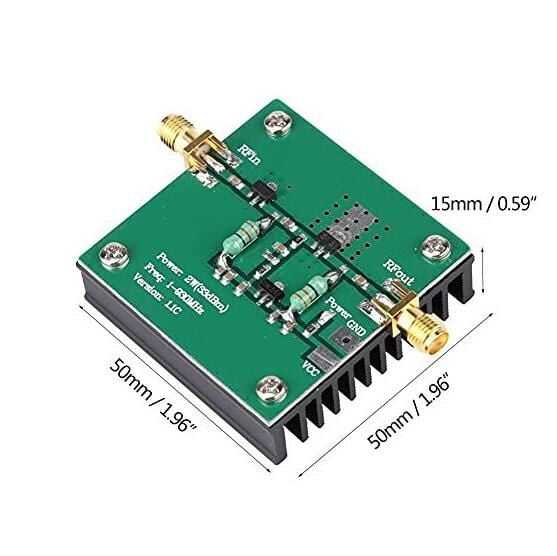

Dimensions: 50*50*15mm (length*width*height)
