12V 3A Touch-Activated LED Sensor for River Tables

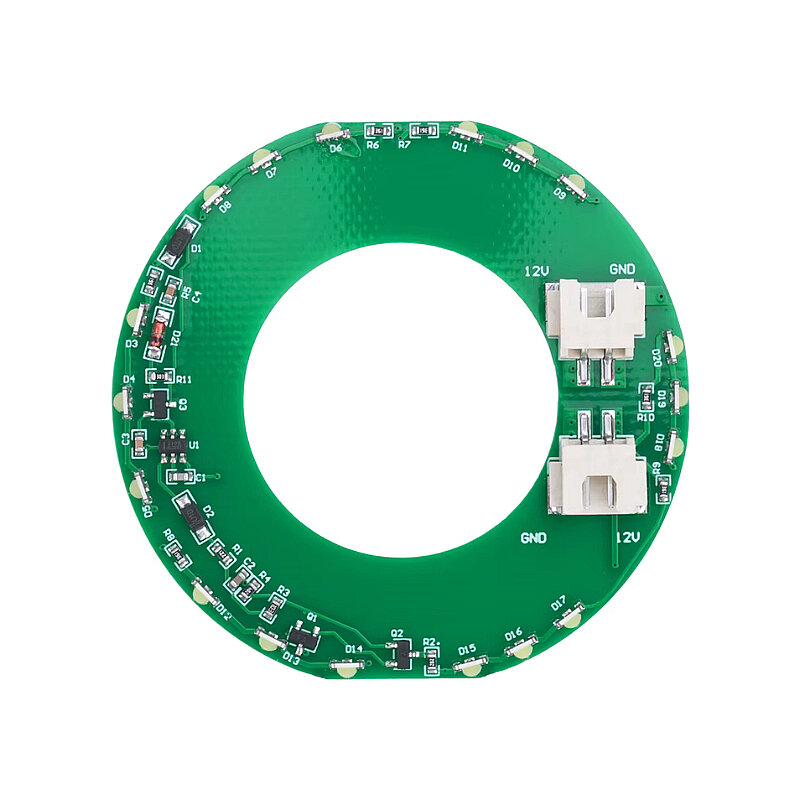

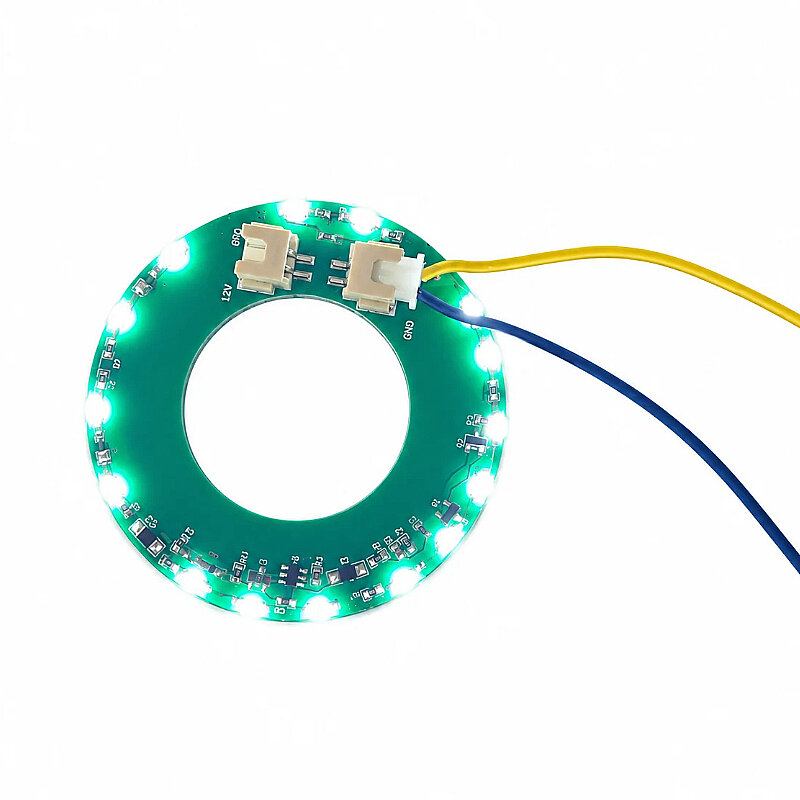

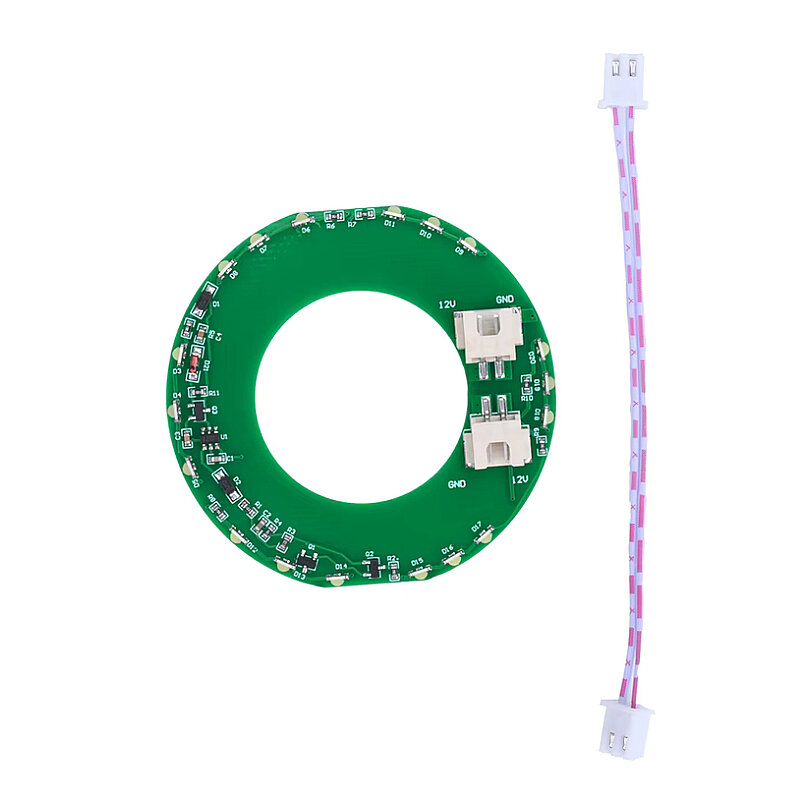

The 12V 3A Touch-Activated LED Sensor for River Tables consists of a ring-shaped sensor and an LED control board that enables the control of decorative LED lighting via touch through materials such as wood, acrylic, resin, and similar surfaces.
The sensor area can detect touch through insulating surfaces up to approximately 1.5 cm thick; detection sensitivity increases as the surface thickness decreases. Its circular design creates a wide detection zone beneath the table or decorative surface. It can be concealed behind materials such as wood, Plexiglass, acrylic, epoxy resin, stone, plastic, and cardboard.
The module operates in synchronous mode by default. The product also supports synchronous and "hold" operation options.
During standard operation, when a touch is detected, the output may remain active for approximately 10–15 seconds, and the output is deactivated approximately 0.5 seconds after the touch ends.Specifications
- Nominal Operating Voltage: 12V DC
- Input Range: 11.5–12.5V DC
- Maximum Operating Current: 3A
- Approximate Maximum Load Power: 36W @ 12V
- Detection Type: Capacitive touch
- Detection Thickness: Up to approximately 1.5 cm
- Sensitivity: Increases as the surface thickness decreases
