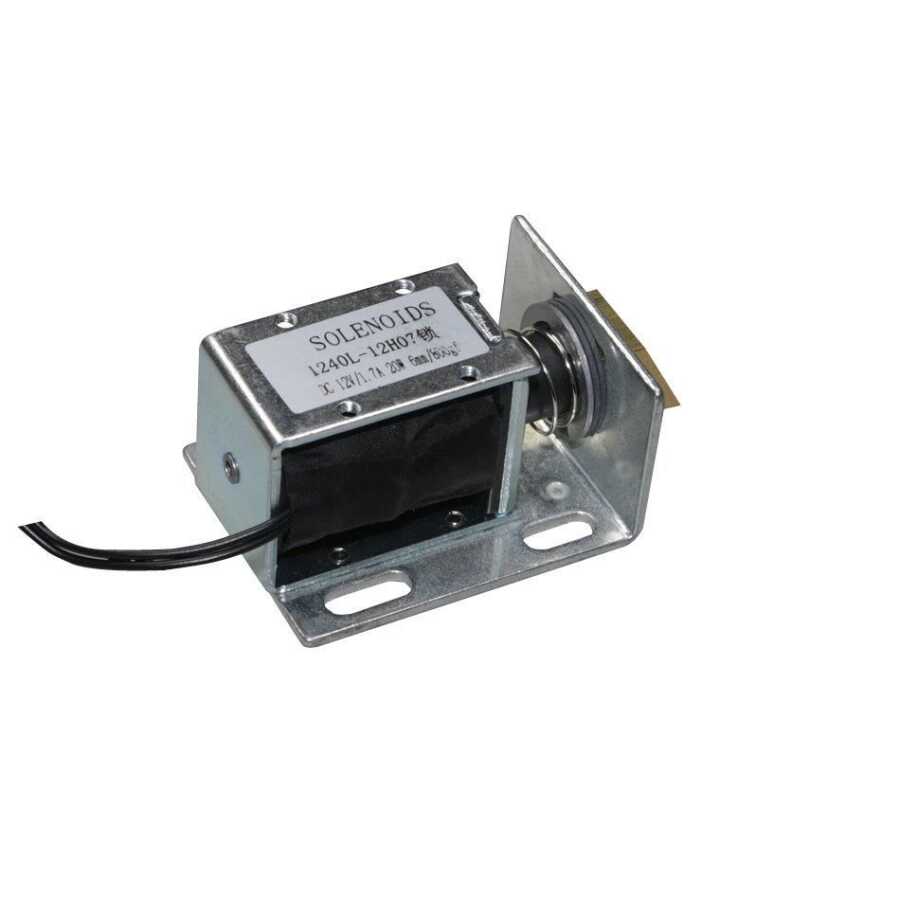

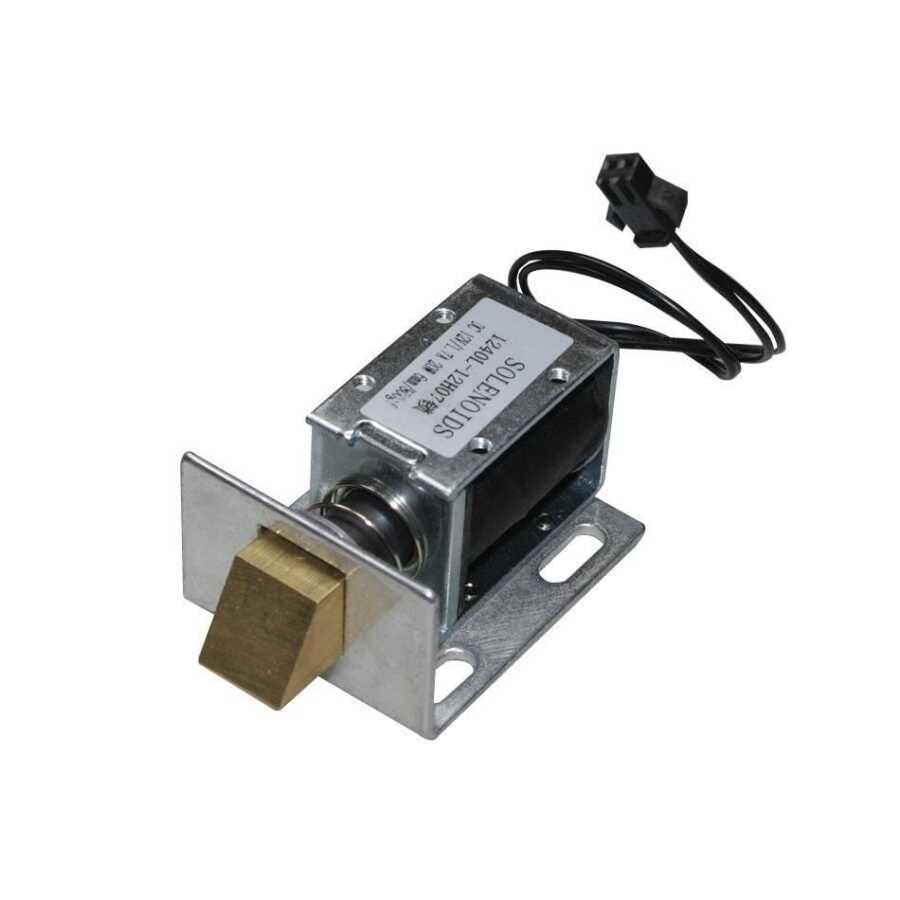

12V Solenoid Coil 1240L-12H07
It is a solenoid coil with 12v supply value suitable for use in door lock projects and opening and closing operations. When voltage is applied, the lock tab on the product is pulled in. It is released when the voltage is cut off. Tongue length is 14mm and is fixed to 9mm mobility.
Dimensions:
- Case Dimensions:28 x 22.5mm
- Length: 66mm
- Stroke Length: 9mm
- Language length: 14mm
Technical Specifications:
- Operating Voltage: DC 12V
- Operating Current: 1.7 A
- Weight Capacity: 10mm/300gf
- Power: 20W
