2.23 inch 128x32 Raspberry Pi Oled LCD Display

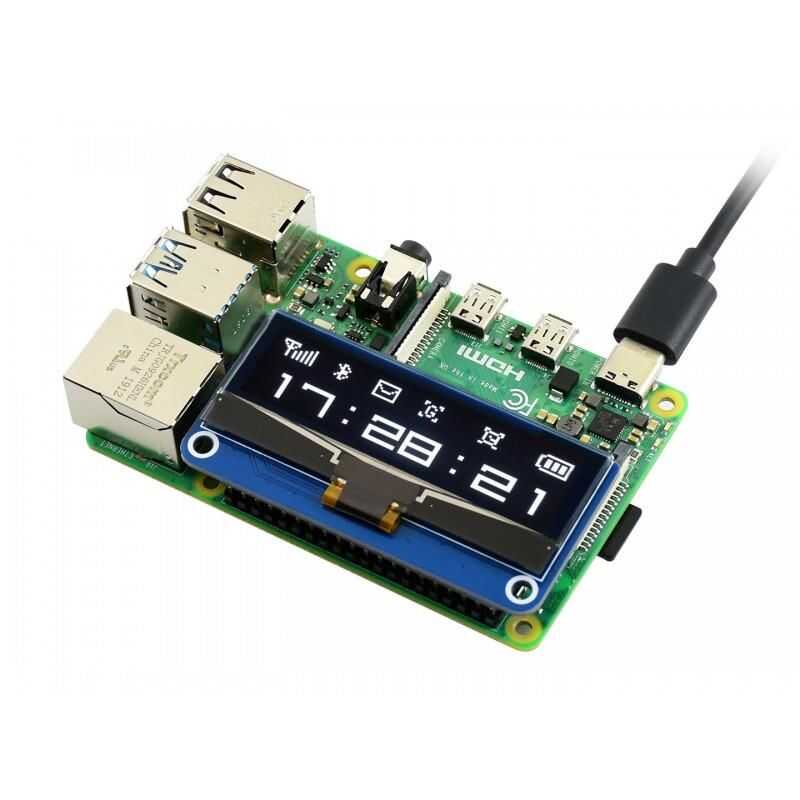

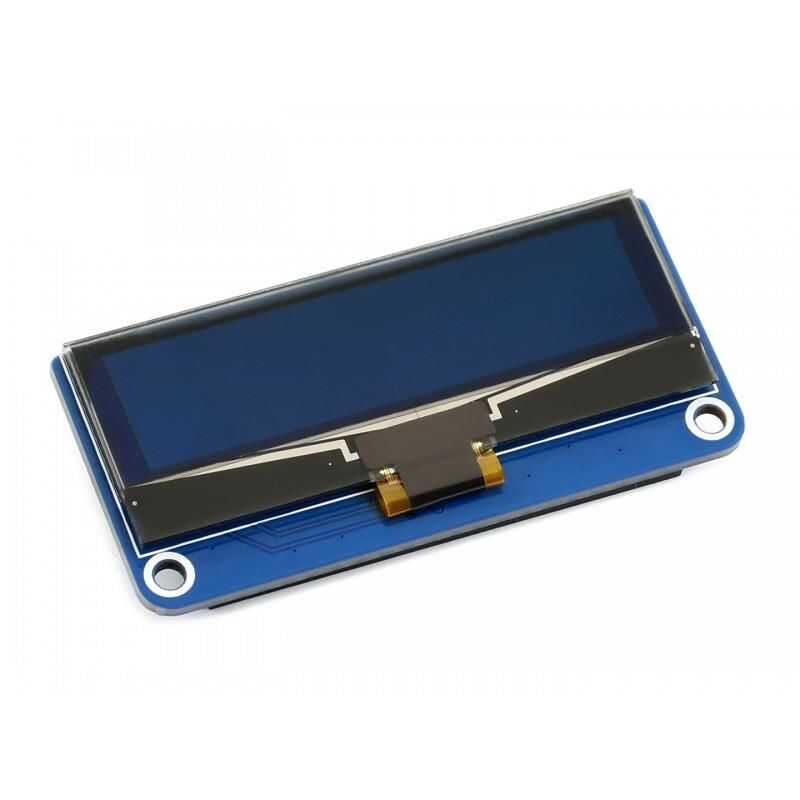

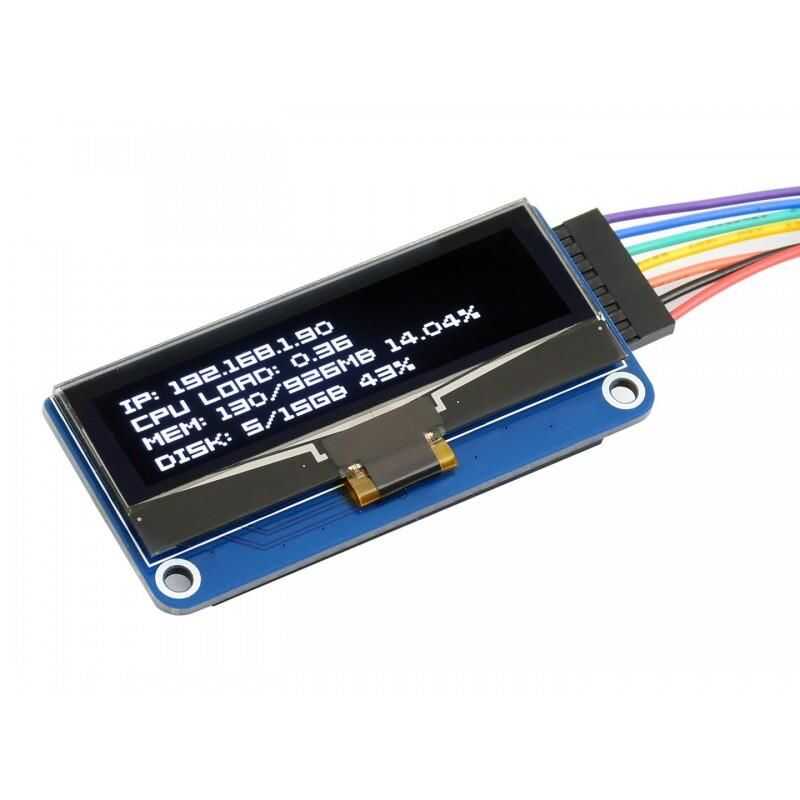

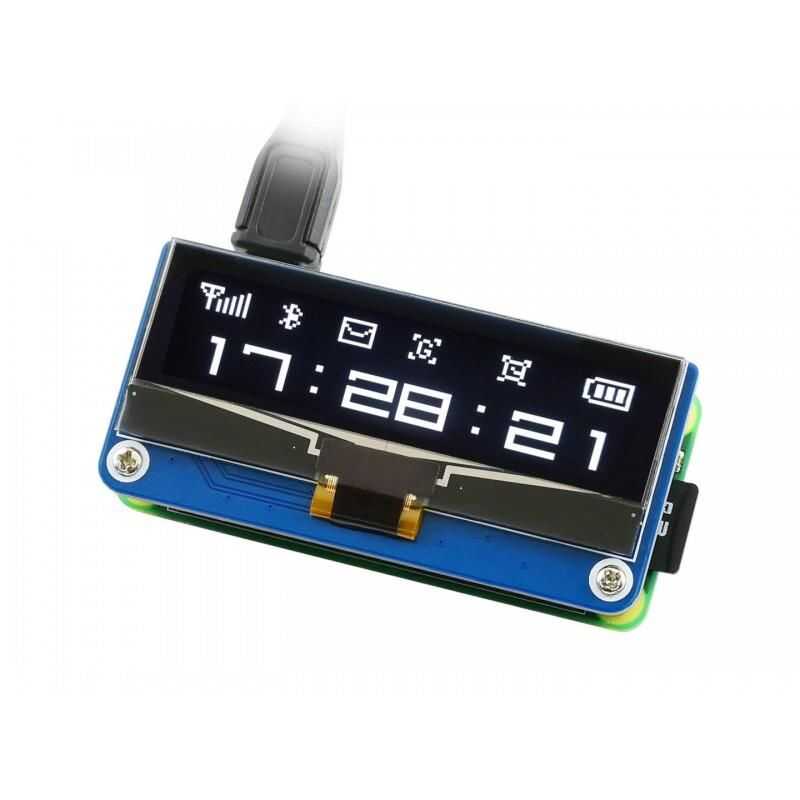

2.23 inch 128x32 Raspberry Pi Oled LCD Display for Raspberry Pi, 2.23 inch diagonal, 128 × 32 pixels, with embedded SSD1305 driver, communication via SPI or I2C interface It is an OLED display HAT.

Specifications :

• Operating Voltage : 3.3-5V
• Resolution: 128x32
• Display Color: White
• Viewing Angle: >160°
• Driver: SSD1305
• Interface: SPI/I2C/ OLED
• Pixel size: 0.41 mm x 0.39 mm
• Operating Temperature Range: -40~70℃

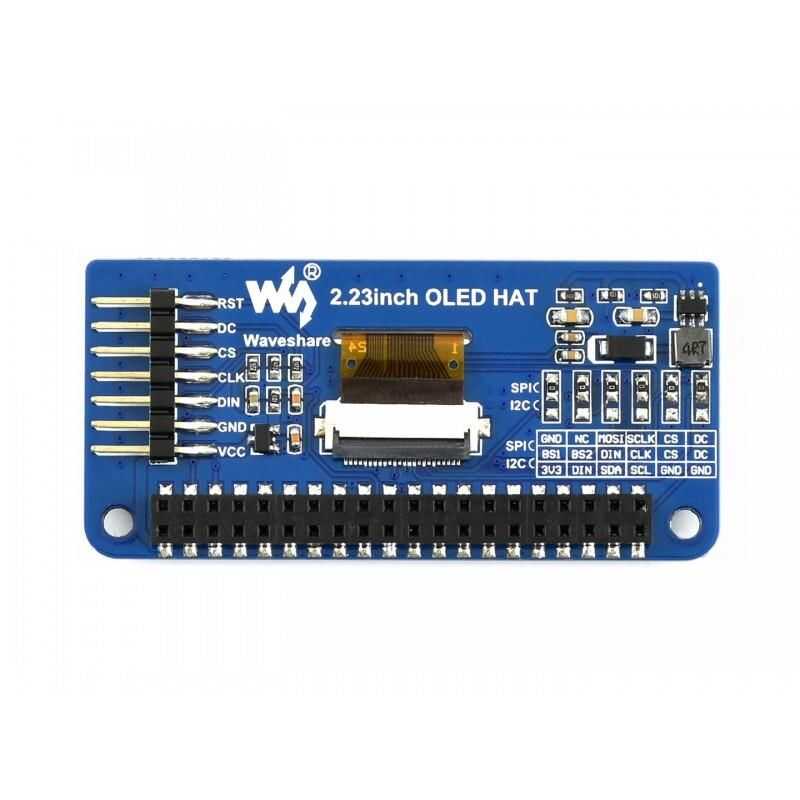

• VCC: Power input (3.3V/5V)
• GND: Ground
• DIN: Data input
• CLK: Clock input
• CS: Chip select (Low active)
• DC: register / Data selection (SPI)
• RST: Reset (Low active)
