2.4'' ILI9341 Touch LCD Screen SPI 240x320

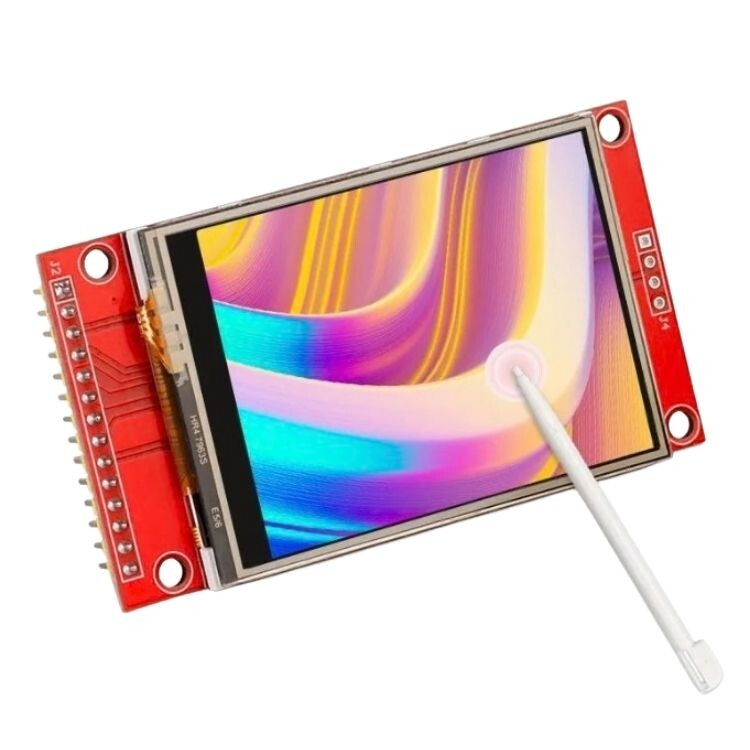

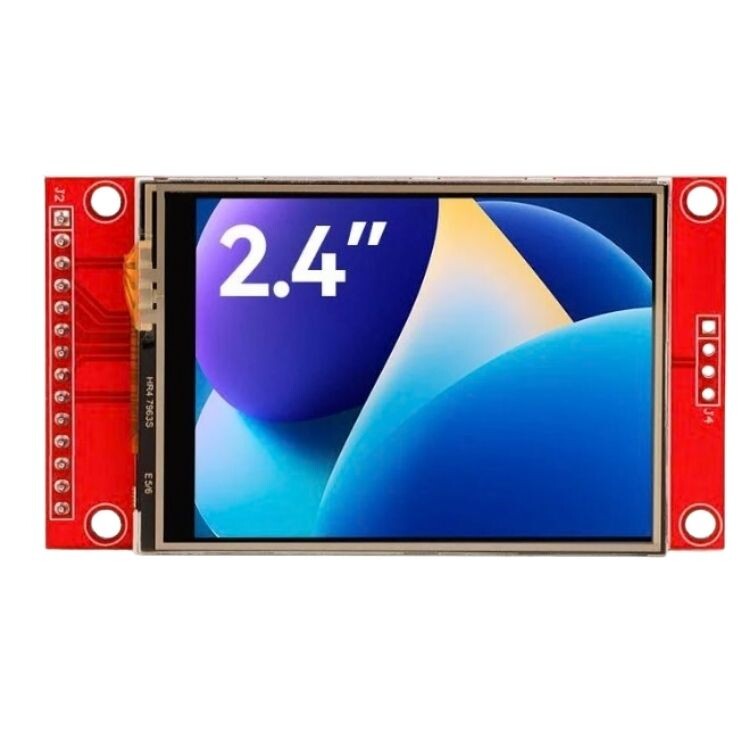

2.4'' ILI9341 Touch LCD Screen SPI 240x320. This 2.4-inch color screen module boasts rich colors and touch functionality with its 320x240 resolution and 16-bit RGB 65,000 color display. It uses the SPI serial bus interface and only requires a few inputs/outputs to operate the display, making integration and development easy.

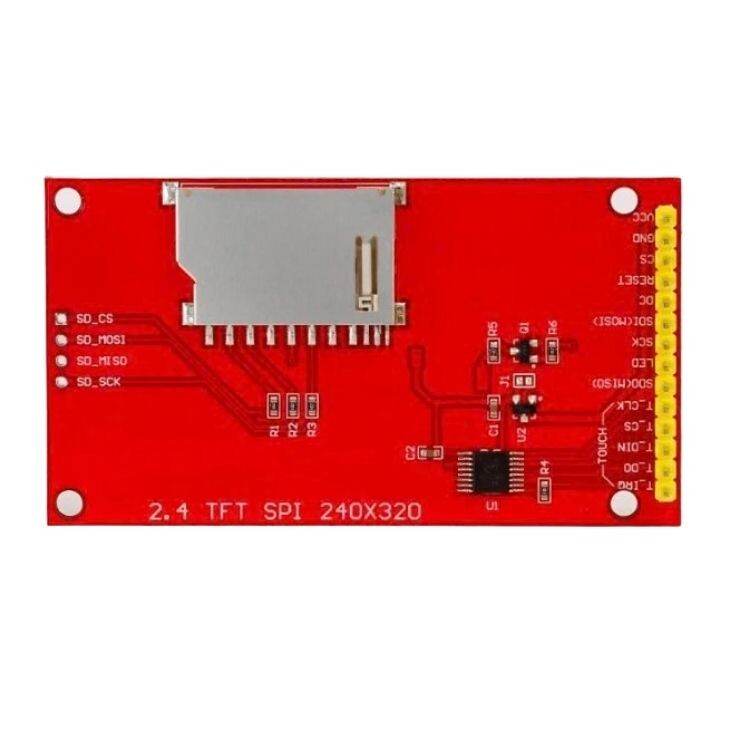

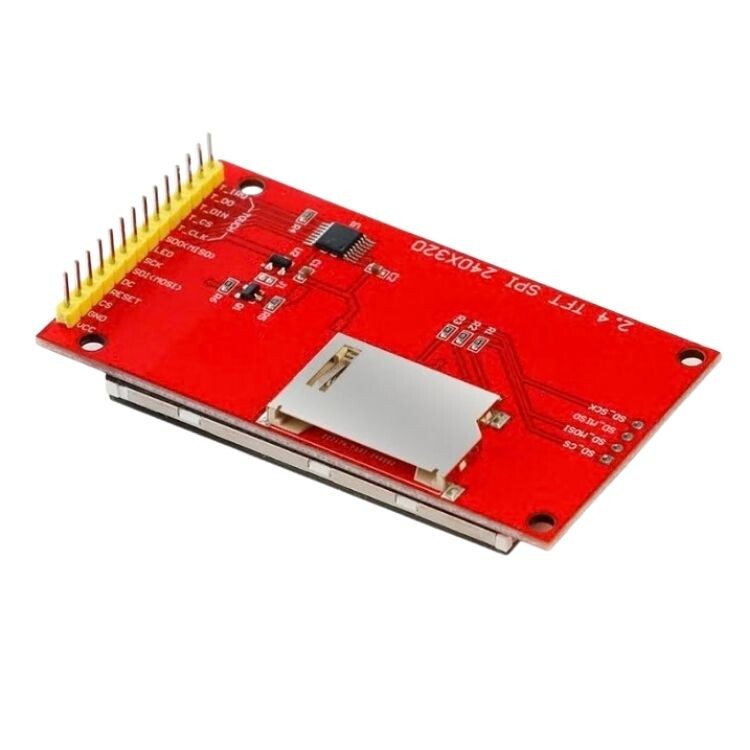

The module comes with an SD card slot, making it easy to expand storage space to meet various needs.
*2.4-inch color screen, supports 16BIT RGB 65K color display, displays rich colors
*320X240 resolution
*Touch function support
*Support SD card function expansion
*320X240 resolution
*Touch function support
*Support SD card function expansion
Technical Specifications
- Power: +3.3 / 5 VDC
- Current: <100mA
- Display Type: 2.4" TFT" color LCD
- Driver Integrated Circuit: ILI9341
- Colors: 65K
- Resolution: 240 x 320 pixels

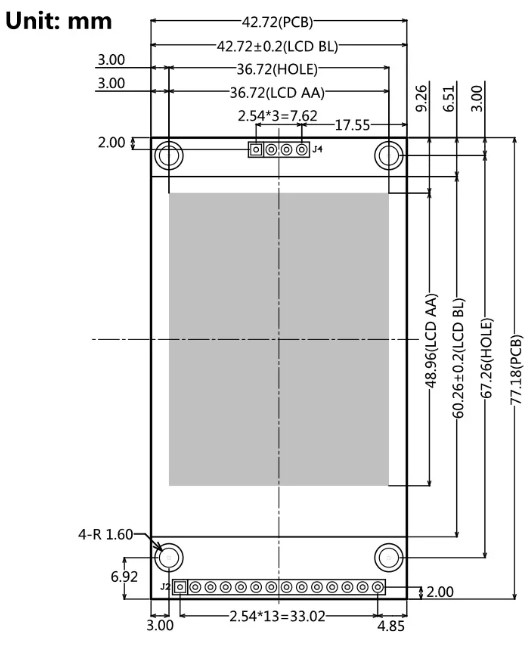

- Active Area: 36.72x48.96mm
- Module Size: 77.18x42.72mm
- Operating Temperature: -20°C ~ +60°C
- Storage Temperature: -30°C ~ +70°C
Size
