2.4" ST7789 Touch LCD Display SPI 240x320

2.4" ST7789 Touch LCD Display SPI 240x320

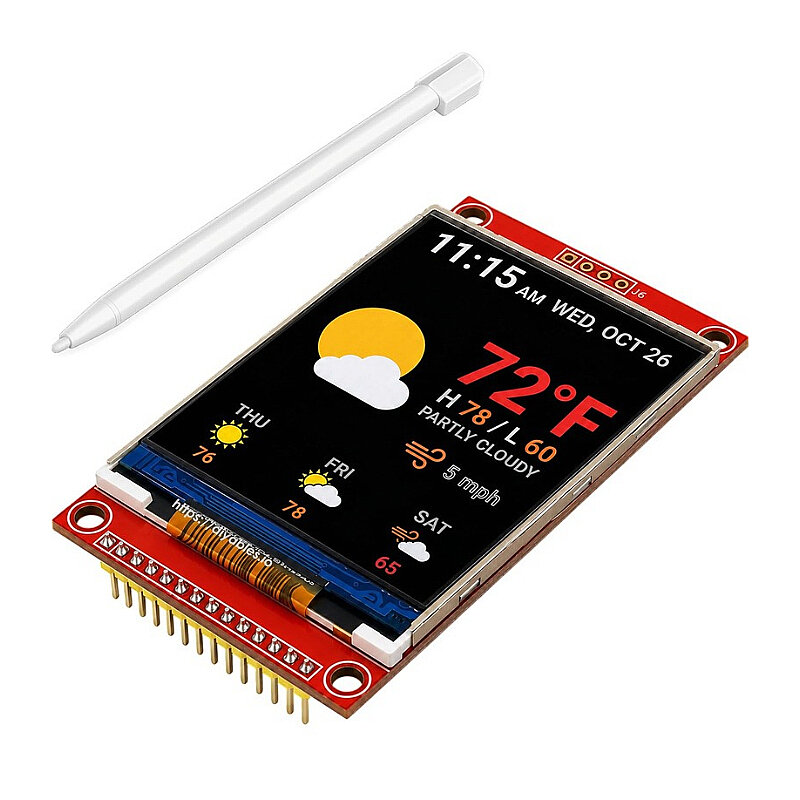

The 2.4" ST7789 Touch LCD Display (SPI, 240x320) is a compact display module designed for displaying color graphics, text, icons, and user interfaces in microcontroller and embedded system projects.

Featuring a QVGA resolution of 320x240 pixels and support for 65K colors, the display ensures that graphics and text appear vivid and sharp. It utilizes the widely used ST7789 controller IC as its display driver.

The module communicates with the microcontroller via a 4-wire SPI interface.

The fact that the SPI interface requires few GPIO pins simplifies connectivity, especially in projects based on ESP32, ESP8266, Arduino, and Raspberry Pi.

Specifications

• Display Color: RGB 65K colors
• Touch: Yes
• Display Size: 2.4 inches
• Type: TFT
• Driver IC: ST7789
• Resolution: 320x240 (pixels)
• Module Interface: 4-wire SPI interface
• Active Area (AA): 36.72 x 48.96 mm

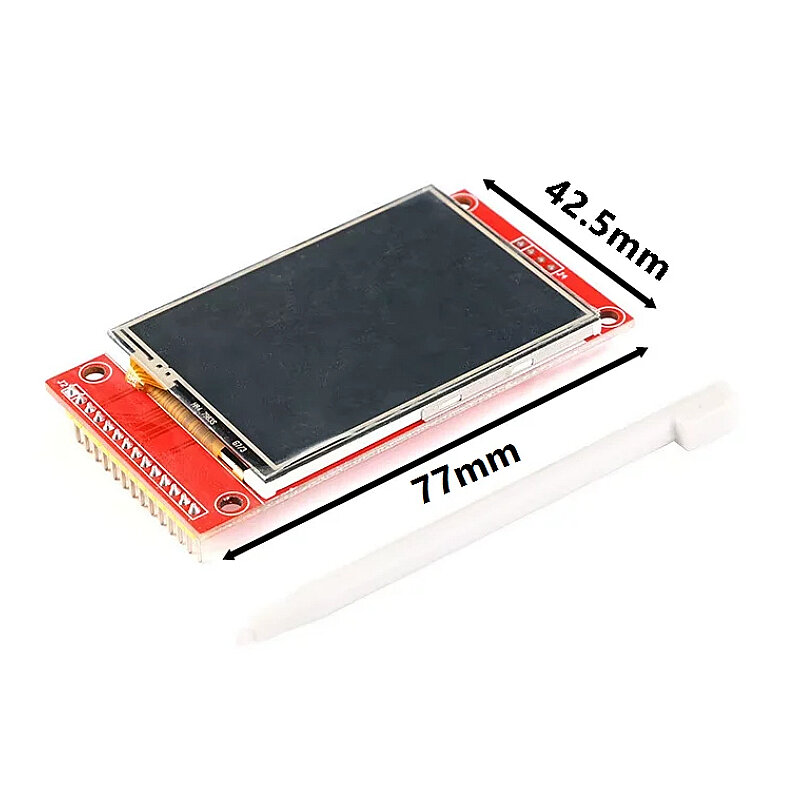

• Module PCB Size: 77.18 x 42.72 mm
• Operating Temperature: -20°C ~ 60°C
• Storage Temperature: -30°C ~ 70°C
• VCC Power Voltage: 3.3V ~ 5V
• Logic I/O Port Voltage: 3.3V (TTL)
