2.8'' Touch LCD Shield ILI9341 MRB2801

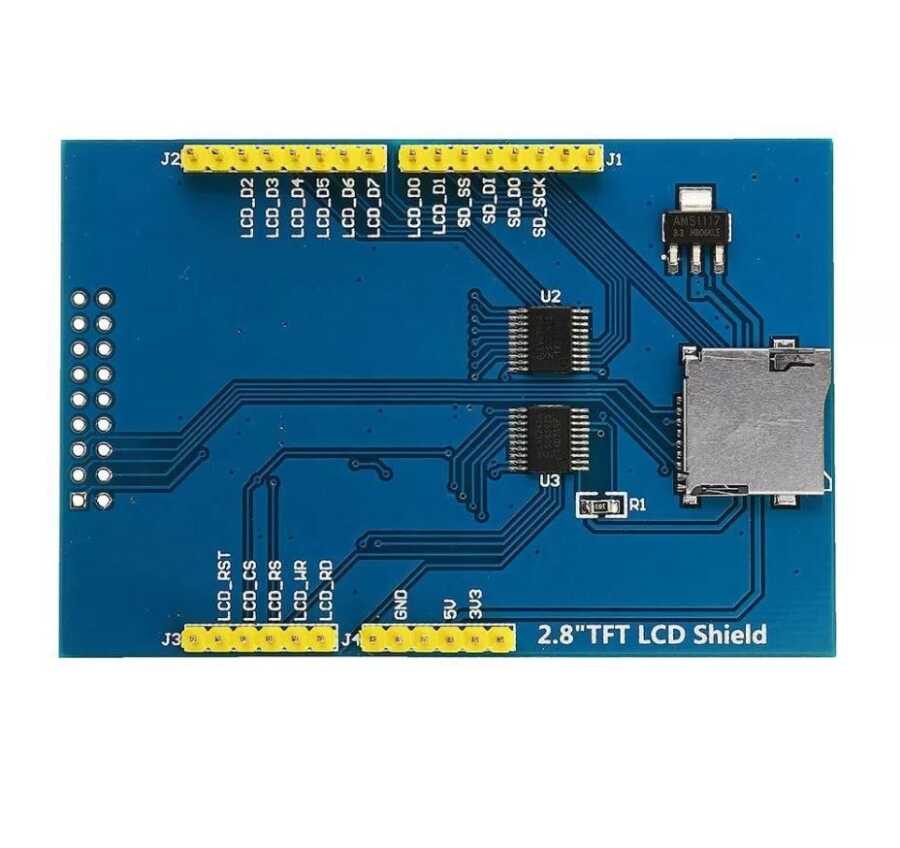

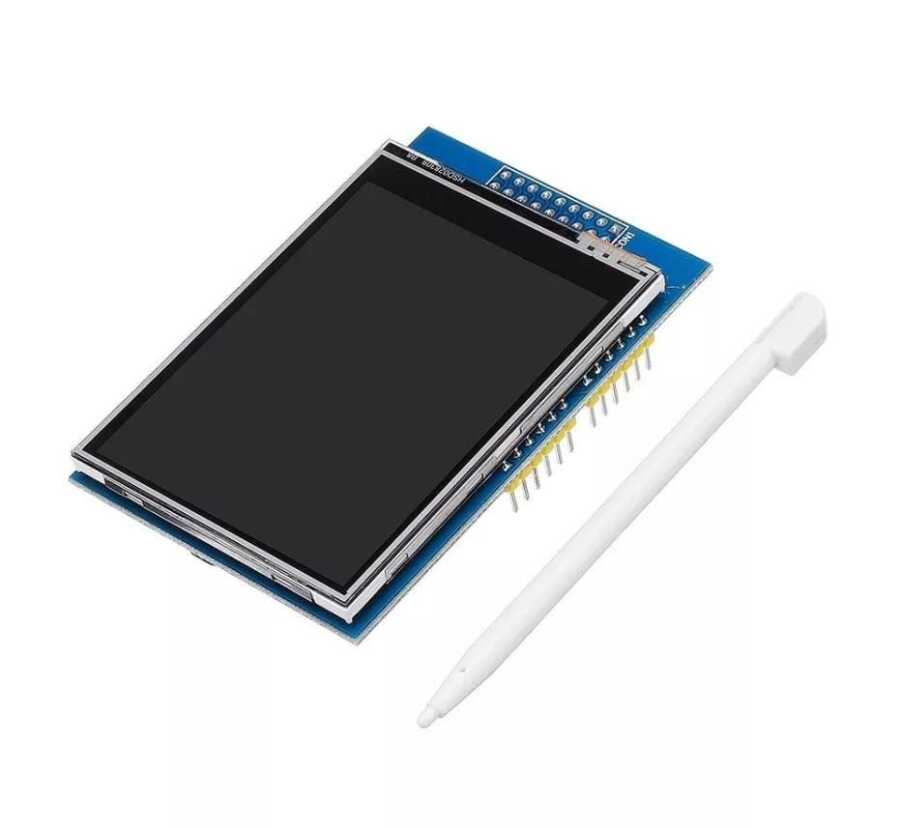

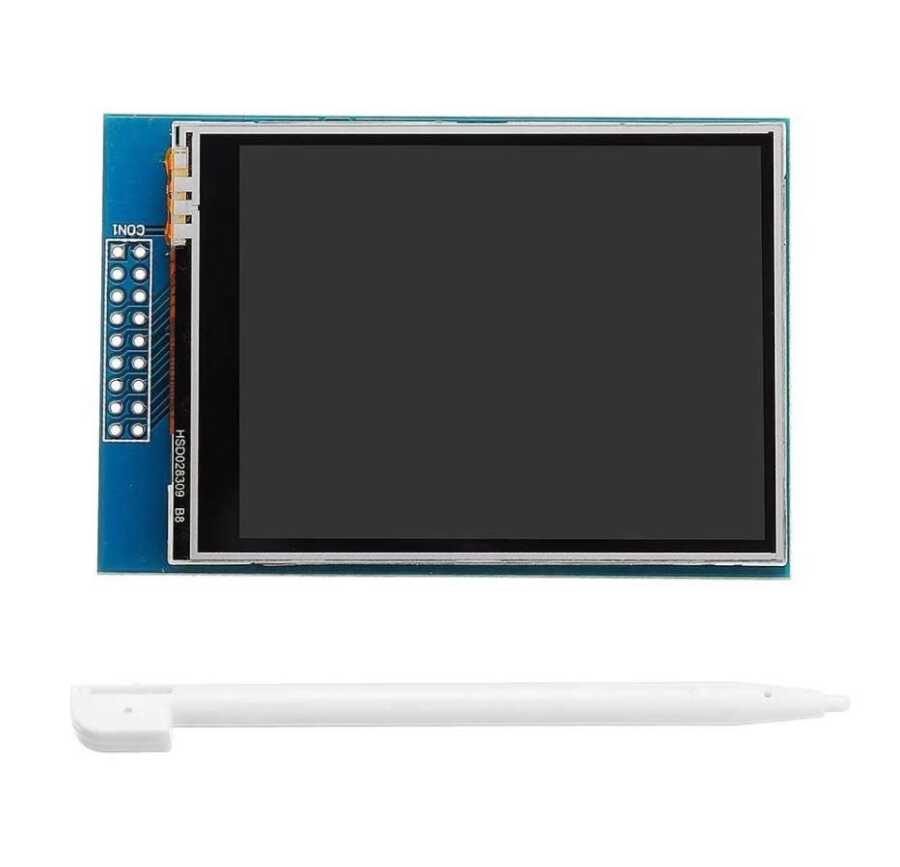

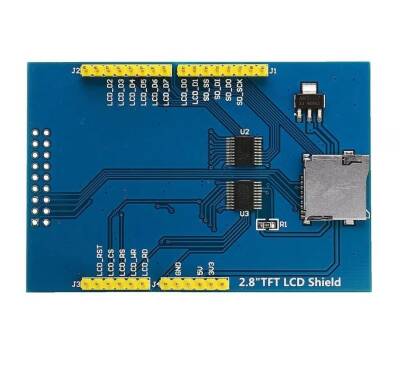

It is a 2.8" TFT LCD module with a 65K color screen with 320x240 resolution. It uses 8bit line parallel port communication and driver IC It is ILI9341. The module includes LCD display, 3.3-5V level conversion circuit, can be directly plugged into Arduino Uno and MEGA2560 development board, also supports SD card expansion function.

*Arduino UNO and Mega2560 compatible shield

*320X240 resolution, clear screen, touch function support

*Supports 16-bit RGB 65K color display

*8-bit parallel bus, faster than serial SPI refresh

*Built-in 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage

Technical Specifications

*Screen Color: RGB 65K color

*SKU: MAR2808

*Screen Size: 2.8(inch)

*Type: TFT

*Driver IC: ILI9341

*Resolution: 320*240 (Pixel)

*Module Interface: 8-bit parallel interface

*Screen Size: 69x52mm

*PCB Size: 78x53 mm

*Operating Temperature: -20℃~60℃

*Operating Voltage: 5V/3.3V
