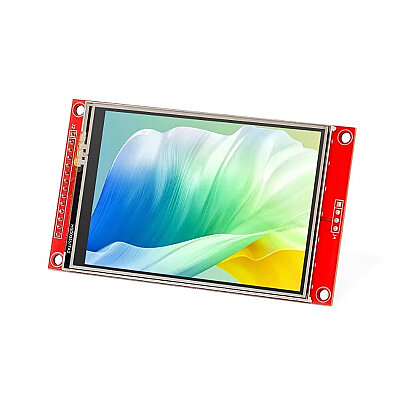

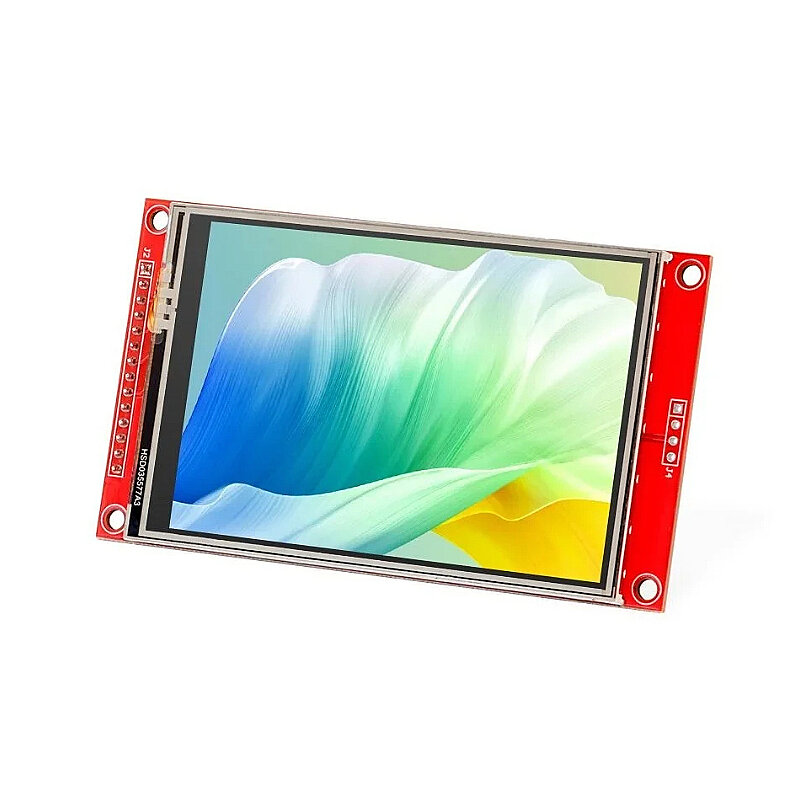

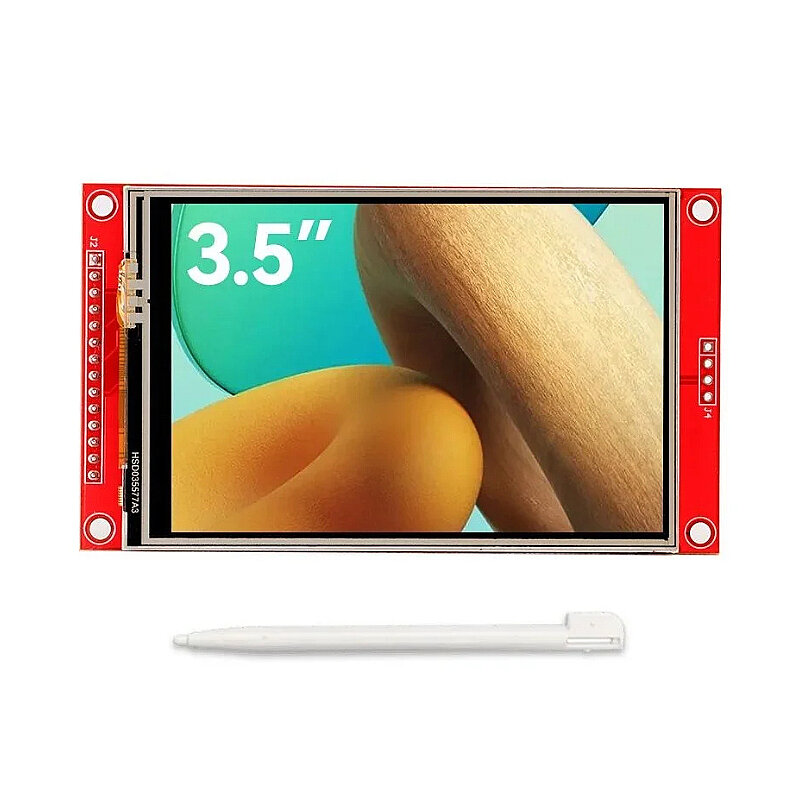

3.5'' ILI9488 Touch LCD Screen SPI 320x480

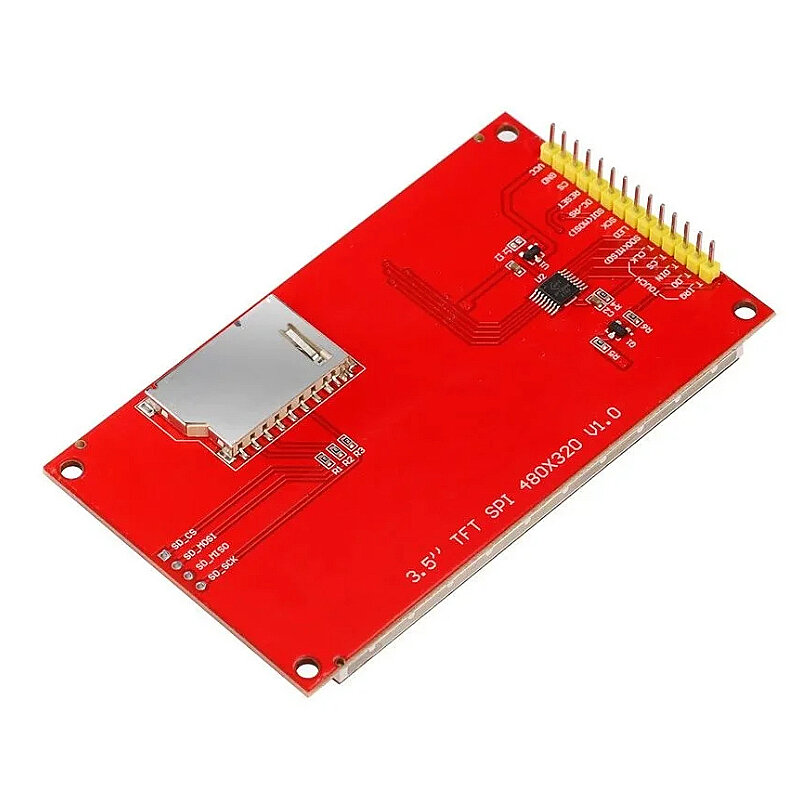

The 3.5'' ILI9488 Touch LCD Screen (SPI, 320x480) features the high-performance ILI9488 driver chip, supporting a 480x320 resolution and a 65K color display. It communicates via the SPI protocol and requires only a few I/O ports to operate. The module simplifies the embedded system development process by offering an SD card slot and a GPIO expansion interface. The touch function is optional, and the module is compatible with popular development boards such as STM32 and Arduino. Suitable for industrial HMI, smart home control panels, portable devices, and many other applications.
Specifications
- Size: 3.5 inches
- Display Type: TFT
- Touch Type: Resistive Touch
- Resolution: 480x320 (Pixels)
- Color: RGB 65K colors
- Driver IC: ILI9488
- Interface: 4-wire SPI interface
- VCC Power Voltage: 3.3V~5V
- Logic I/O Port Voltage: 3.3V (TTL)
- Operating Temperature: -20℃~60℃
- Storage Temperature: -30℃~70℃
- Active Area: 48.96x73.44 (mm)
- Module Size: 56.34x98 (mm)
