Arduino Multifunctional Development Board

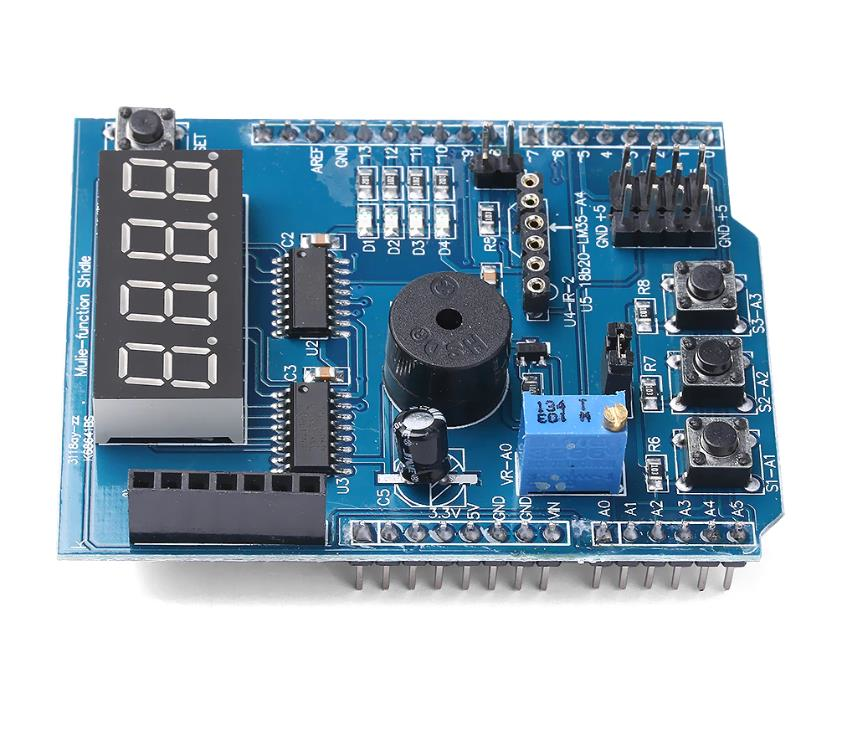

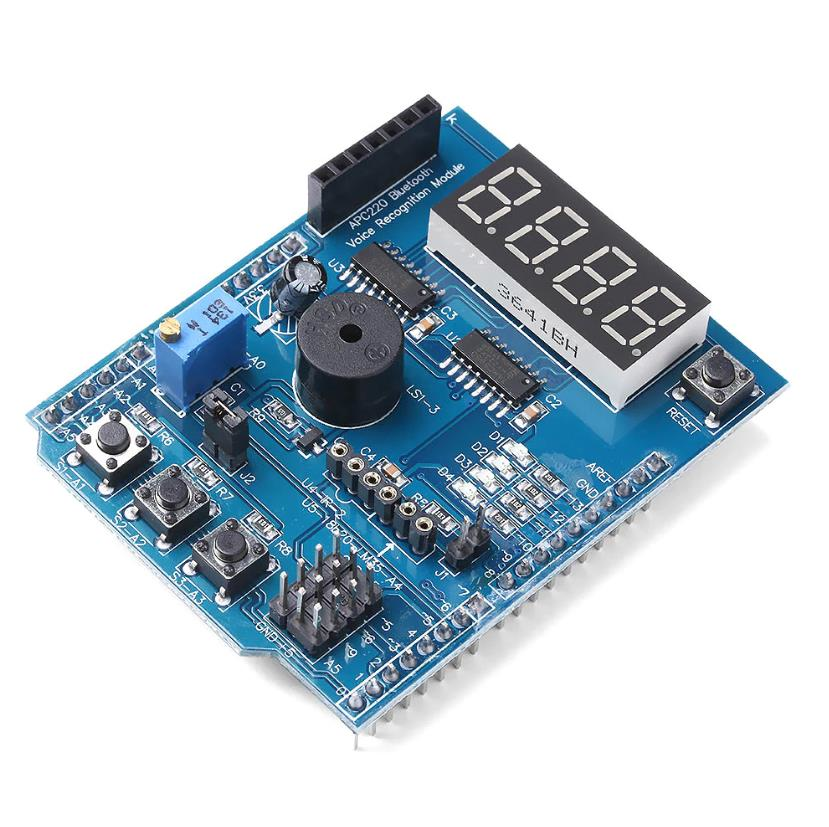

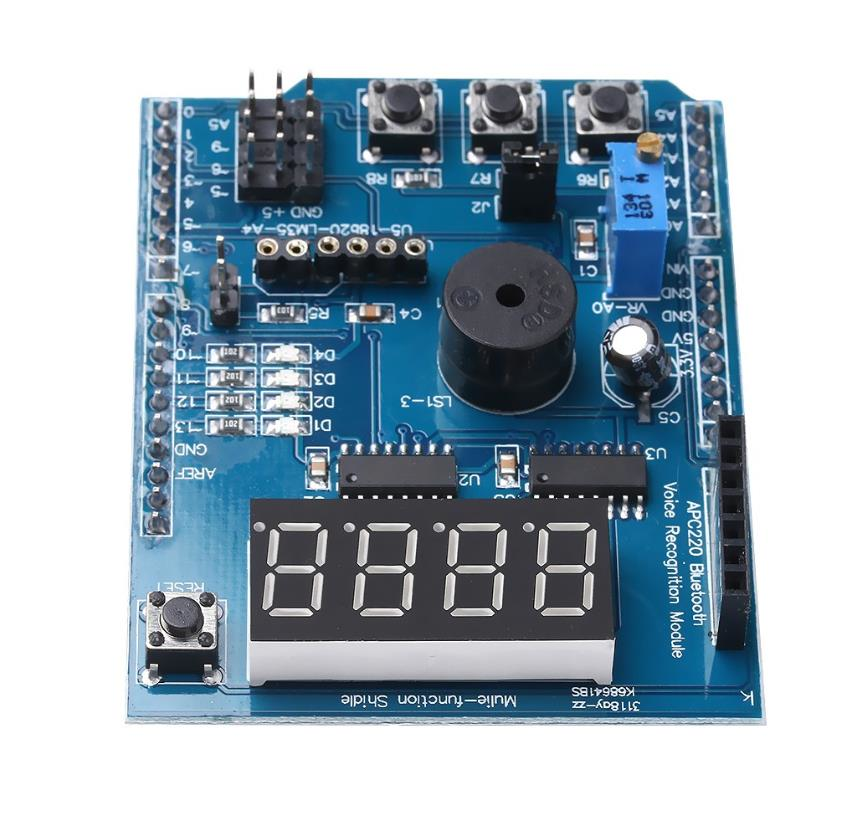

Arduino Uno and Leonardo compatible multifunctional experiment shield. It is an ideal shield for beginners who want to try and learn. It has a wide range of features as a general purpose shield for more advanced uses. Alongside the feature-rich component range, there is also a range of expansion heads for convenient interfacing of external modules and components. Includes R3 type headers for easy connection to your Arduino board.

Technical Specifications

4-digit 7-segment LED display module used by two series 74HC595
In parallel configuration 4 surface mount LEDs
10K adjustable precision potentiometer
3 x independent buttons
Buzzer for alarm applications
DS18B20 temperature header connectioN
LM35 temperature header connection
Infrared receiver interface for remote control applications
Header connection for Bluetooth, wireless interface, sound module, voice recognition module
Dimensions: 69 x 54 x 11mm

You can access sample applications with Arduino by clicking the link below.

Chapter 1 shows how to use the multifunction shield buttons, buzzer and 7-segment. Chapter 2 shows how the shield library can be used to read values from external sensors such as temperature, sonar and motion sensors.

Chapter 3 describes the following applications using the library and multifunctional shield.

24 hour alarm clock
Heart monitor - (Pulse Sensor)
Countdown clock
Surface slope level indicator – (MPU6050 sensor)
Sonar ranger - (HC-SR04 Sensor)
Speedometer - (reed switch)
