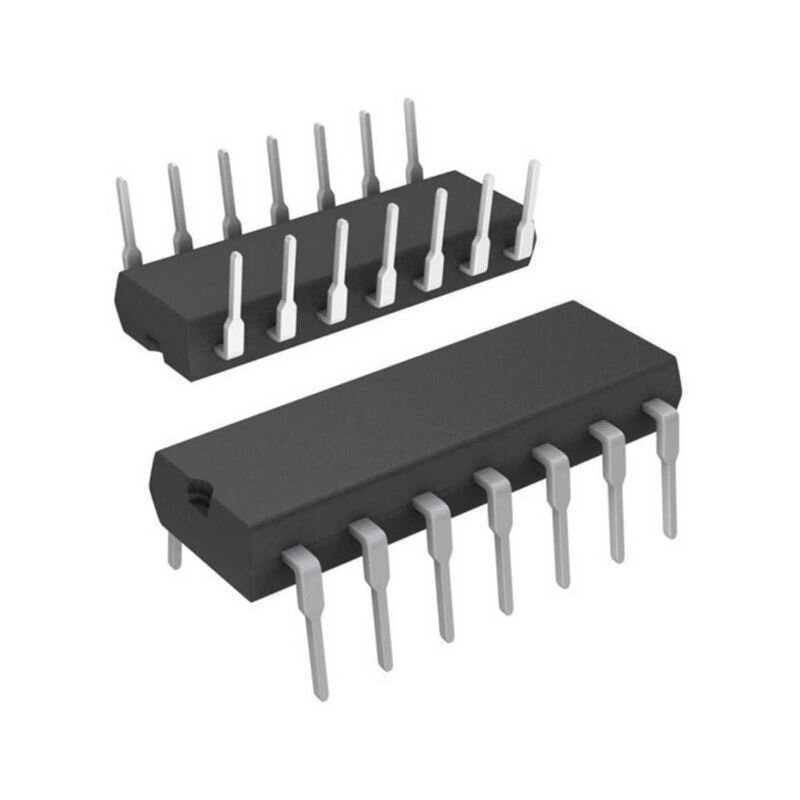

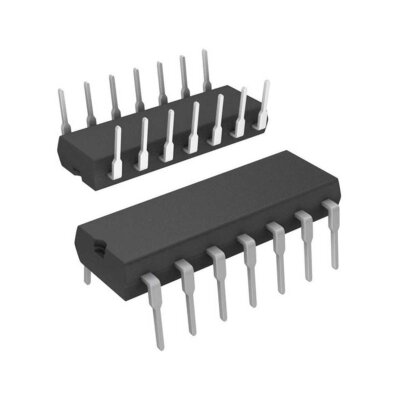

74LS20 DIP-14 Inverter and Gate Integrated Circuit
The 74LS20 DIP-14 Inverter and Gate Integrated Circuit is a TTL-based Low Power Schottky (LS) logic IC containing two four-input NAND gates.
With its low power consumption and fast switching characteristics, it is an ideal choice for industrial automation, robotic control systems, microcontroller circuits, and educational applications.
This IC operates with classic NAND logic, producing a LOW output when all inputs are HIGH and a HIGH output in all other cases.
Thanks to its four inputs, you can easily implement complex logic functions with a single gate.
| Series | 74LSXX |
| Supply voltage | 4.75-5.25V |
| Logic Type | NAND (NOTE AND) |
| Number of Pins | 14 |
| Package Type | DIP-14 |
