8 Channel Ethernet Relay Module (B) - Modbus RTU/Modbus TCP Protocol- PoE Ethernet Port

8 Channel Ethernet Relay Module (B) - Modbus RTU/Modbus TCP Protocol- PoE Ethernet Port

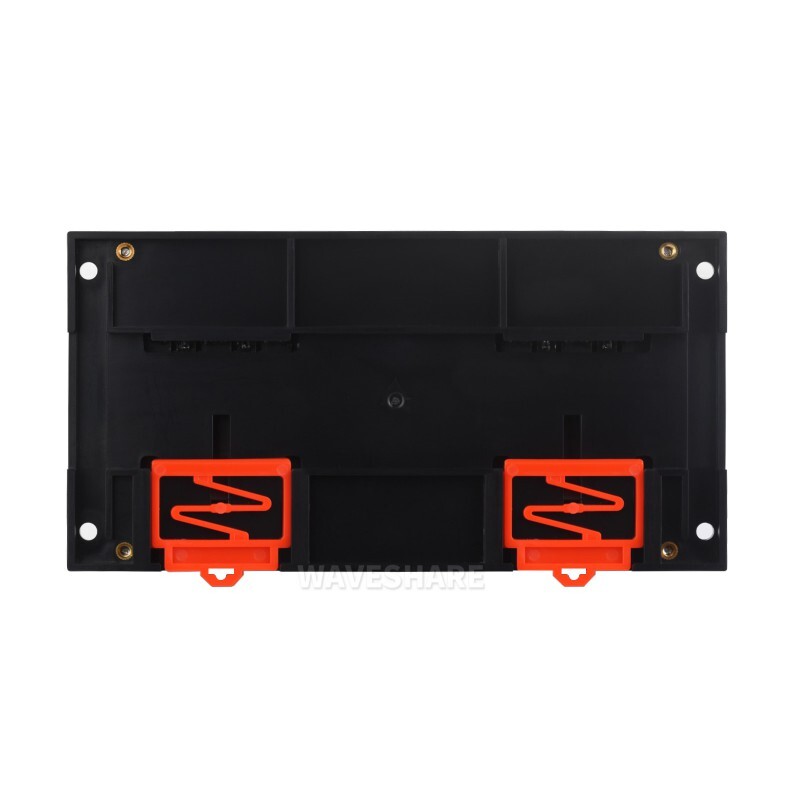

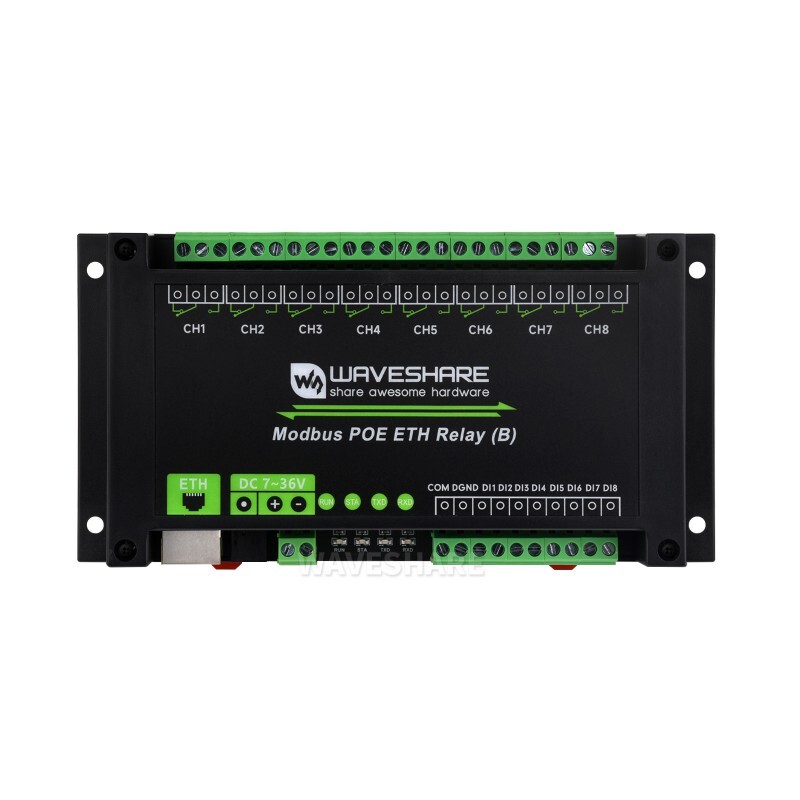

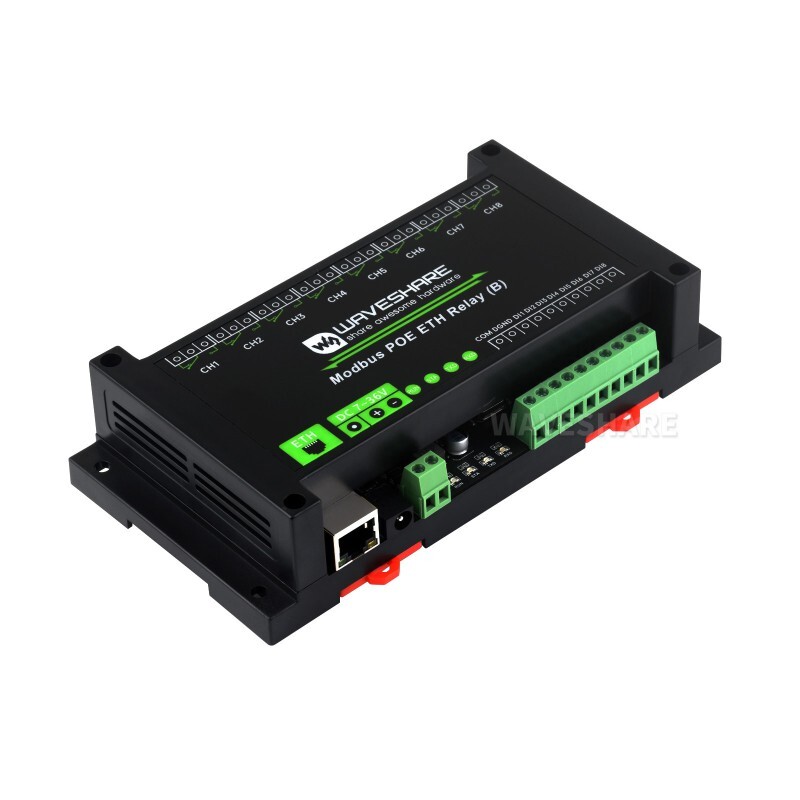

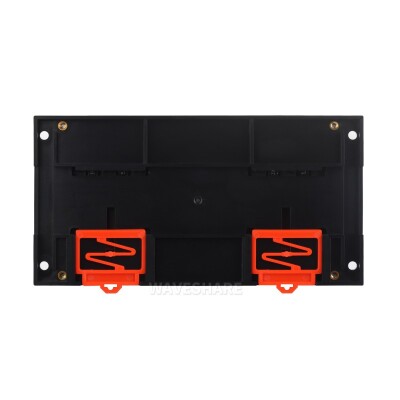

8 Channel Ethernet Relay Module (B) - Modbus RTU/Modbus TCP Protocol- PoE Ethernet Port, This product is an industrial 8 channel relay module controlled via Ethernet port, has 8 channels of digital input, adopts Modbus RTU/Modbus TCP protocols, supports PoE power supply, and also comes with an ABS rail mounting case. Modbus POE ETH Relay (B) is very easy to use. Due to its fast communication, stability, reliability and security, it is an ideal choice for industrial control equipment or applications with high communication requirements.

User Manual

Features

• SKU: 27876
• Supply Voltage: PoE Ethernet Port, DC 5.5*2.1 Power Port or Power Supply Screw Terminal (7~36V)
• Communication Interface: PoE Ethernet Port, IEEE 802.3af Standard Supports
• Number of Channels: 8 Channels
• Contact Type: 1NO, 1NC
• Switching Ratings: <10A 250VAC or <10A 30VDC
• Digital Input: 8DI, 5~36V, Passive Input/Active Input (NPN or PNP)
  Built-in Bidirectional Optocoupler
• Modbus Protocol: Modbus RTU Protocol or Modbus TCP Protocol
