Industrial Isolated USB to 4 Channel RS485/422 Converter

Industrial Isolated USB to 4 Channel RS485/422 Converter

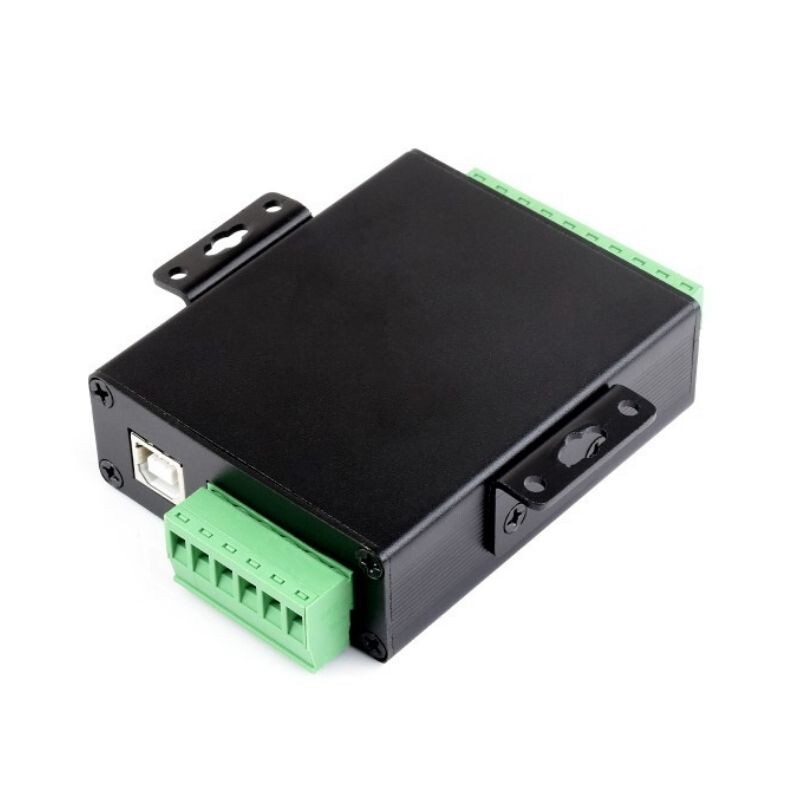

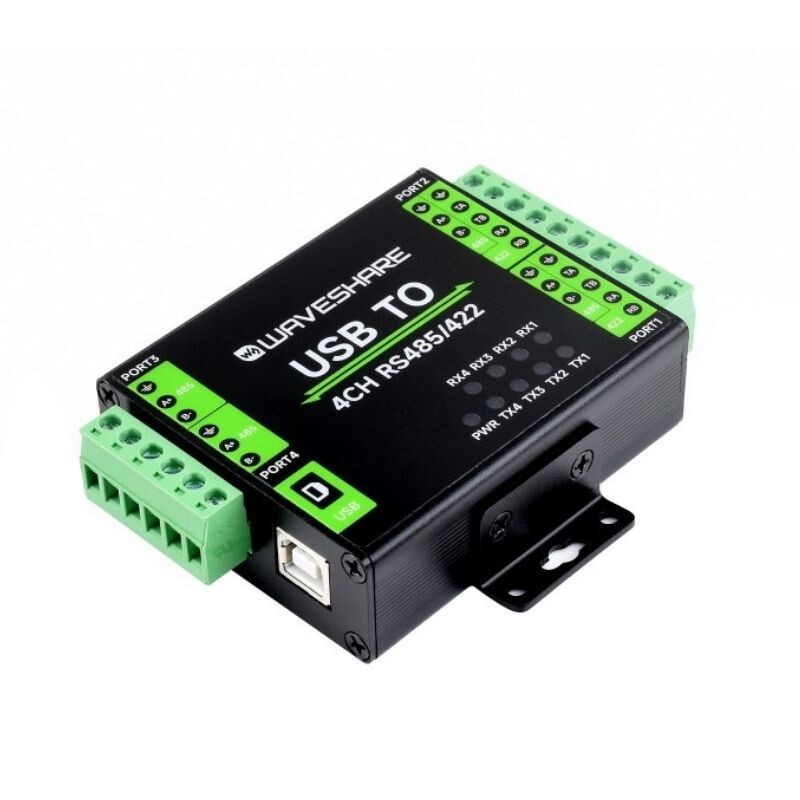

The Industrial Isolated USB to 4 Channel RS485/422 Converter is an industrial grade USB to RS485/422 isolated converter with built-in power isolation, built-in protection circuits such as ADI magnetic isolation and TVS, and an aluminum alloy case design. It is easy to use with zero-delay fully automatic transceiver circuit, and has the features of fast communication speed, stability, reliability and security, which is suitable for industrial devices and applications with high communication requirements.

For detailed information, please visit  wiki page.

Features

• Adopts original FT4232HL chip, communicates quickly, is stable and reliable, has better compatibility.
• SKU: 25970
• From USB Support RS485 to RS422, USB to RS485.
• Built-in one-piece power supply isolation, provides stable isolated voltage, and does not need extra power supply for isolated terminal.
• Built-in one-piece digital isolation, provides signal isolation, high reliability, strong anti-interference and low power consumption.
• Built-in TVS (Transient Voltage Suppressor) effectively suppresses the surge voltage and transient surge voltage in the circuit,
• Built-in self-recovery fuse and protection diodes ensure current/voltage stable output, provide over-current/over-voltage resistance and improve shockproof performance.
• Built-in 120ohm resistor on RS422 and RS284 interfaces, and users can replace it after removing the case.

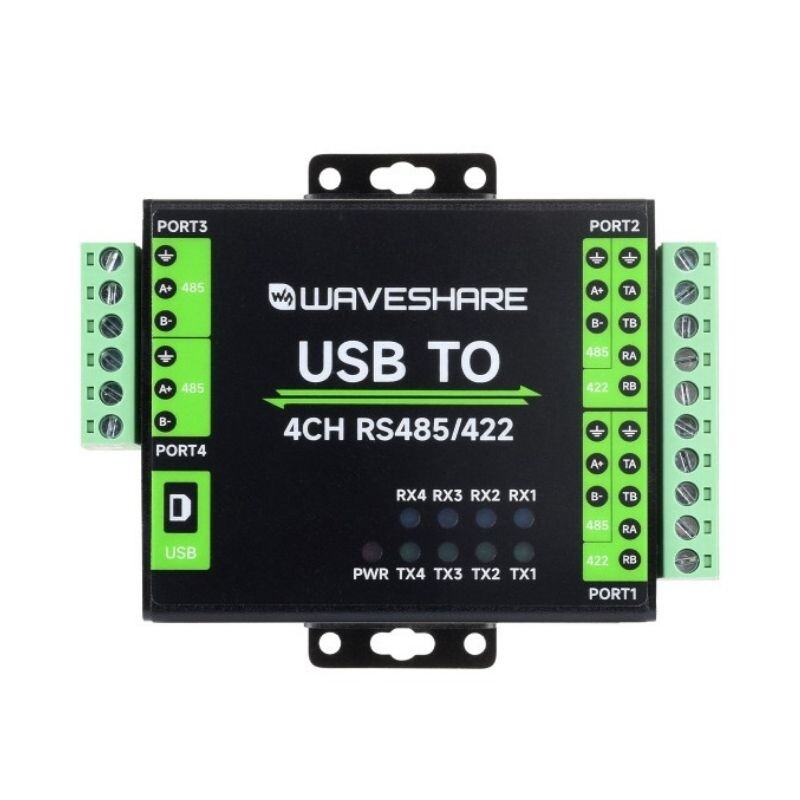

• 9 LEDs to indicate power and transceiver status.

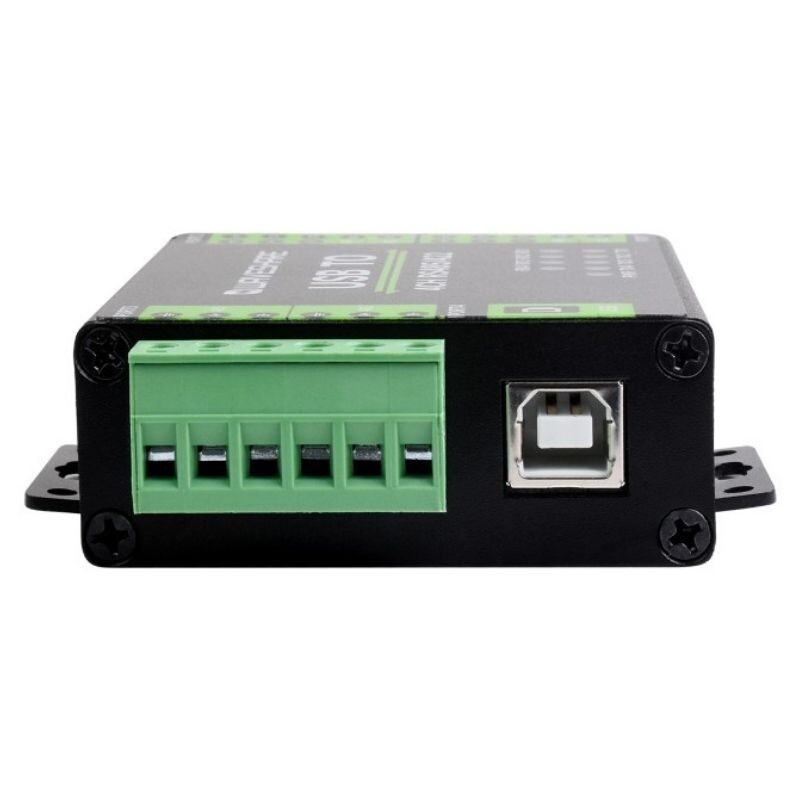

• High-quality USB-B connectors, trouble-free way to insert/pull. Industrial grade metal case, suitable for wall mounting and rail mounting, sturdy and beautiful, easy to install.
