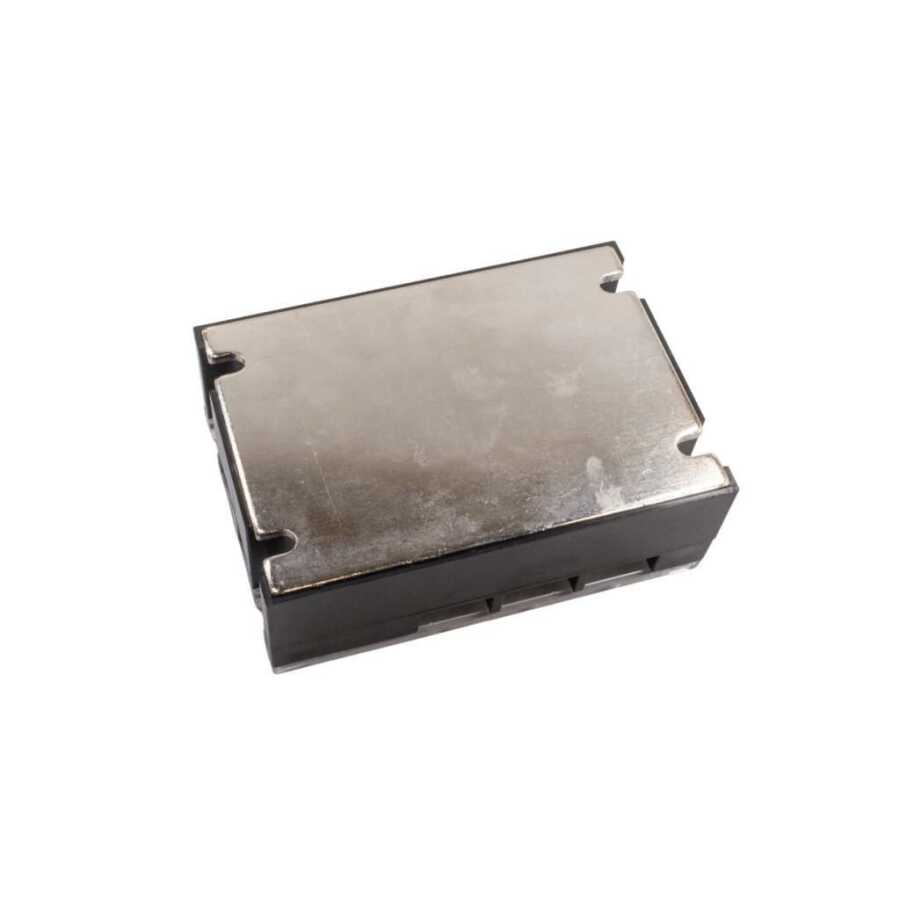

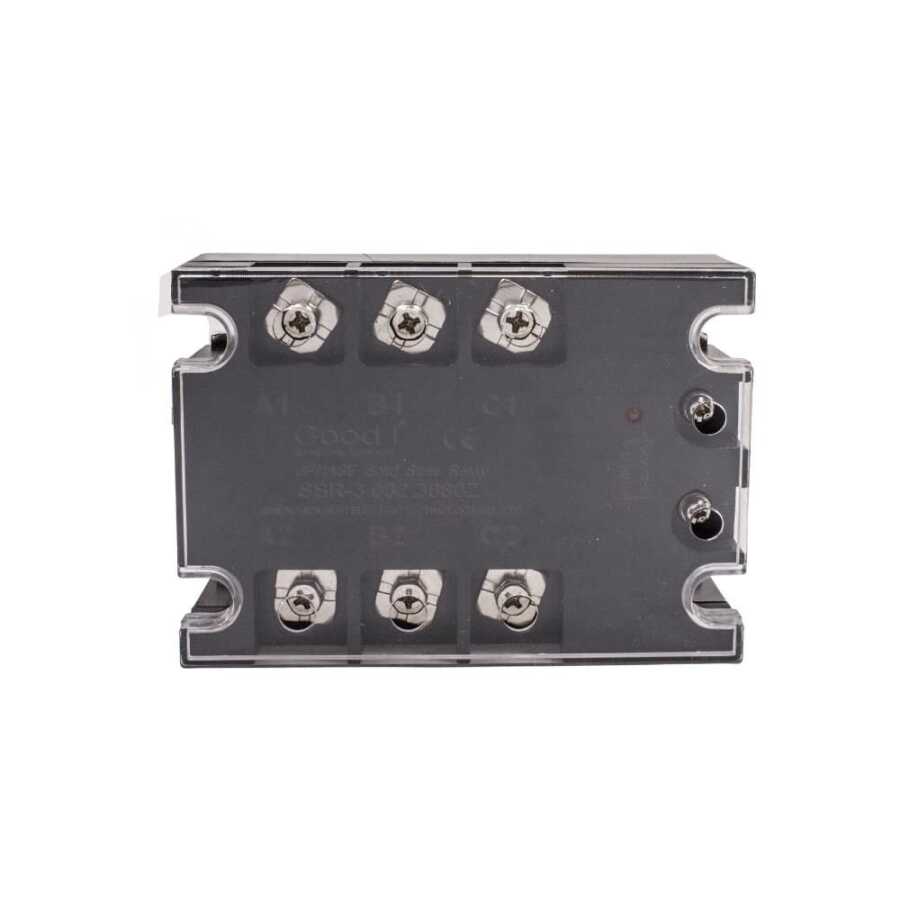

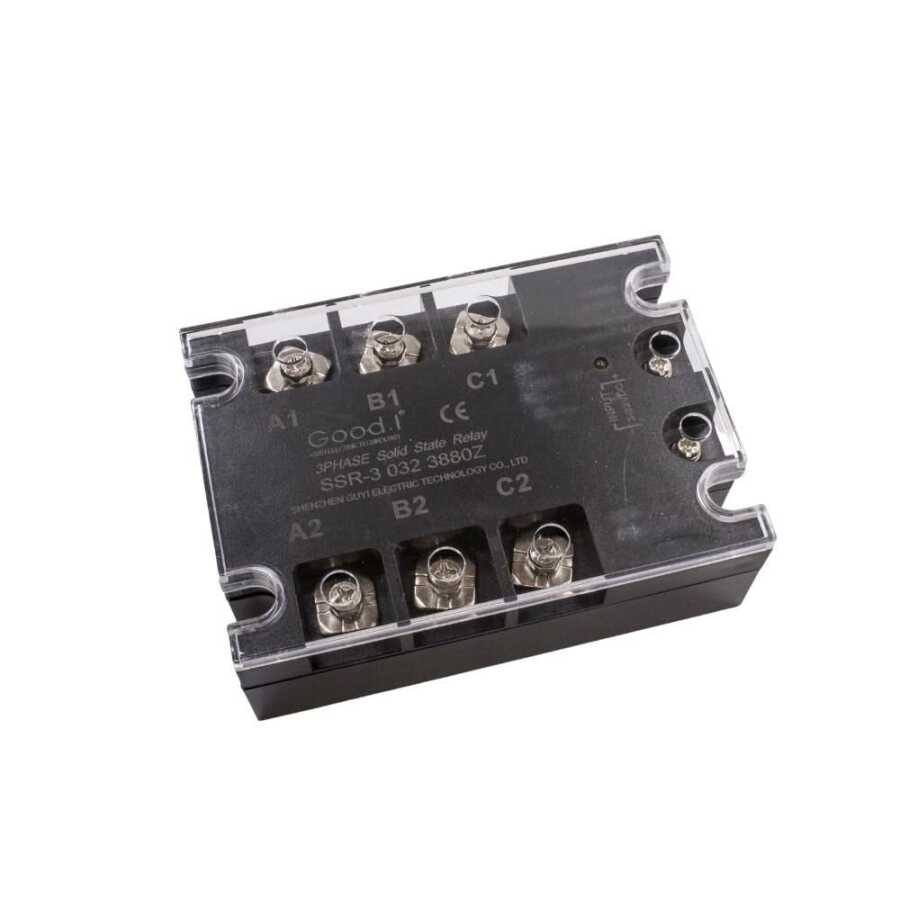

80DA 3 Phase 80A Solid State Relay SSR

80DA 3 Phase 80A Solid State Relay SSR. Solid state relays work like classical relays or contactors where they are used. Since they consist of a semiconductor circuit, they are longer lasting and more durable than other products with mechanical contact output.

3 Phase Solid State Relay This product is triggered by DC 3-32 volt supply. It can switch AC 24-480V electricity. It is also compatible with programming cards such as Arduino and Raspberry Pi.

All Solid State Relay types you can access it here.

Specifications:

Model: 80DA
Control Mode: DC-AC
3 Phase
Load Voltage: 24-480VAC
Load Current: 80A
Control Voltage: 3-32VDC
Operating Indicator: LED
Trigger Current: Max. 20.0 mA
Leakage Current: Max. 8 mA
Response Time: Max. 10 ms (60 Hz)
Insulation Power: 1000MΩ / 500VDC
Ambient Conditions: -20°C ~ +75°C
Dimension: 105x74x33mm

80DA 3 Phase 80A Solid State Relay SSR

80DA 3 Phase 80A Solid State Relay SSR

Specifications:

Wiring Diagram
