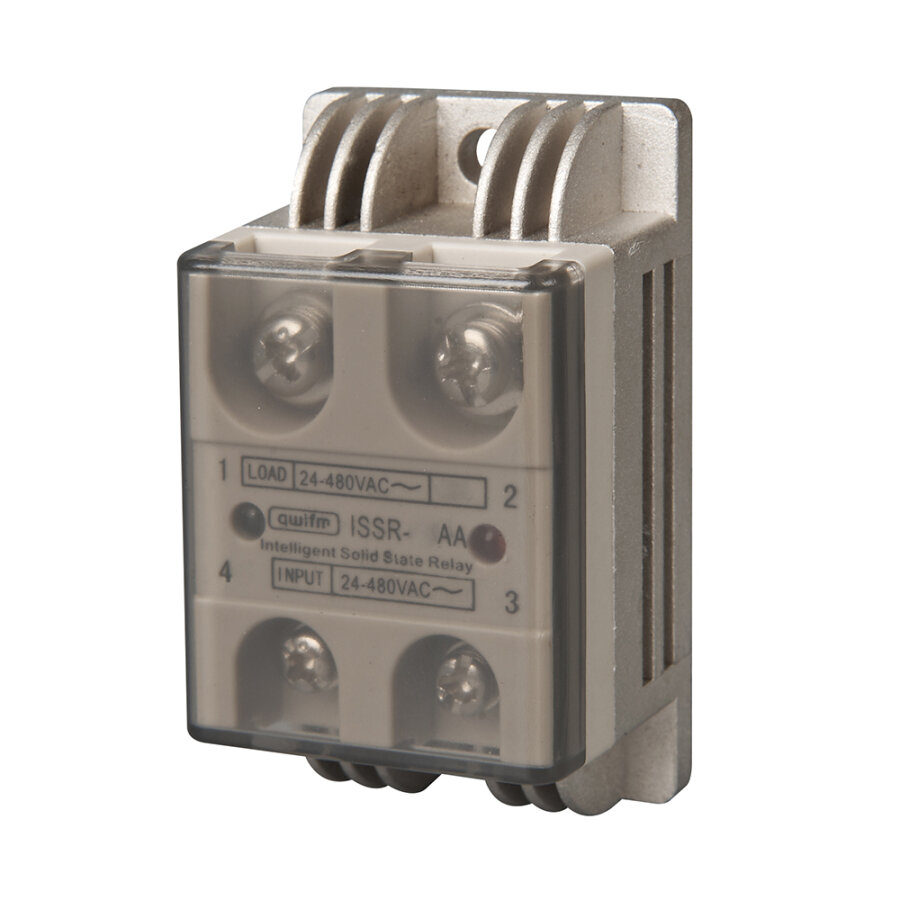

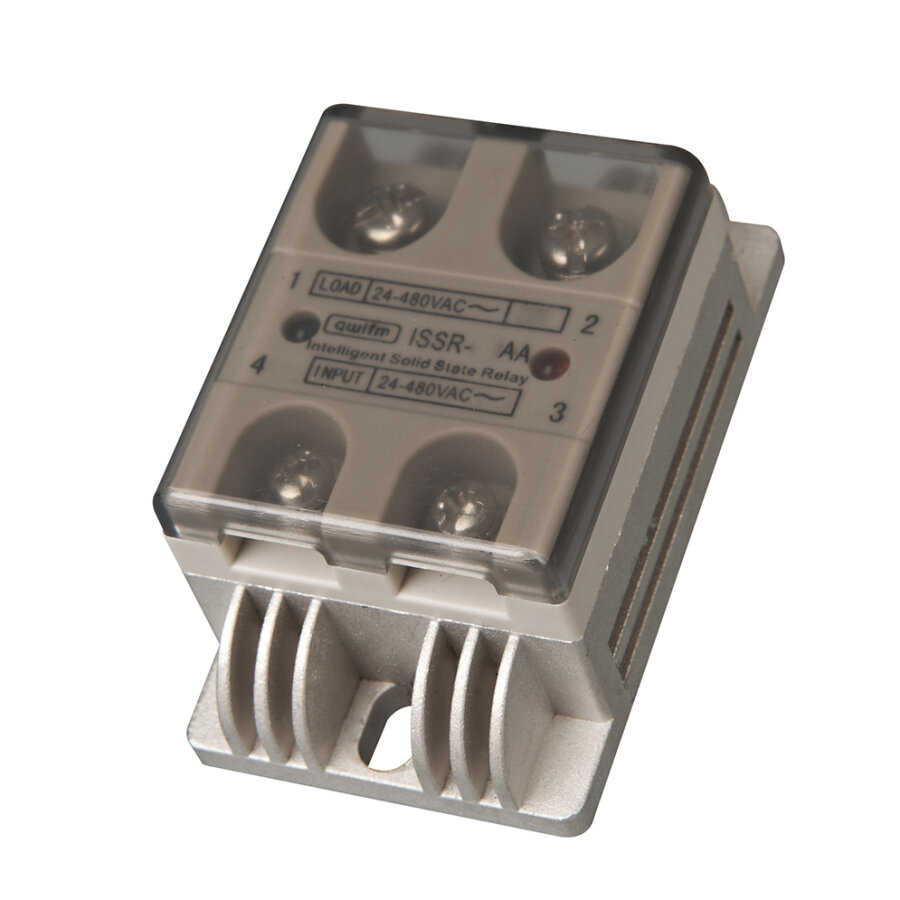

ISSR-25AA Intelligent Solid State Relay 25A - 80-250VAC Input 24-480VAC Output
ISSR-25AA Intelligent Solid State Relay 25A - 80-250VAC Input 24-480VAC Output
ISSR-25AA Intelligent Solid State Relay 25A - 80-250VAC Input 24-480VAC Output, The Intelligent SSR (Solid State Relay) series, developed by QWIFM, is a next-generation relay family designed for high precision, reliability, and long life in industrial control applications. These relays eliminate the limitations of conventional electromechanical relays, offering contactless, silent, and high-speed switching.
Thanks to its internal microcontroller-based intelligent control circuit, the device continuously monitors operating conditions and activates automatic protection mechanisms in cases such as overheating and load unbalance. This significantly extends the lifespan of both the device and the connected load.
These devices do more than just turn on and off; Thanks to its "smart" structure, it automatically detects ambient conditions, maintains thermal balance, and provides much more stable operation.
Features
- Load Current: 25A
- Load Voltage: 24-480VAC
- Control Voltage: 80-250VAC
- Control Current: 3-10mAAC
- Response Time: <10ms
- Dielectric Strength: 2500VAC
- Insulation Resistance: 100MOhm
- Operating Temperature: -25° ~ +75°C
- Mounting Holes: M4
- LED Descriptions
- Green: Working
- Red: Fault
- Weight: 70g
