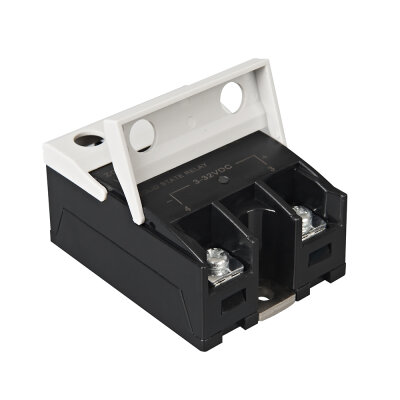

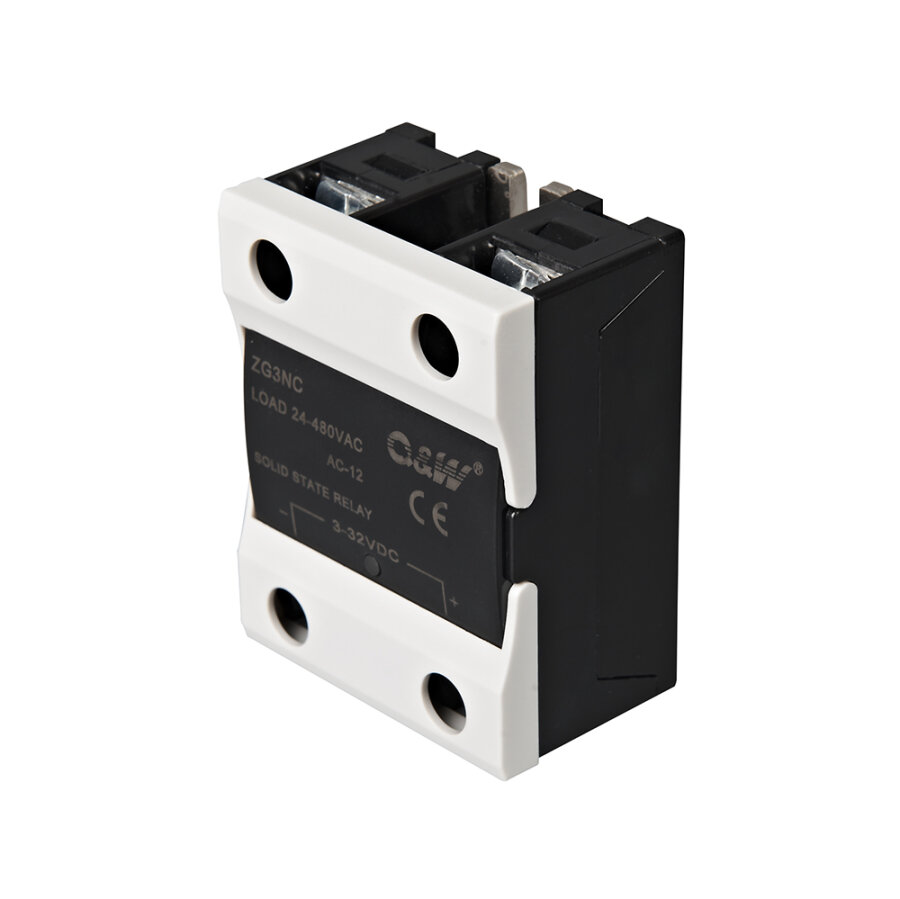

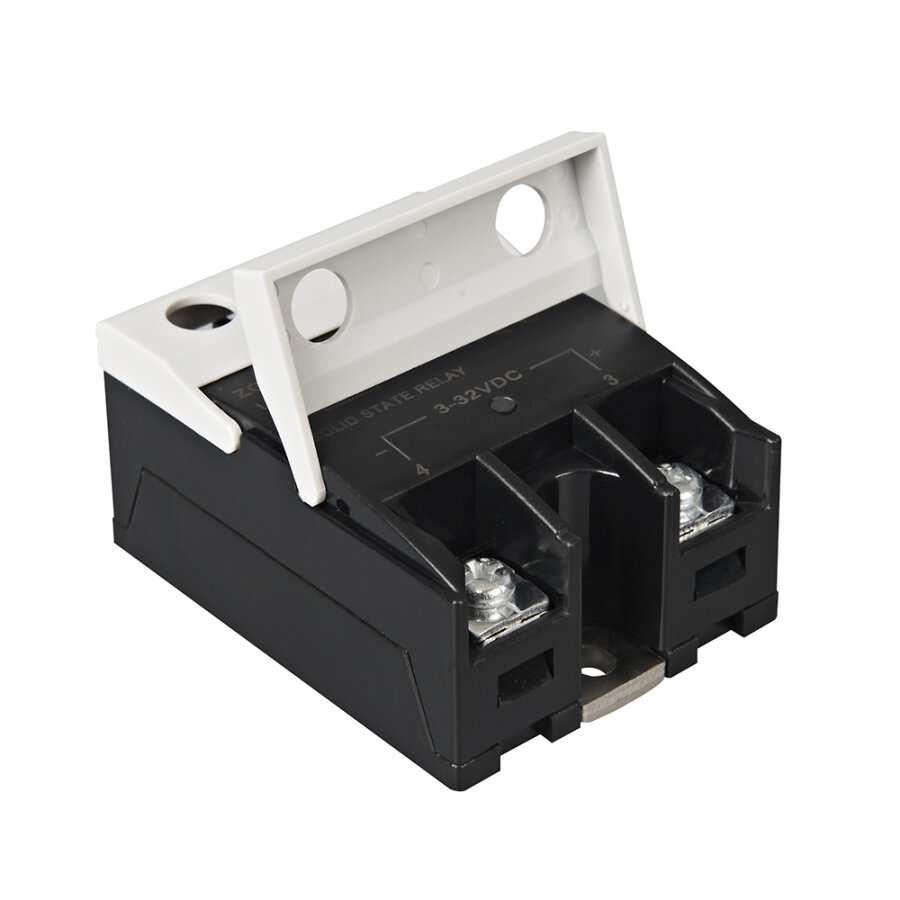

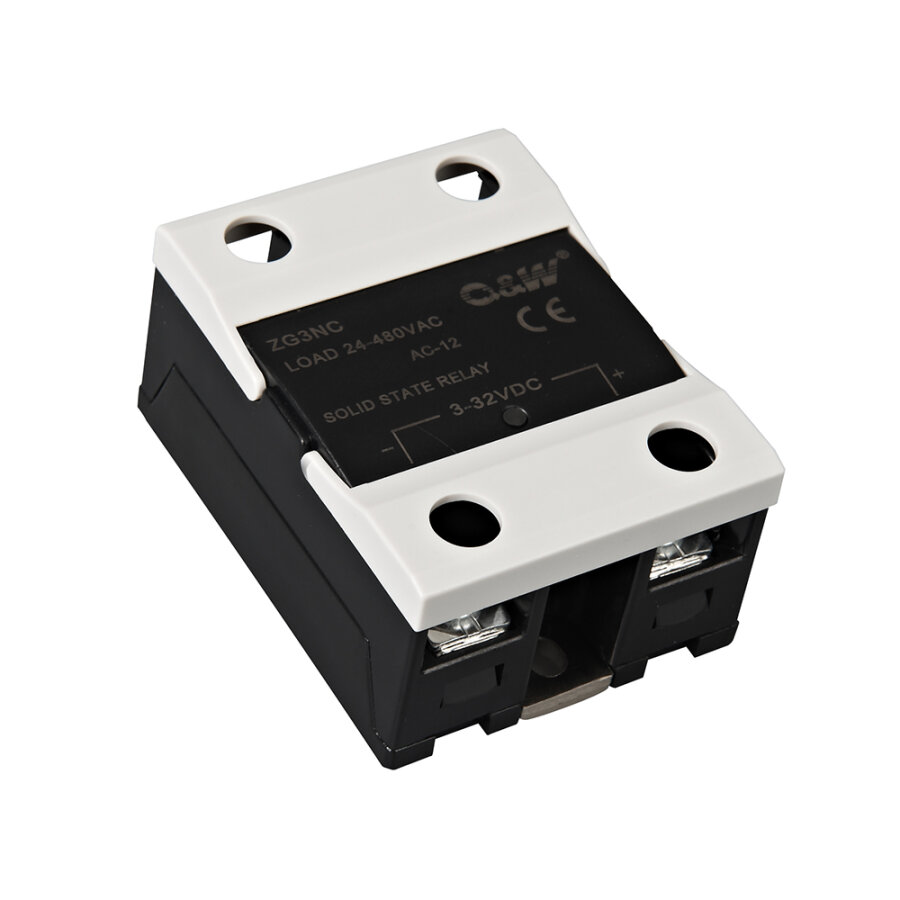

ZG3NC-325B Solid State Relay 25A - 3-32VDC Input 90-480VAC Output
258,00
TL
+
VAT
309,60
TL
Notify Me When It Arrives
Notify Me When It Arrives
ZG3NC-325B Solid State Relay 25A - 3-32VDC Input 90-480VAC Output
ZG3NC-325B Solid State Relay 25A - 3-32VDC Input 90-480VAC Output. Solid state relays operate like conventional relays or contactors in their intended applications. Because they are made of semiconductor circuitry, they have a longer lifespan and are more durable than other products with mechanical contact outputs.
You can access all Solid State Relay types here .
Features
- Load Current: 25A
- Load Voltage: 90-480VAC
- Control Voltage: 3-32VDC
- Control Current: 3-20mA DC
- Dielectric Strength: 2500 VAC 50/60Hz
- Insulation Resistance: 100MOhm / 500VDC
- Mounting Holes: M4
- Operating Temperature: -25°C ~ +75°C
- Weight: 75g
