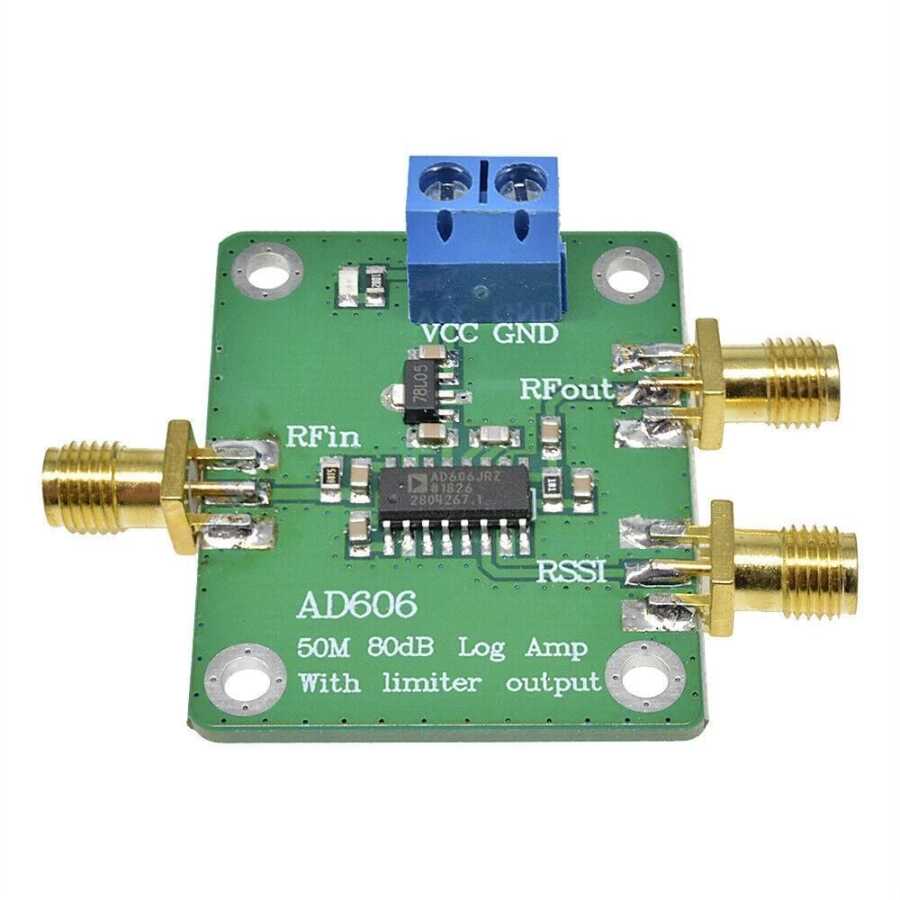

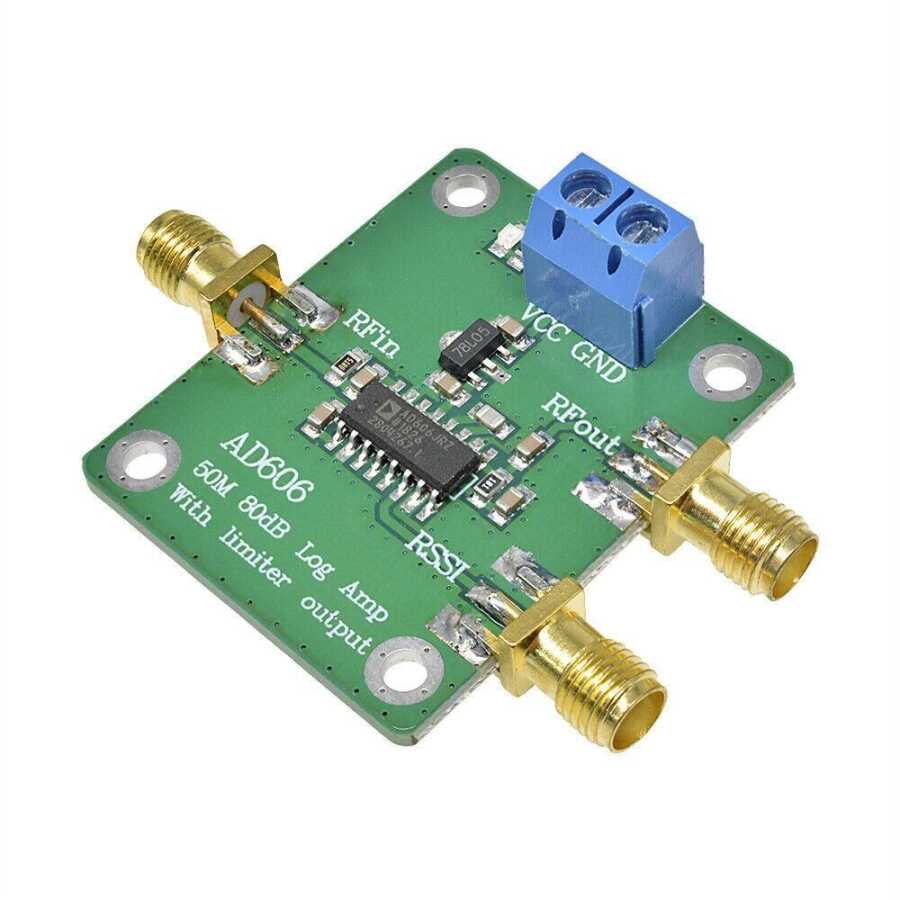

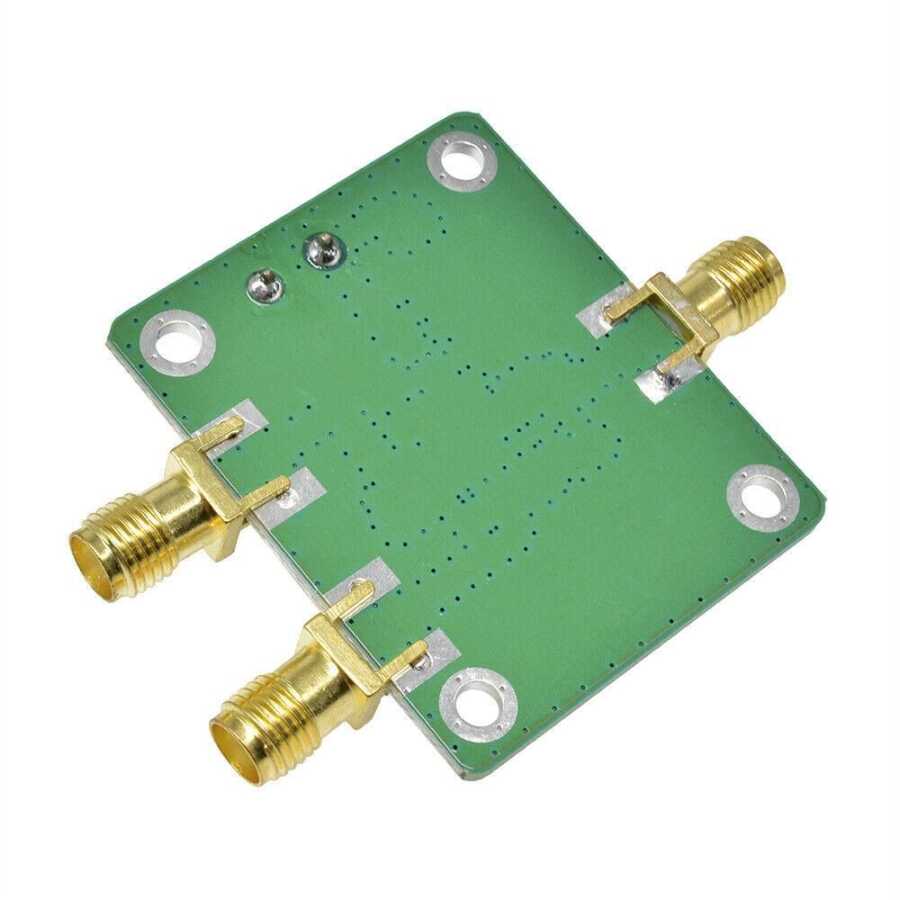

Ad606 80dB Demodulated Logarithmic Amplifier Module

AD606 output limiter module with 50MHz 80dB demodulation logarithmic recording is the amplifier. It has a wide range and adjustable output amplitude used for signal strength measurement. It has a 65mW CMOS compatible power saving mode with 325μW (typical value).

Technical Specifications

Logarithmic Amplifier Performance

–75 dBm to 5 dBm Dynamic Range

≤1.5 nV/ √Hz Input Noise

>Available up to 50 MHz

37.5 mV/dB Voltage Output

On-Chip Low Pass Output Filter

61 dB Output Flatness in 80 dB Range

638 Phase Stability @ 10.7 MHz in 80 dB Range

Adjustable Output Amplitude

Low Power

5 V Single Supply Operation

65 mW Typical Power Consumption

Up to 325 mW CMOS Compatible Power Interrupt

<5 ms Activation/ Deactivation Time

Uses

Ultrasound and Sonar Processing

Amplifier 100 MHz Phase Stable Limiting up to

Received Signal Strength Indicator (RSSI)

Wide Range Signal and Power Measurement
