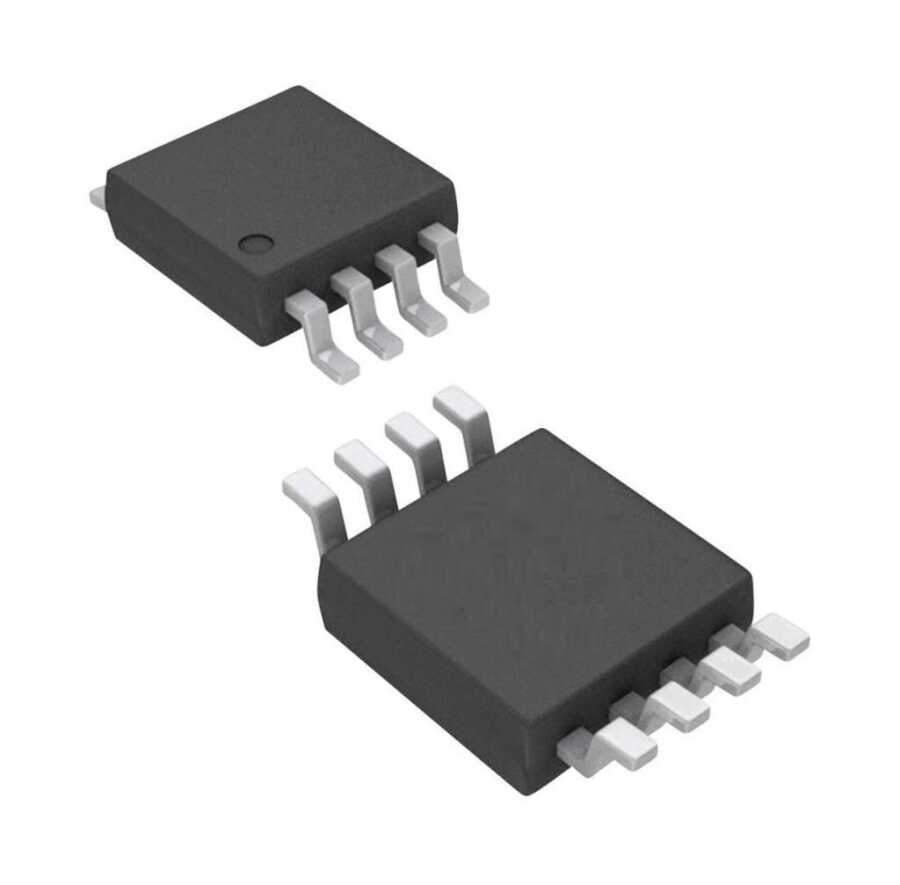

AD8237ARMZ-R7 MSOP-8 Smd Amplifier IC
The AD8237 is a micropower, zero drift, rail-to-rail input and output instrumentation amplifier. The relative matching of two resistors sets the gain anywhere from 1 to 1000. The AD8237 has excellent gain accuracy performance that can be maintained at any gain with two ratio-matched resistors.
The AD8237 uses indirect current feedback architecture to achieve true rail-to-rail capability. Unlike conventional internal amplifiers, the AD8237 can fully amplify signals at or even slightly beyond their supply, with common-mode voltage. This allows applications with high common-mode voltages to use smaller consumables and save power.
Areas of Use
Bridge amplification
Pressure measurement
Medical instrumentation
Thermocouple interface
Portable systems
Current measurement
| Series | AD |
| Supply Voltage | 1.8 V to 5.5 V |
| Number of Channels | 1 Channel |
| Bandwidth | 200 kHz |
| Feed Current | 115 uA |
| Number of Pins | 8 Pin |
| Package Type | MSOP-8 |
