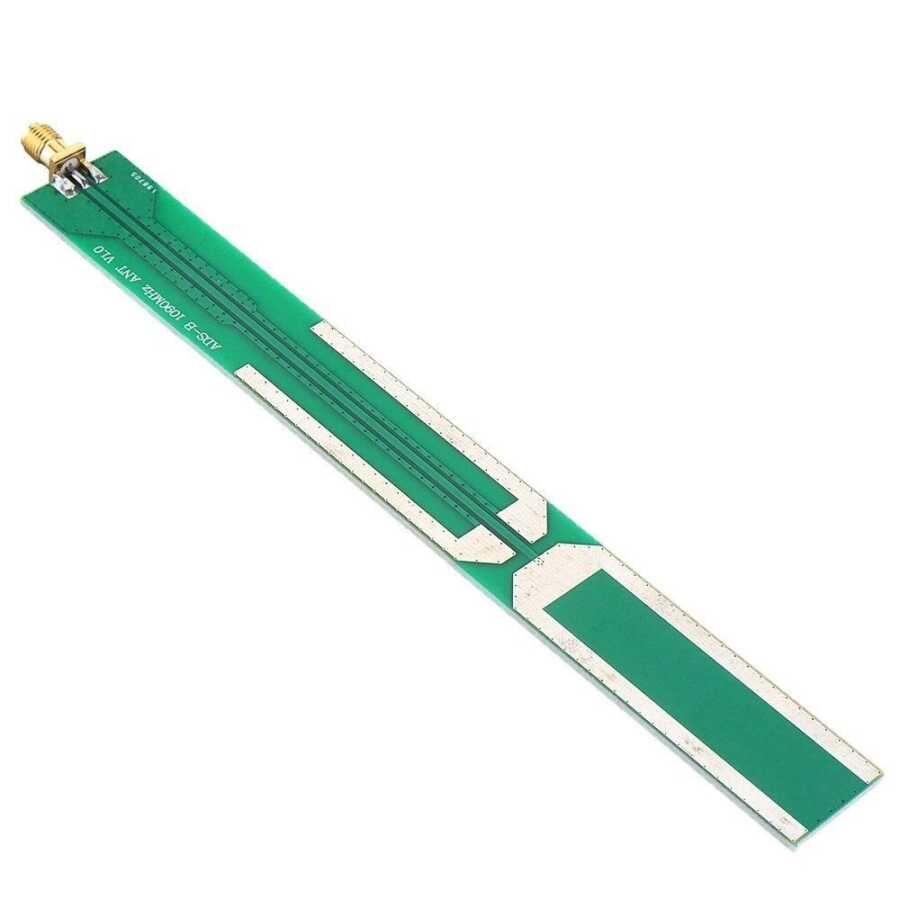

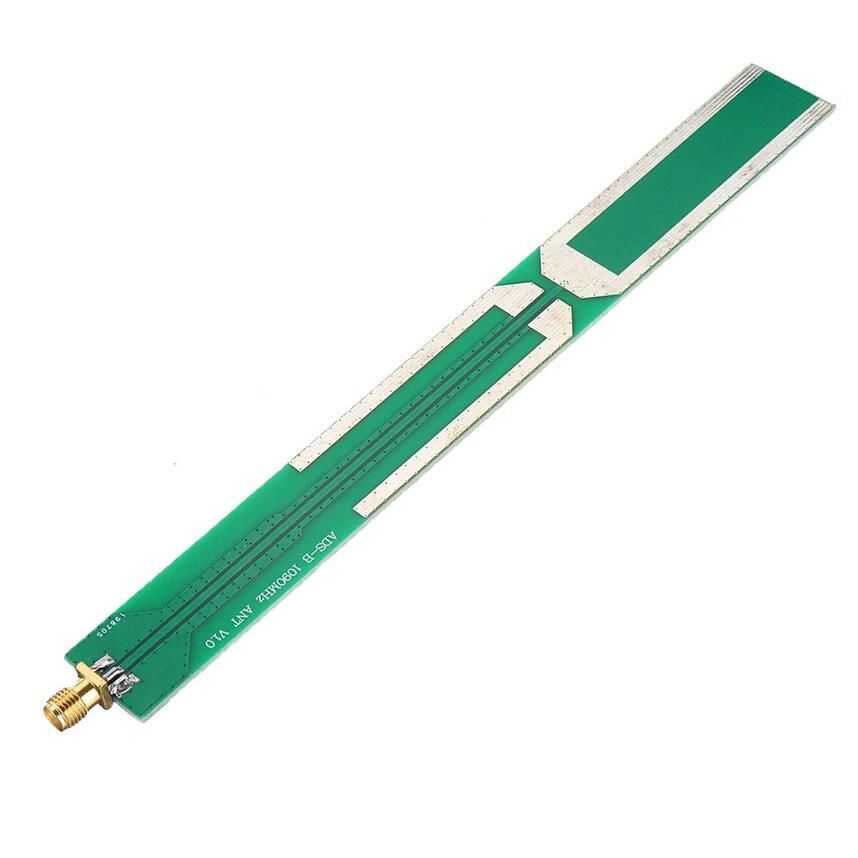

ADS-B 1090MHZ Active High Gain 2.0dBi Antenna

ADS-B active receiving antenna 1090 MHz, the antenna can be fixed on a conductive object connected to the ground, This can reduce electrostatic coupling interference. It is not necessary to connect with lightning protection device. In case of accident, professional operation is recommended.

Technical Specifications

Operating frequency: 1090 ± 15 MHz

Passive gain: 2dBi (dipole antenna)

Antenna polarization: omnidirectional vertical line polarization

Active gain: 20 dB

Band external rejection: > 30 dB

Operating voltage: 2.5-5.5V

Operating current: 80 ma

System impedance: 50 ohm

Dimensions: 20 × 179mm

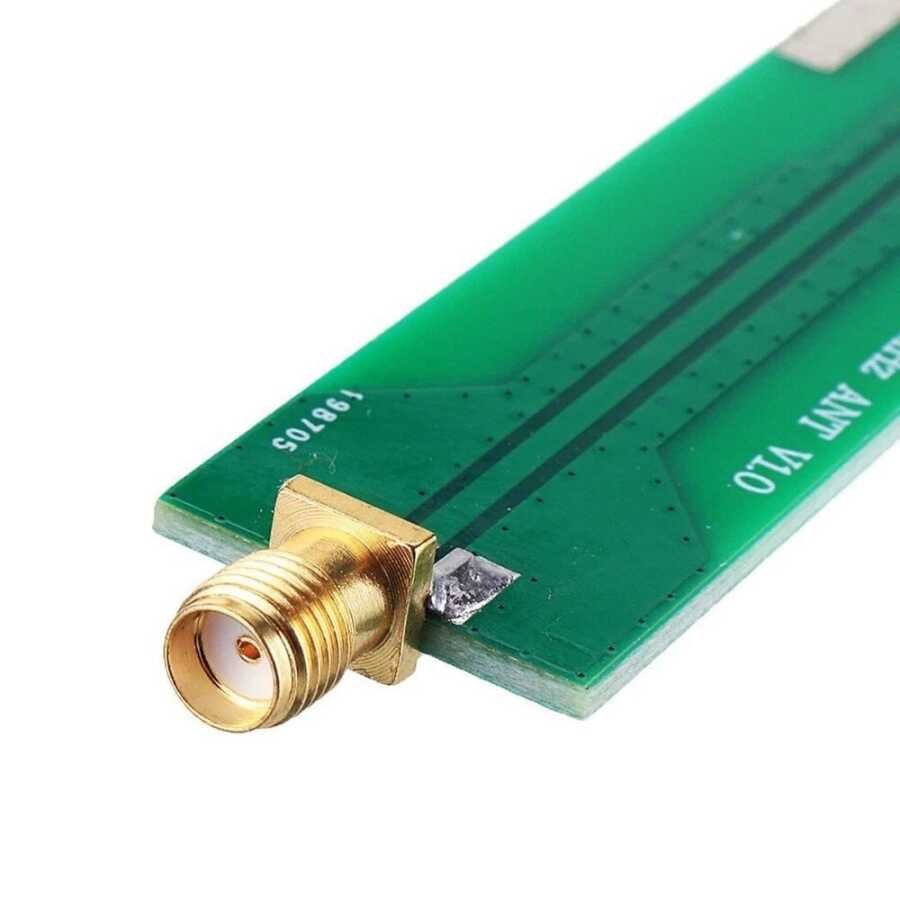

Connector shape: SMA standard female
