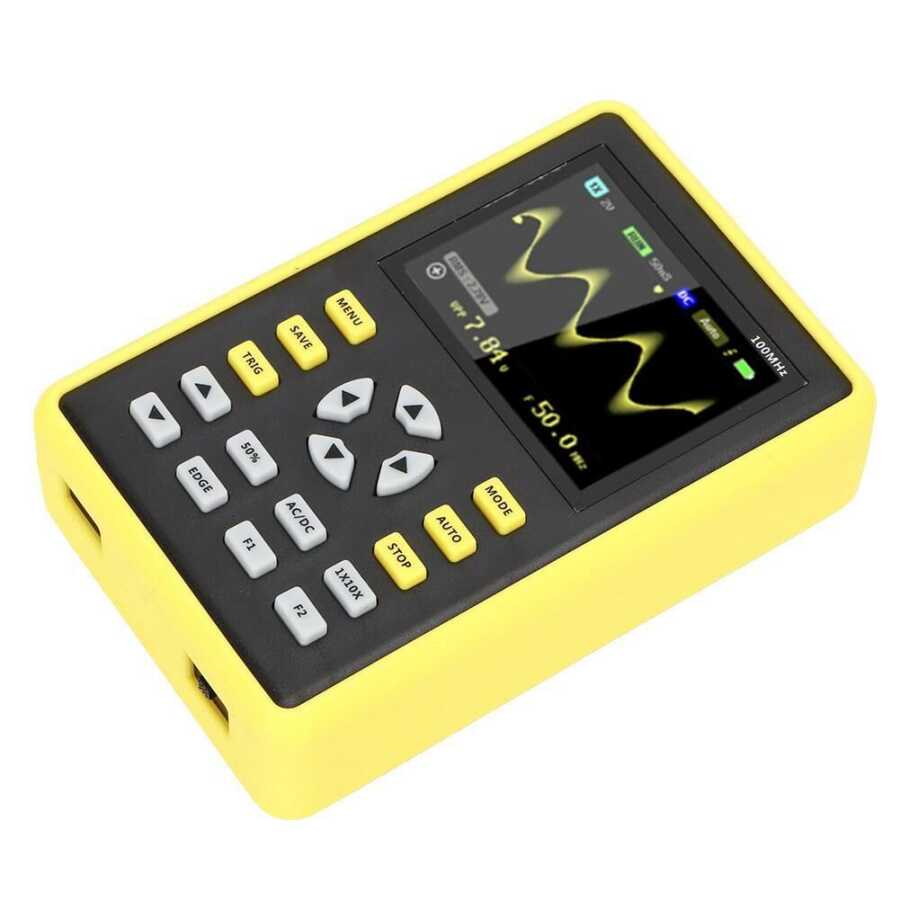

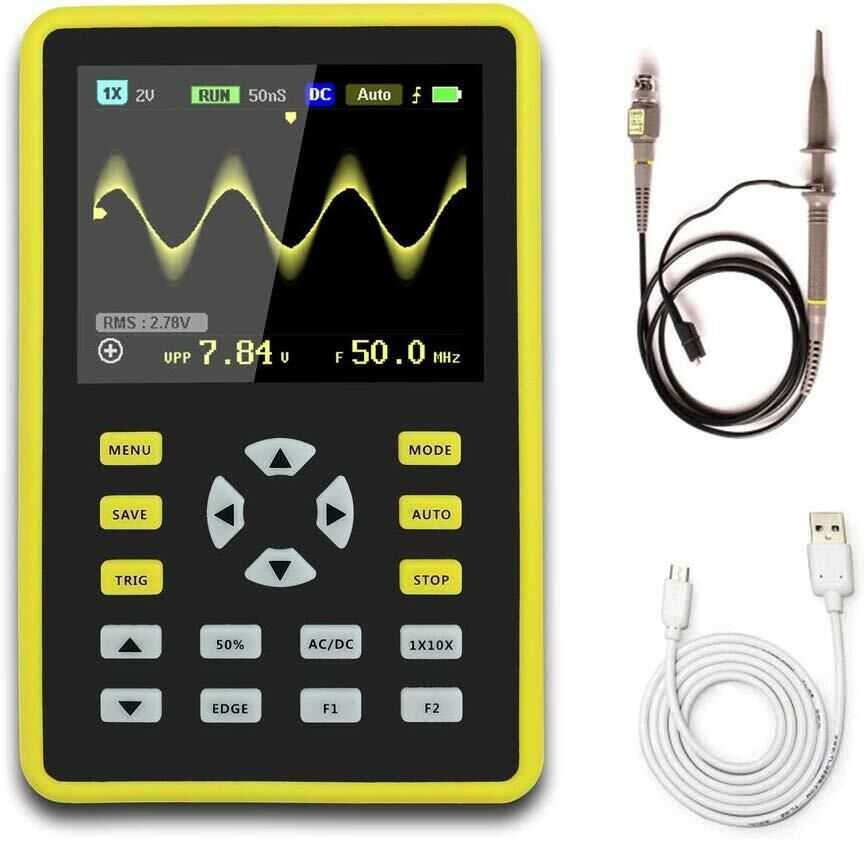

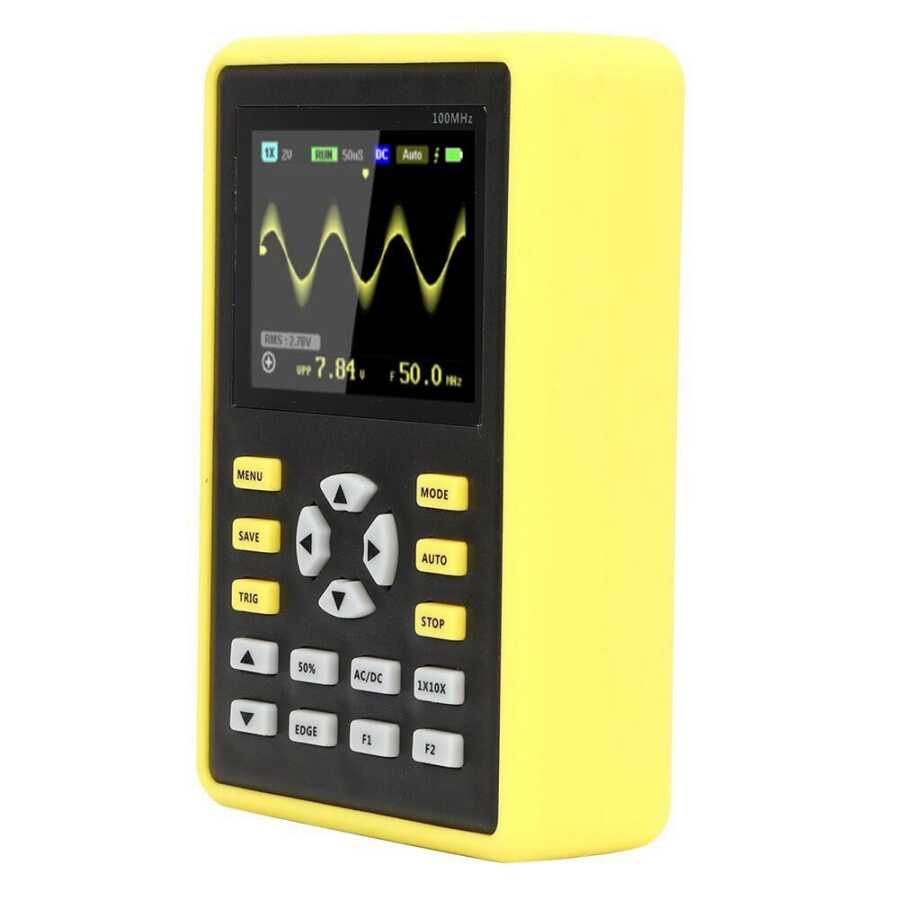

ADS5012H Digital Oscilloscope 100MHz 500Ms/s

ADS5012H is an oscilloscope with a real-time sampling rate of up to 500MS/s and an analog bandwidth of 100MHz. It is an extremely practical, cost-effective handheld oscilloscope. It can be freely used for both periodic analog signals and aperiodic digital signals. Built-in high voltage protection module can withstand 400V continuous voltage and 600V peak voltage. You don't have to worry about burning the oscilloscope because the high voltage is not set to 10X position. There is a large time-based scanning mode that monitors slow level changes. Equipped with high efficiency one-button AUTO, the measured waveform can be displayed without complicated adjustment. You can achieve high-definition results with the 2.4 inch 320*240 resolution IPS screen. Extremely convenient and fast waveform storage function, with built-in 64M storage space, you can store up to 2000 waveform images.

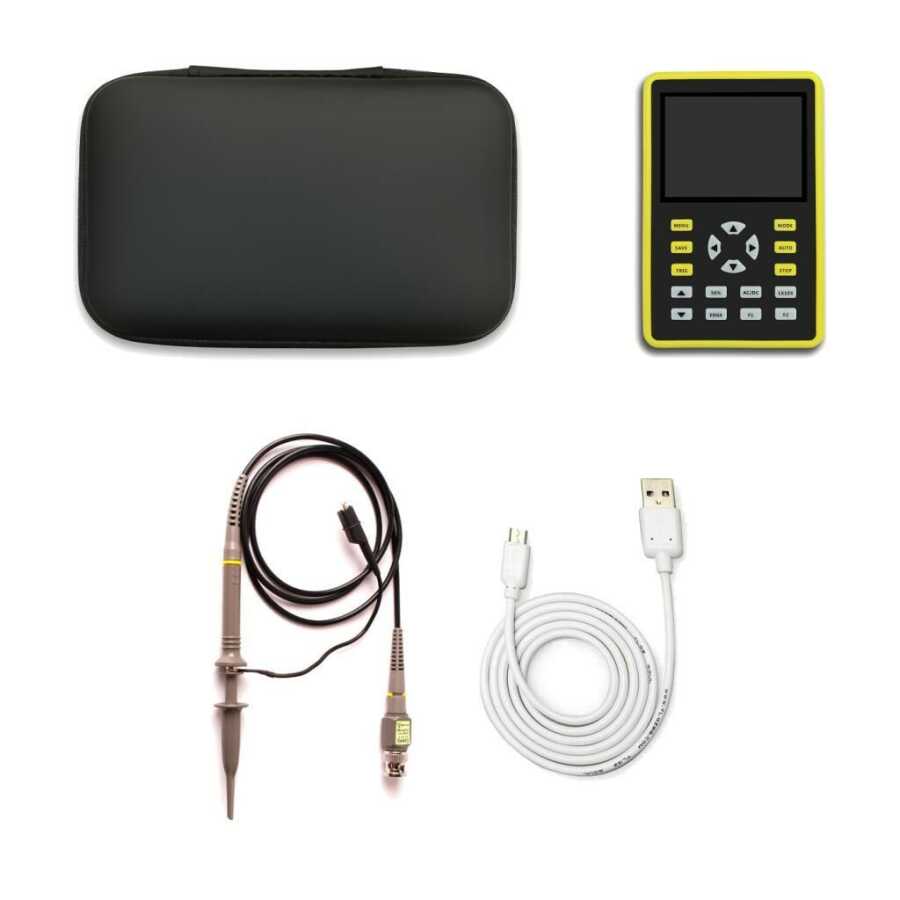

Featuring a built-in 5000mAh high-quality lithium battery, this product can be used continuously for 12 hours when fully charged. The oscilloscope has a high-quality silicone protective case and also a protective box.

5012H Oscilloscope Features:

Smart anti-burn, 1X 600V Can withstand voltage up to = 5MHz, 10X = 100MHz)
One-button waveform storage
Built-in 64M storage space, maximum storage of 2000 waveform photos
Powerful waveform file manager, Support thumbnail browsing, viewing, detail viewing, flipping, deleting and other functions
High measuring voltage range, 1X can measure 0~80V, 10X can measure 0~800V
According to 12 parameters measurement up to: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty +, Duty-, Time +, Time-, Time
At any time, waveform display (pause function) is frozen
Equipped with high efficiency One-key AUTO
Full trigger function (single, normal, automatic)
Built-in 5000mAh rechargeable lithium battery, fully charged for 12 hours continuous use
Screen brightness adjustment
Memory compression technology, waveform refresh screen does not flicker
Non-slip non-slip silicone case
Ultra-small volume, easy to carry

Specifications:

Analog bandwidth: 100MHz
Maximum real-time sampling rate : 500MS / s
Vertical sensitivity: 50 mV / div ~ 100 V / div
Horizontal time base range: 50S / div ~ 6nS / div
Maximum test voltage: 80 V (1X probe), 800 V (10X probe)
Storage depth: 128KB
Input resistance: 1M
ADC precision: 8 bits
Grip mode: AC / DC
Trigger mode: Single, Normal, Auto
Trigger edge: Rising / falling edge
External trigger voltage 0 - 80 V
Display: 2.4 inch - 320 * 240 - IPS process
Power supply: 5000 mAh lithium battery
Size: 114mm x 74mm x 33mm
Weight: 300g
