AK-ALL02-SL All In One 2 Multifunctional Control Panel

AK-ALL02-SL All In One 2 Multifunctional Control Panel

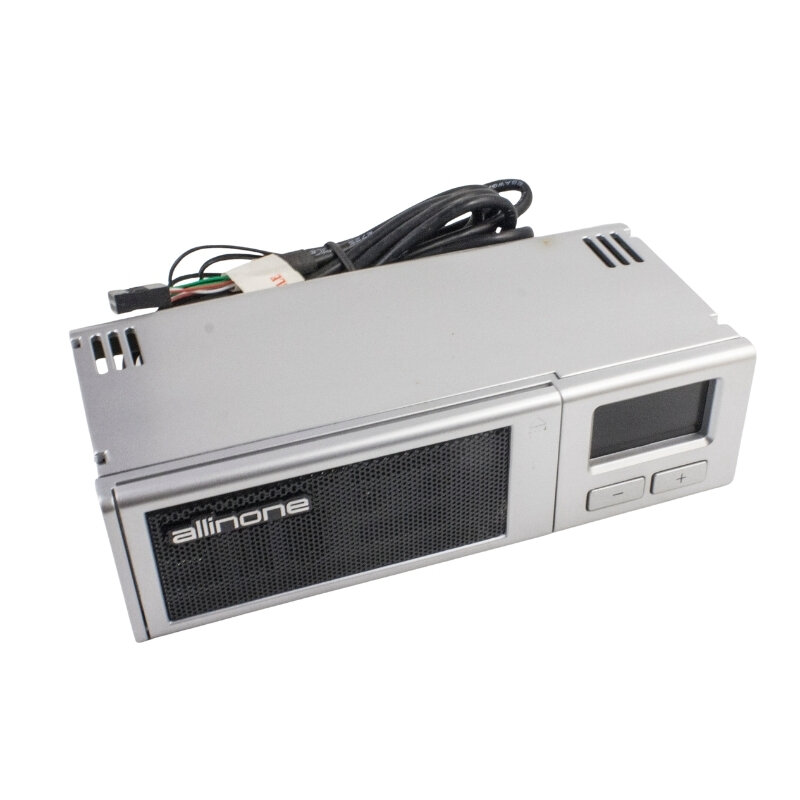

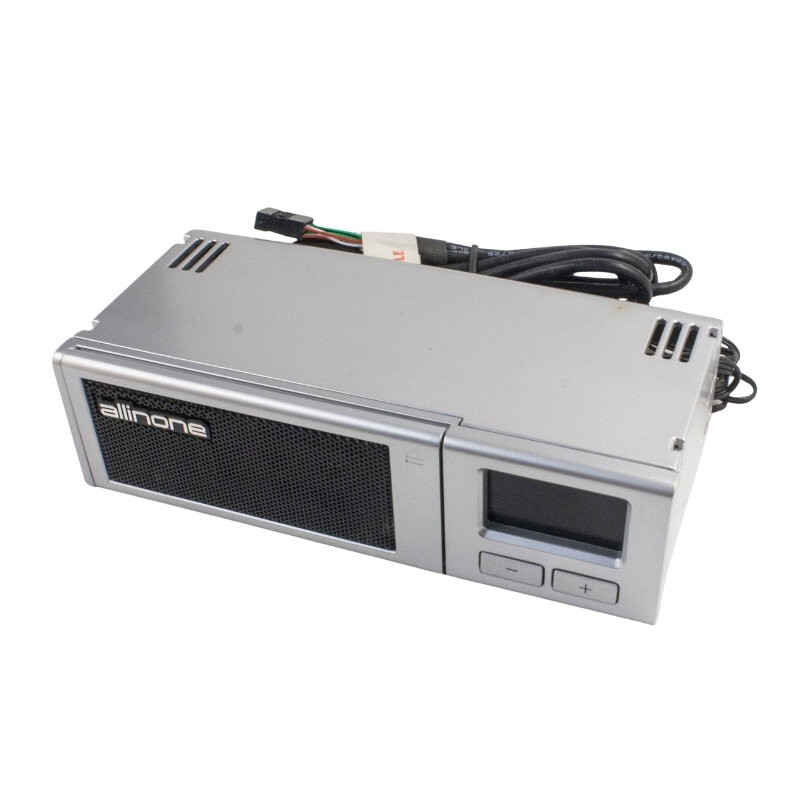

The AK-ALL02-SL All In One 2 Multifunctional Control Panel, a stylish control panel integrated into a 5.25-inch PC bay, provides greater control over the system and enhances multimedia functionality.

Compatible with all popular memory cards, accepts high-capacity cards, and absolutely no card adapter is needed.

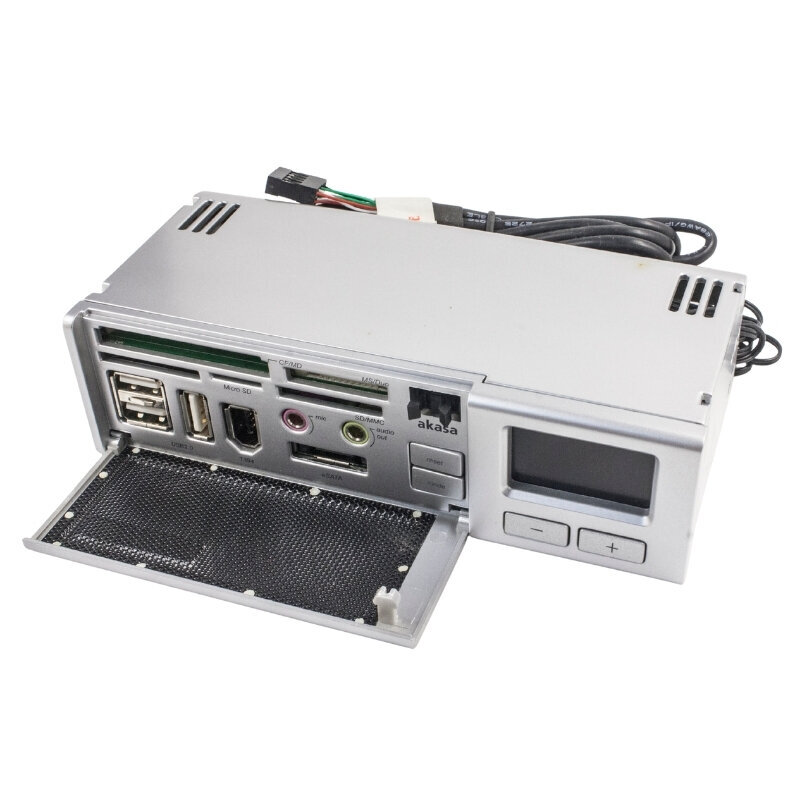

Easy-access multiple connections: eSATA, IEEE1394, HD Audio, and 3x USB2.0 ports are neatly concealed with a push-to-open cover, ready for use when needed.

Intelligent fan and temperature control: Continuously monitors the temperature in three system zones and provides automatic (temperature-controlled) or manual control of three fans. The color LCD screen displays the selected fan speed and thermal probe temperature.

Warning:Never turn on the system until the fans and power of the all-in-one panel are connected.
Incorrect installation may damage the computer.

Electrostatic discharge (ESD) may damage system components.
Use an ESD-controlled workstation. If you don't have such a workstation, wear an anti-static wristband or touch a grounded surface before using any PC components.

Manual

Features

• Fan Compatibility: 12V DC, 3-pin, 4-pin (PWM), max. 0.5A (each) RPM Display: 0000 ~ 9990 RPM Manual RPM Adjustment: Seven steps from 6V to 12V (in 1V increments) Automatic RPM Adjustment: Three steps; 7, 10 and 12V
• Low RPM Alarm Settings: 500 ~ 2000 RPM (in 100 RPM increments)
• Temperature display 0 - 90.0°C (32 - 194°F)
• High Temperature Alarm Settings: 40 - 80°C (104 - 176°F), in 5°C increments (9°F)
• Preset Alarm Values: Low fan RPM: 800 / High probe temperature 50°C (122°F)
• For Automatic Fan ControlThermal Probe Temperature
  • Temperature Range 0-54°C = fan voltage 7V

  • Temperature Range55-64°C = fan voltage 10V

  • Temperature Range65-90°C = fan voltage 12V
• Input power +5V / +12V DC, USB bus power
• I/O Ports: USB 2.0 × 3 / 1394 × 1 / eSATA × 1 / HD&AC' 97 Audio x 1
• Supported Memory Cards:
  • (CF) Compact Flash and (MD) Micro Drive
  • (MS) Memory Stick / Pro / Duo
  • (SD) Secure Digital / SDHC (high capacity) and MMC
  • (eX) Extreme Digital
  • (microSD) microSDHC, microSD
• Card reader interface USB 2.0
• Operating system compatibility Windows 2000 / XP / Vista

Package Contents

• 1x SATA Data Cable
• 1x Internal USB Cable
• 1x Internal IEEE 1394 Cable
• 1x Internal Audio Cable
• 1x Power Cable
• 3x Fan Cables
• 1x Screw and Adhesive Set
• 4x Temperature Sensors
