Arduino ESP8266 WiFi Shield

Arduino ESP8266 WiFi Shield

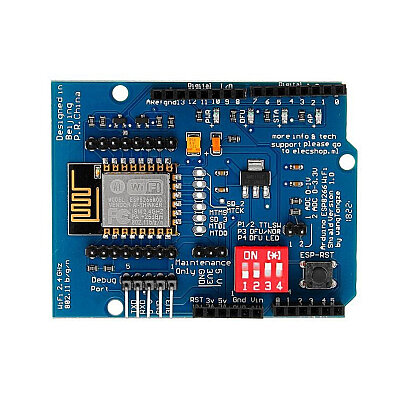

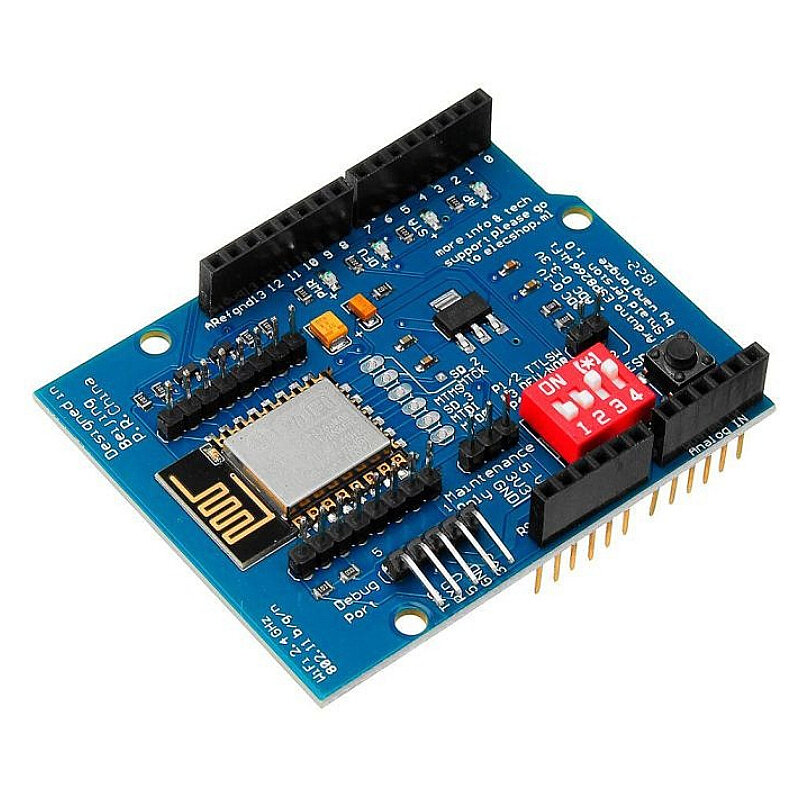

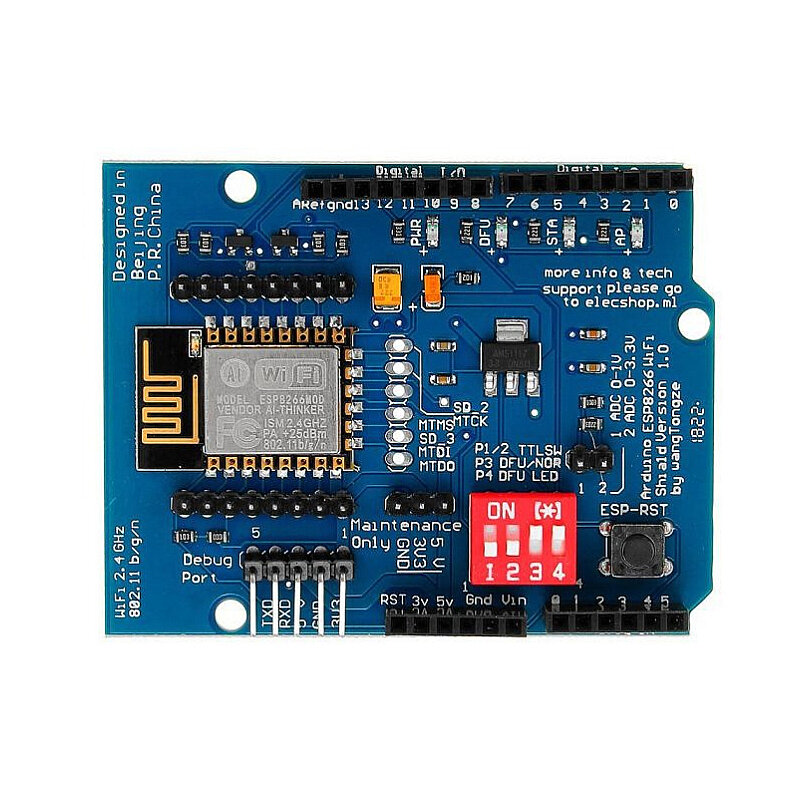

The Arduino ESP8266 WiFi Shield is an ESP8266-based expansion board designed to add 2.4GHz WiFi connectivity to the Arduino UNO R3, Mega, and other development boards that use the same standard pin layout. Thanks to its shield form factor, it mounts directly onto the Arduino board, eliminating the need for additional wiring.

Features

• Shield with a standard pin layout compatible with Arduino Uno
• 3.3V voltage regulator to power the ESP8266 with reduced noise
• Integrated ESP8266 module with PCB antenna
• DIP switch for selecting operating modes
• Integrated level shifter for serial communication with Arduino
• Metal shield to protect the ESP8266 from interference
• Design that allows for stacking additional shields
• Status LEDs: PWR, DFU, AP, STA
