Arduino MIDI Connector Shield



Through the Arduino MIDI Connector Shield.MIDI adapter board, your Arduino board or other microcontroller can access the powerful MIDI communication protocol. There are many similarities between the MIDI protocol and the asynchronous serial interface, so users can send MIDI event information using the microcontroller UART pins.

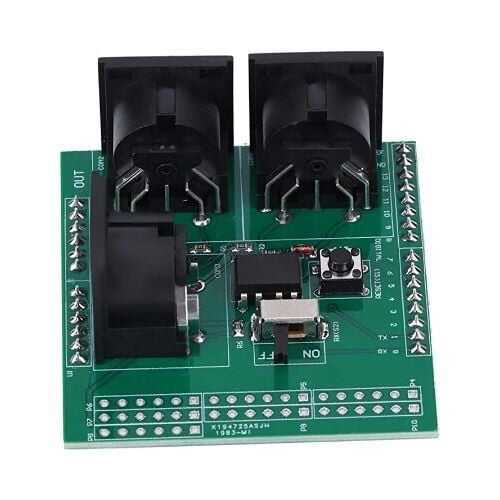

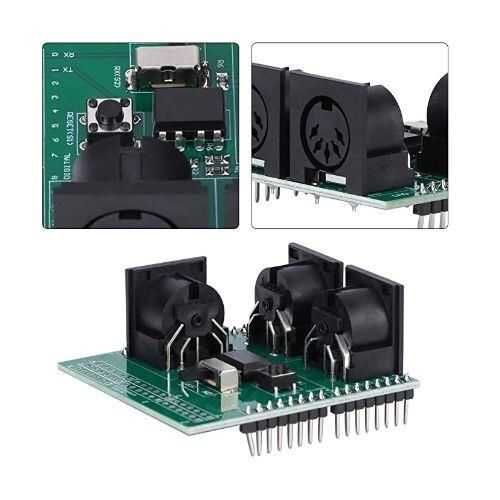

The MIDI board provides MIDI-IN and MIDI-OUT connections and a MIDI THRU port. MIDI - Ports are lightweight IN isolation to prevent ground loops. The MIDI board can be directly mounted on the Arduino board: connect MIDI-IN/THRU to the Arduino hardware RX pins and MIDI-OUT to TX. Arduino data and analog pins, power bus and bus can be turned off.

RUN/PGM switch allows user to serially program the Arduino board without removing the board.

PCB Dimensions: 57x57mm.
