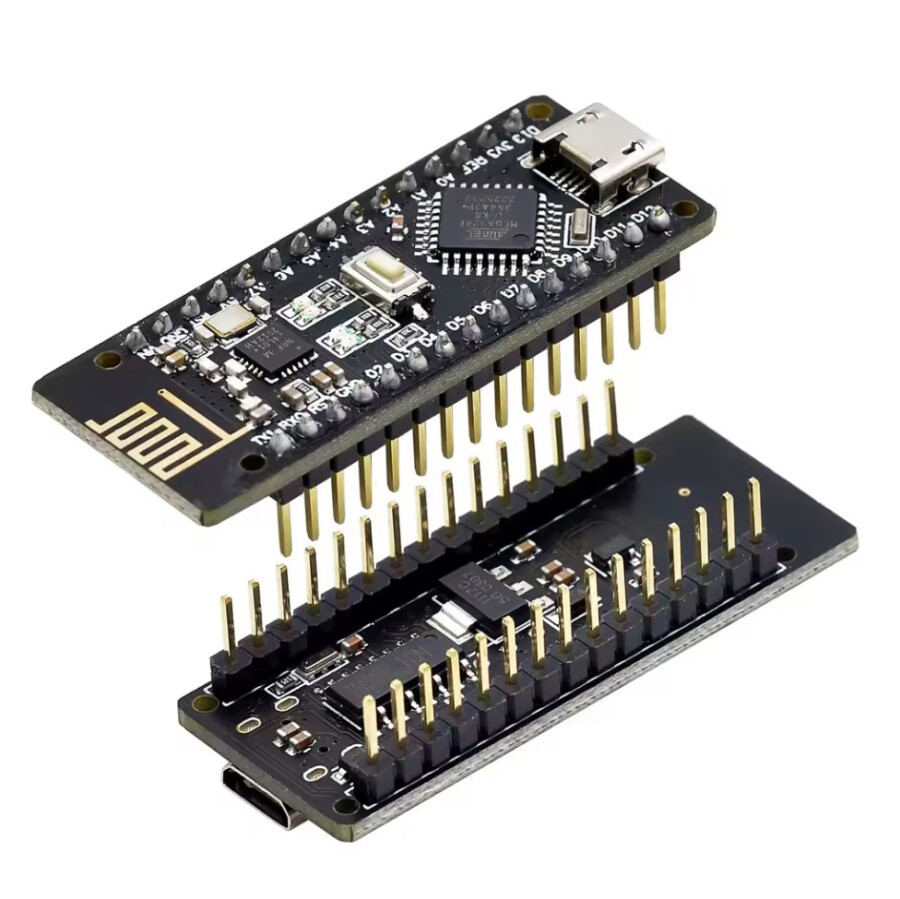

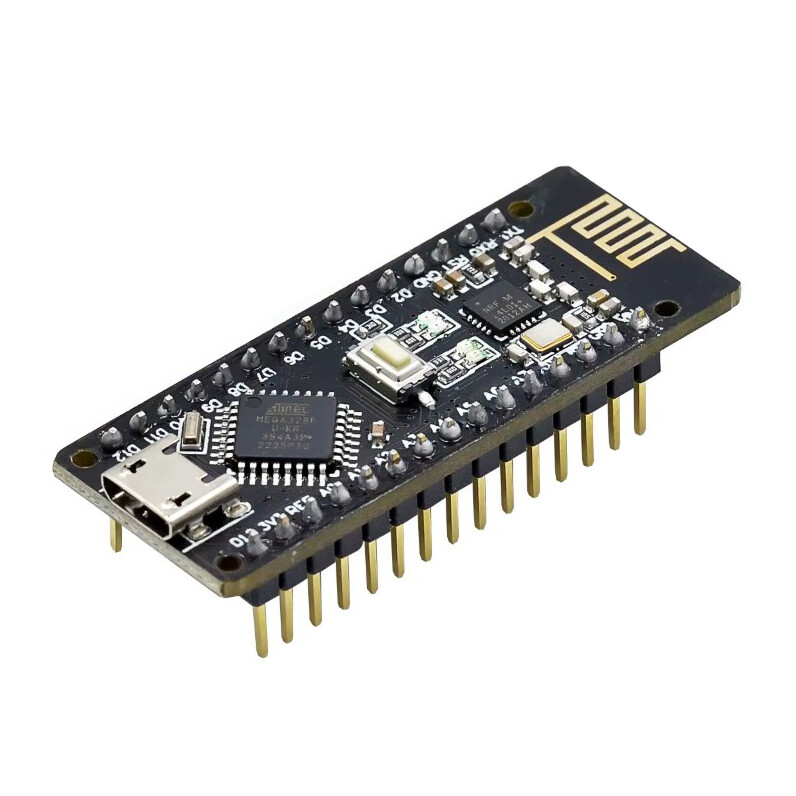

Arduino RF-NANO NRF24L01 Wireless Module - New Version

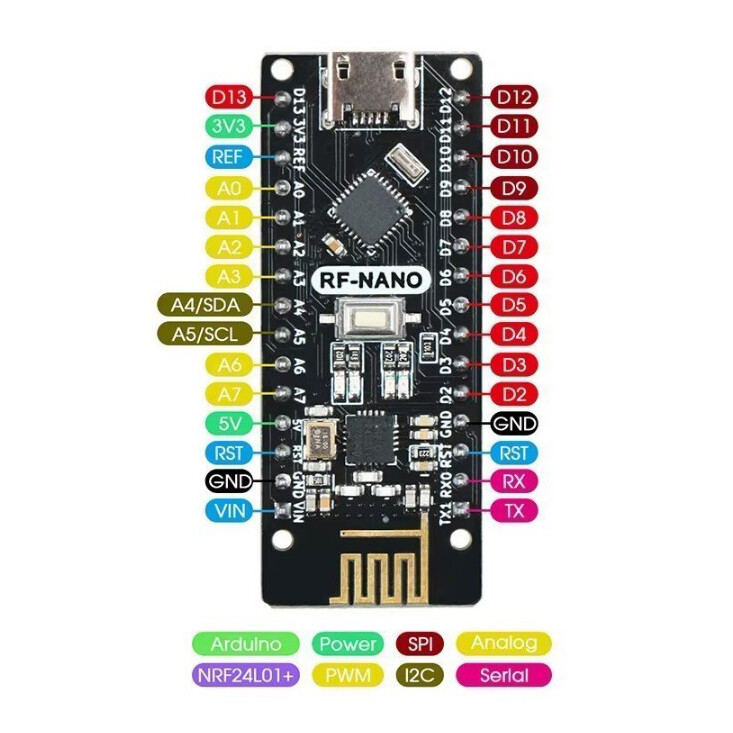

Arduino RF-NANO NRF24L01 Wireless Module - New Version combines the function and pinout of Arduino NANO V3 with the low-power 2.4GHz wireless transceiver chip nRF24L01+. The NANO and the wireless chip communicate using the SPI interface, which occupies 5 GPIOs on the NANO and eliminates the ICSP header.

The wireless range is about 100m, and the power consumption of the wireless modem only adds about 12mA to the NANO.

Based on 32kB Atmega328P-AU with 16MHz and micro USB port. Our NANO V3 module comes with CH340G USB-UART chip, the most common USB TTL interface chip in the world.

Features

Supply voltage:
USB: 5V DC
VIN pin: 7-12V DC
GPIO voltage: 5V
Maximum GPIO current: 40mA
Processor: ATmega328
Clock frequency: 16MHz
Flash: 32KB
SRAM: 2KB
EEPROM: 1KB
RF chip: NRF24L01
USB to serial converter: CH340
GPIO pin count: 22
PWM pin count: 6
Analog input pin count (ADC): 8
Analog output pin count (DAC): 0 (PWM only)
Dimensions PCB: 48 x 19mm
