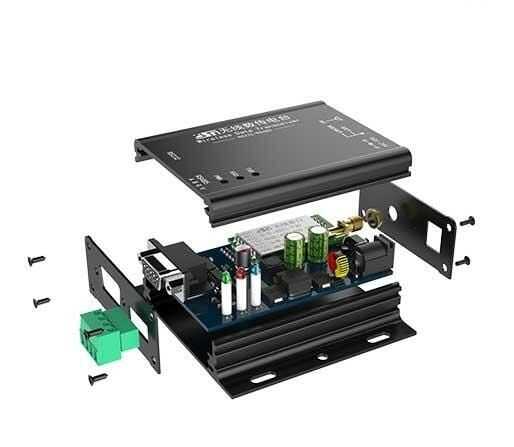

AS32-DTU20 SX1278 868Mhz 100mW Transceiver Module

AS32-DTU20(868M), 868MHz, 100mW, is a high stability, industrial grade wireless data transmission station . The radio core module uses SX1276 as a radio frequency chip, LORA spread spectrum modulation, and RS232 and RS485 interfaces. The communication distance is long, the anti-interference feature is strong, and the data transmission is stable.

Technical Specifications

Data interface: RS232 / RS485

Transmitting power: 11~20dBm

Operating frequency band: 862-893MHz

Communication distance: 4km

Features: LoRa broadcast spectrum, European frequency band

Product size: 95*84*25 mm

Air speed: 0.3~19.2kbps

Package Content

AS32-DTU20 SX1278 868Mhz 100mW Transceiver Module

12V 1A Adapter

RS232 Cable

Antenna

Datasheet
