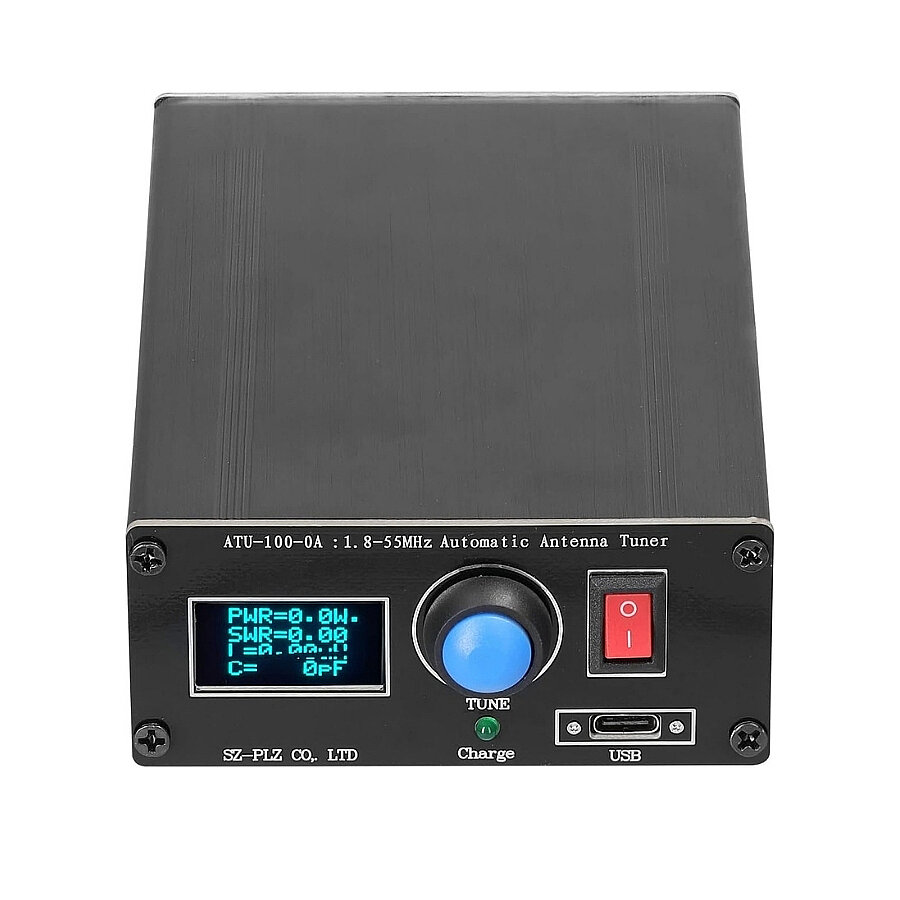

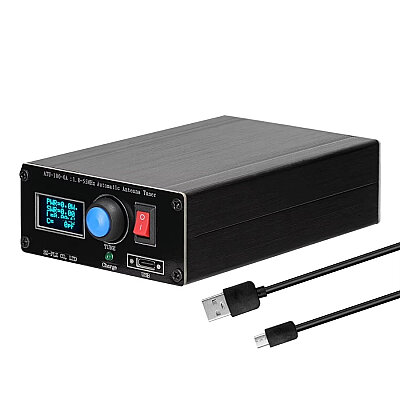

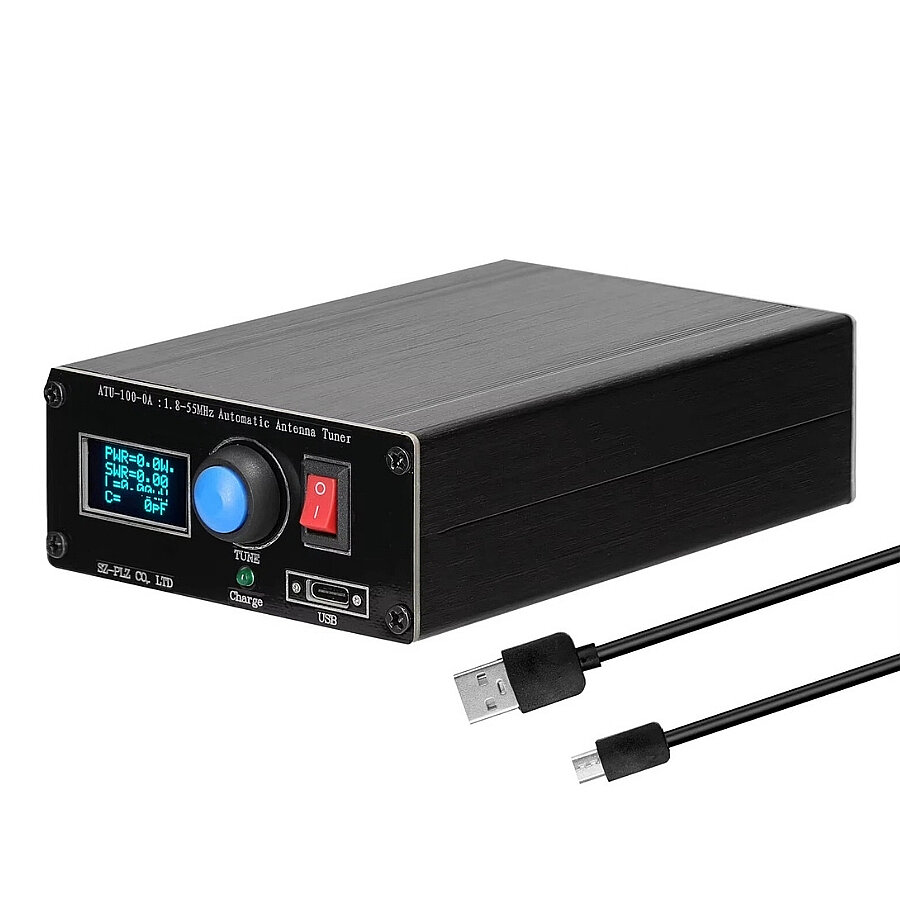

ATU-100-0A 1.8-55MHz Mini Automatic Antenna Tuner
The ATU-100-0A 1.8-55MHz Mini Automatic Antenna Tuner is a portable antenna matching device designed to automatically correct impedance mismatches between the transmitter and the antenna in amateur radio and HF/VHF RF systems.
The device features AUTO and TUNE functions. When the TUNE process is initiated, the internal L/C network attempts to achieve a lower SWR by testing various combinations. It is recommended to perform the initial tuning process using low-to-medium RF power, around 20–30W.
If the SWR remains above 3.0 after tuning, it is recommended not to apply high power.Specifications
- External Power Supply: 10–15V DC, typically 12/13.8V
- Charging Input: USB Type-C
- Maximum Current Consumption: Approx. 400mA
- Typical Current: Approx. 100–200mA
- Operating Frequency: 1.8–55MHz
- Coverage: HF up to the 6m band
- Matching Structure: Relay-controlled L/C network
- Number of Inductors: 7
- Number of Capacitors: 7
- Maximum Inductance: 8.53µH
- Minimum Inductance Step: 0.05µH
- Maximum Capacitance: 1869pF
- Minimum Capacitance Step: 10pF
- Maximum Operating Power: 100W
- Maximum Measurable RF Power: 150W
- Minimum RF Power to Start Tuning: 5W
- Minimum Measurable RF Power: 0.1W
- Power Measurement Step (0–10W): 0.1W
- Power Measurement Step (Above 10W): 1W
- Power Measurement Accuracy: Approx. ±10%

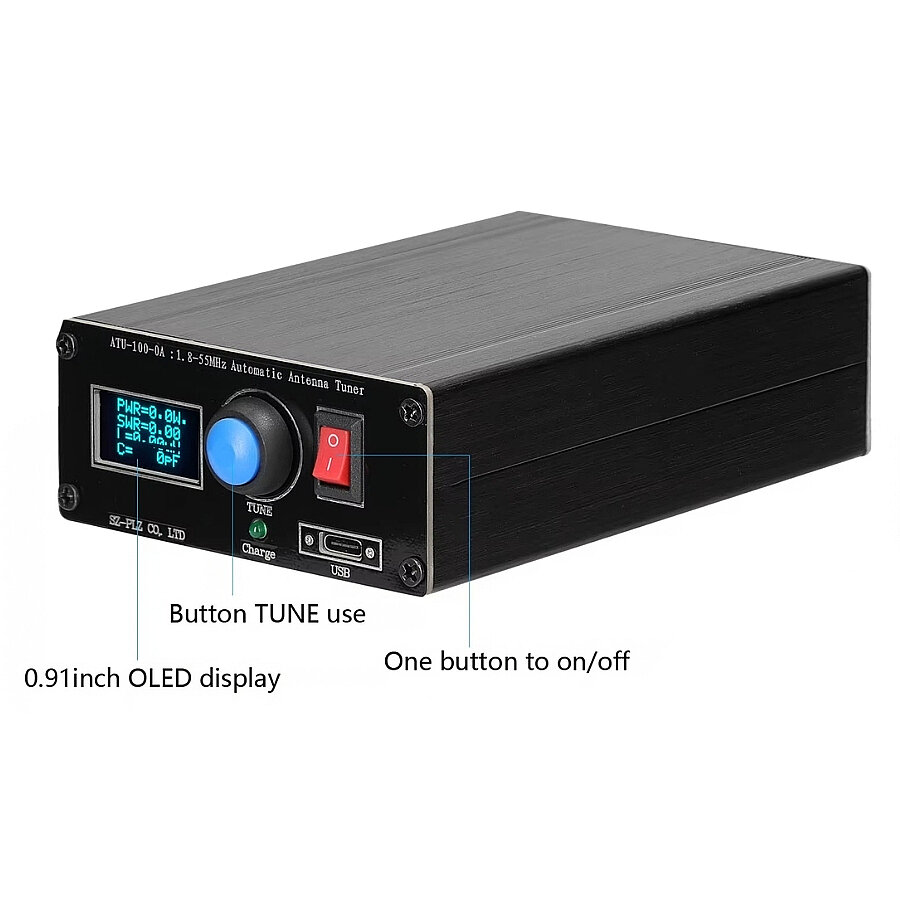

- Display: 0.91" OLED
- Battery: Built-in Li-ion
