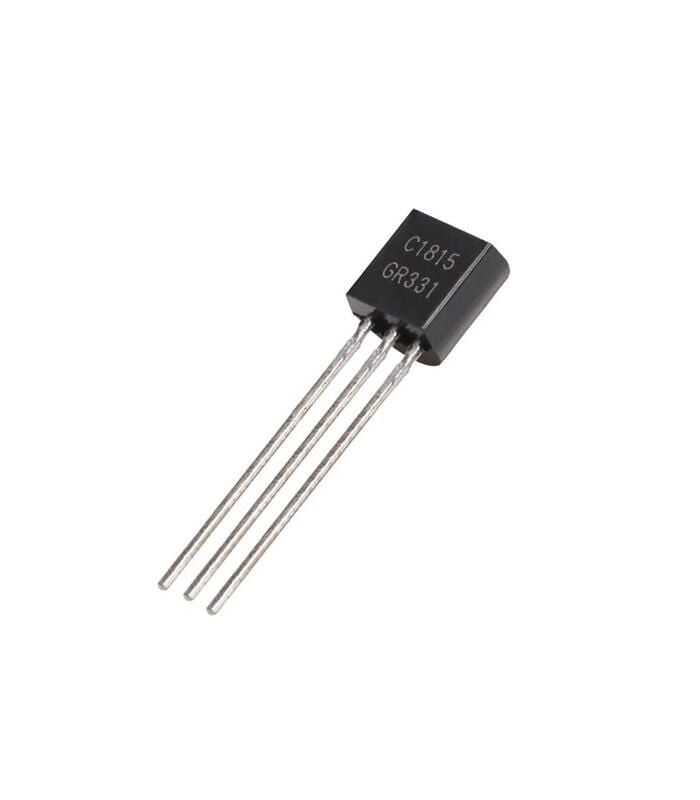

C1815 - TO92 NPN Transistor

C1815 is a general purpose BJT transistor, in this article we will cover C1815 transistor details about its pinout, equivalent, uses, features, description and where and how to use this transistor in an electronic circuit. .

Equivalent Transistors:

2N2222, 2N3904, C945, 2SC3198 (The pin configuration of SOME transistors is different from C1815. (It is recommended to check the pin configuration of the transistor before changing it in a circuit.)

Usage Fields

Sensor Circuits
Audio Preamplifiers
Audio Amplifier Stages
Switching Loads Below 150mA
RF Circuits

C1815 Features

Package Type: TO-92
Transistor Type: NPN
Maximum Collector Current (IC): 150mA
Max. Collector-Emitter Voltage (VCE): 50V
Max. Collector-Base Voltage (VCB): 60V
Maximum Emitter-Base Voltage (VEBO): 5V
Max. Collector Dissipation (Pc): 400 milliWatt
Maximum Transient Frequency (fT): 80 MHz
Minimum and Maximum DC Current Gain (hFE): 70 – 700
Max. Storage and Operating Temperature: Must be -55 to +150 Celsius

C1815 Datasheet
