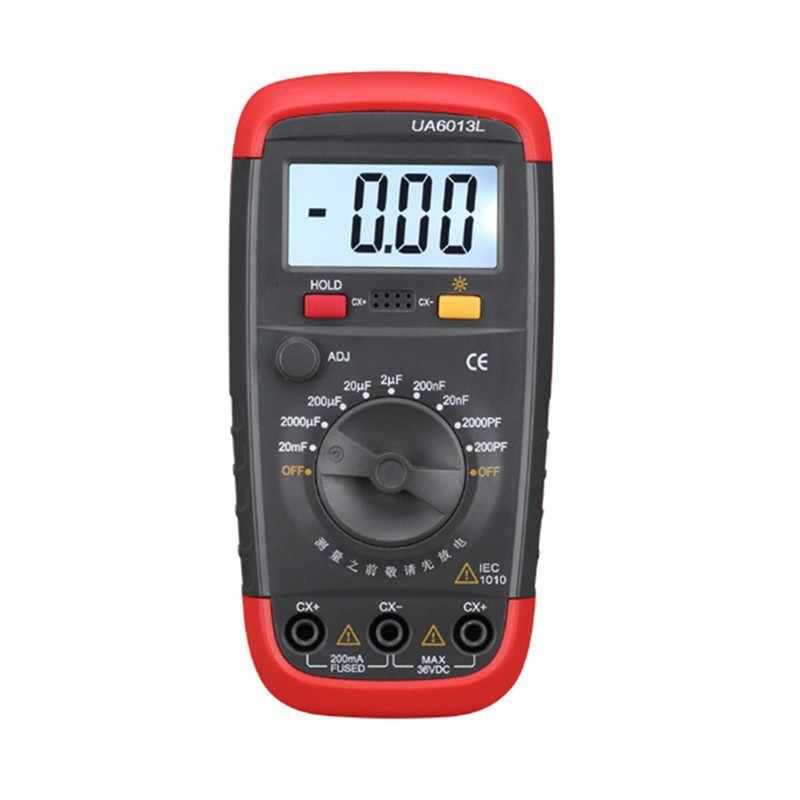

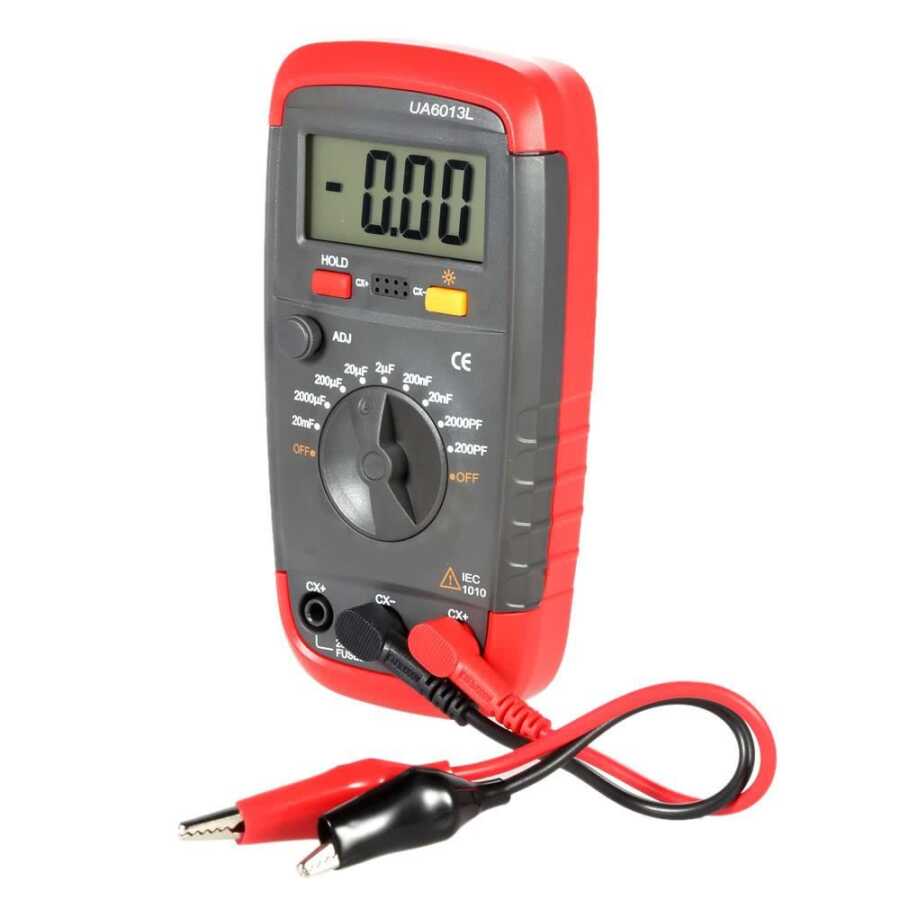

Capacitor Meter UA6013L - Measuring Instrument Features

UA6013L High Precision Digital LCD Capacitor Capacitance Meter Tester. It is a professional capacitance meter with wide measuring range, stable performance and accuracy result. Easy to read with large LCD display and white backlight.

Applied with CMOS dual slope A/D converter, which is automatic in zeroing and polarity selection

Wide measuring range, data hold function, more practical

Large LCD display with white backlight, easy to read

Maximum display value: 1999(3 1/2)

Low battery indicator

Technical Specifications

Measurement Range: 200pF / 2nF / 20nF / 200nF / 2μF / 20μF / 200μF / 2000μF / 20mF

Accuracy: ±0.5%±20digit(200pF/2nF/20nF/200nF/2μF/20μF/200μF) / ±2.0%±20digit(2000μF) / ±4.0%±20digit(20mF)

Resolution: 0.1pF / 1pF / 10pF / 0.1nF / 1nF / 10nF / 0.1μF / 1 μF / 10μF

Test Frequency: 800Hz(200pF/2nF/20nF/200nF/2μF) / 80Hz(20μF) / 8Hz(200μF/2000μF/20mF)

Power Supply: 1 * 9V Battery (not included)
