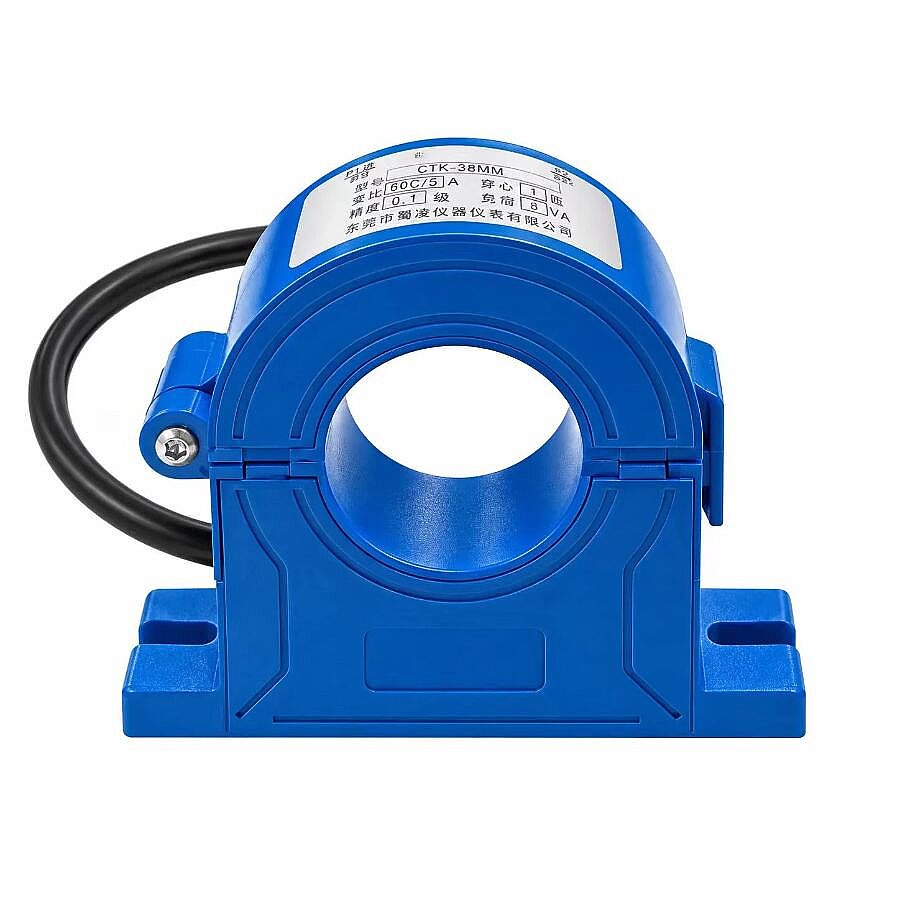

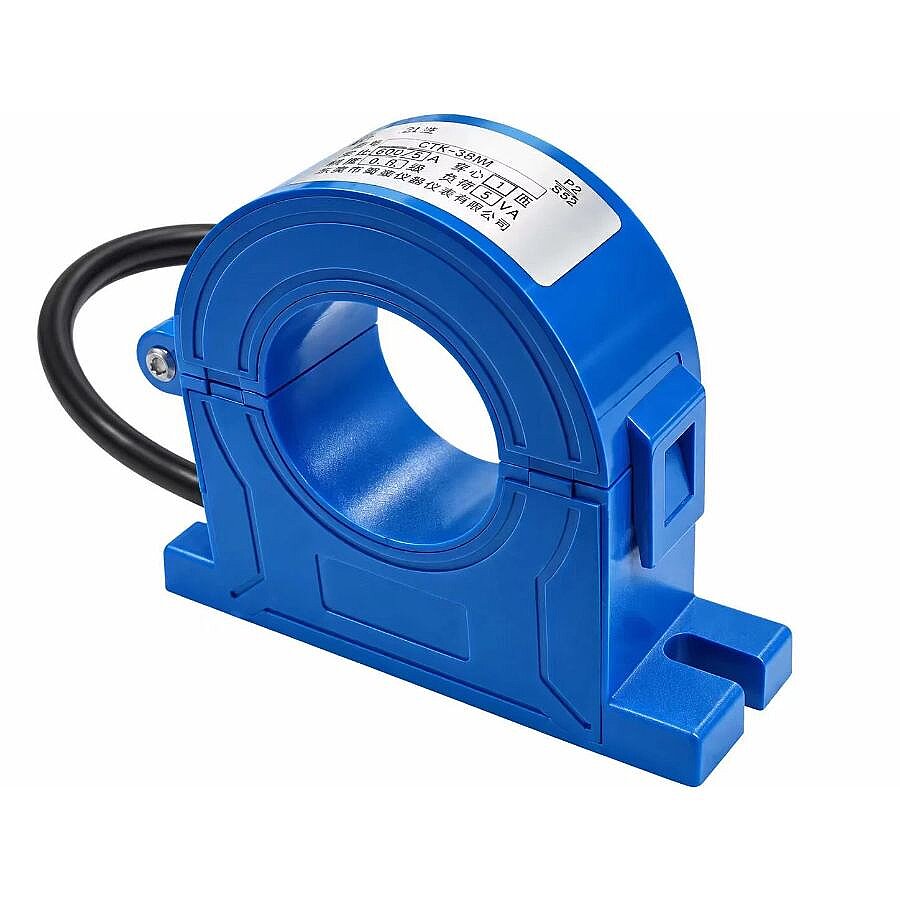

CTK-38MM 600/5A 5VA Hall Current Sensor - Current Transformer

CTK-38MM 600/5A 5VA Hall Current Sensor - Current Transformer

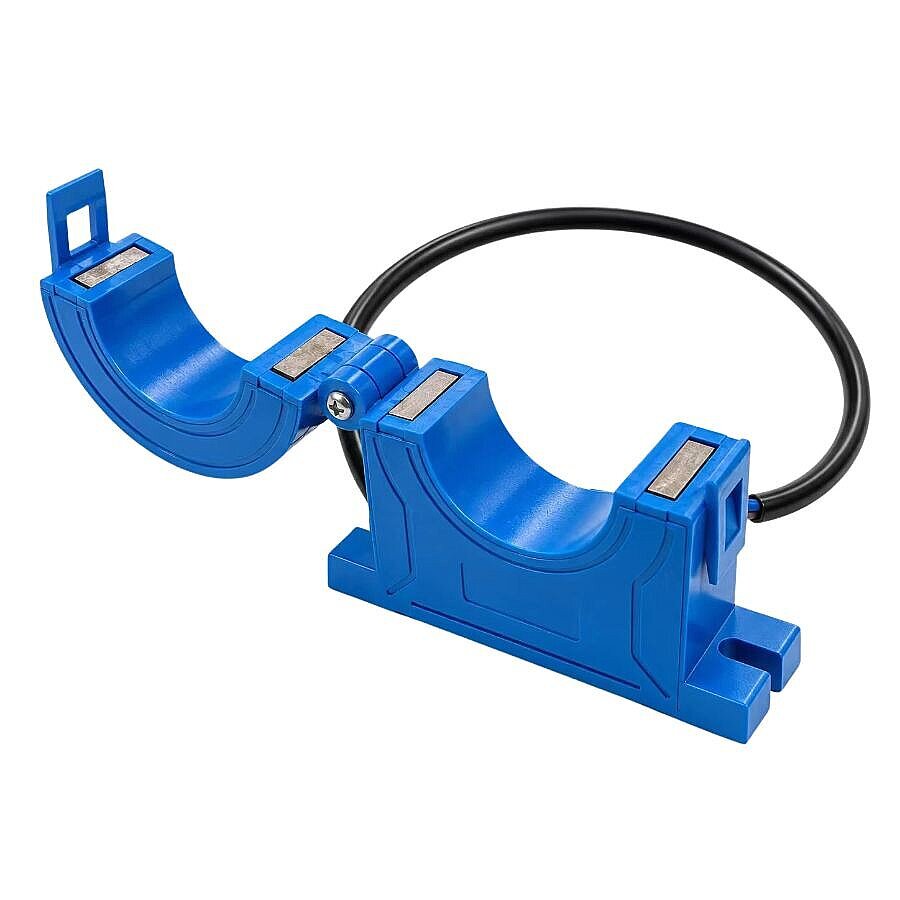

The CTK-38MM 600/5A 5VA Hall Current Sensor – Current Transformer features an open-type design that facilitates easy installation and maintenance, making it ideal for a wide range of applications. It provides reliable, precise measurements and delivers valuable data for power quality analysis and equipment protection. Its high-quality construction and advanced technology make it a dependable solution for businesses looking to enhance their electrical systems.

The product meets the UL94-V0 standard for flame retardancy, features a nominal insulation resistance of 1000MΩ, an operating voltage of 0.66/0.72kV, and a withstand voltage rating of 2kV/50Hz/min. It operates within a frequency range of 50–200kHz and a temperature range of -40°C to +85°C. This device is used for load current detection, power measurement, and microprocessor-based protection.

Specifications

• Voltage Level: 0.66 / 0.72kV
• Current Range: 600/5A
• Burden (Load): 5VA
• Cable Length: 50cm
• Inner Diameter: 38mm
• Dimensions: 96x26mm
