ACS758LCB 100A Linear Hall Current Sensor Module

ACS758LCB 100A Linear Hall Current Sensor Module

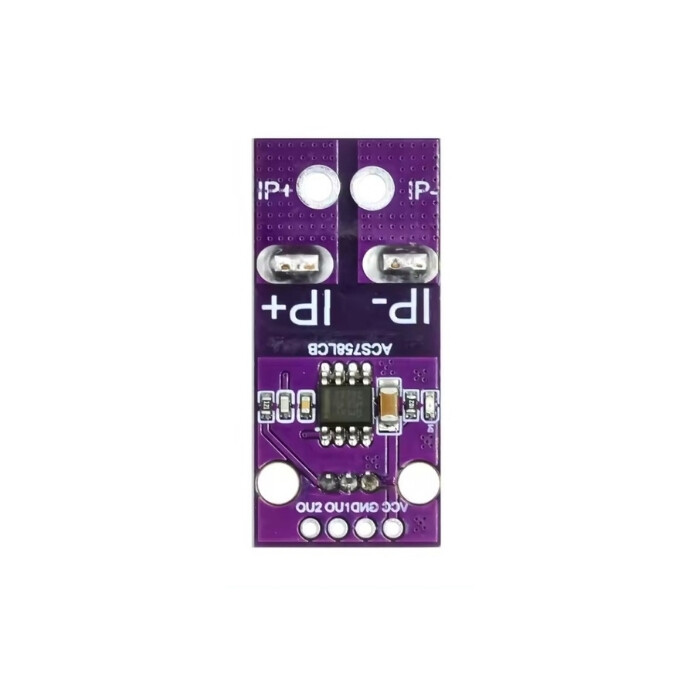

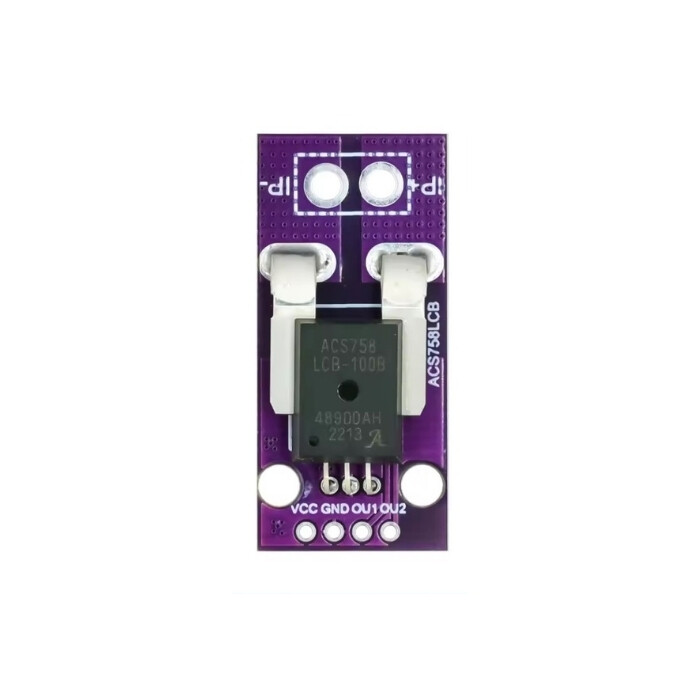

The CJMCU-758 is a current sensing module that uses the ACS758-LCB current sensor. The ACS758 consists of a precision, low-offset linear Hall sensor circuit with a copper current path close to the product. The current applied through the copper current path can produce a magnetic field, which can be induced by the integrated Hall lC and converted into a proportional voltage.

Specifications

• Working voltage: 3V-5V
• Sensing current: 100A
• Static output voltage: VCCi2
• Working current: 135m2A (MAX)
• Storage temperature range: -65 C-165 C
• Maximum output current (VIOUT-GND): 3mA
• Internal bandwidth: 120 KHz
• Module size: 37mm X 17.5mm
