WCS1600 100A Hall-Effect Linear Current Sensor

WCS1600 100A Hall-Effect Linear Current Sensor

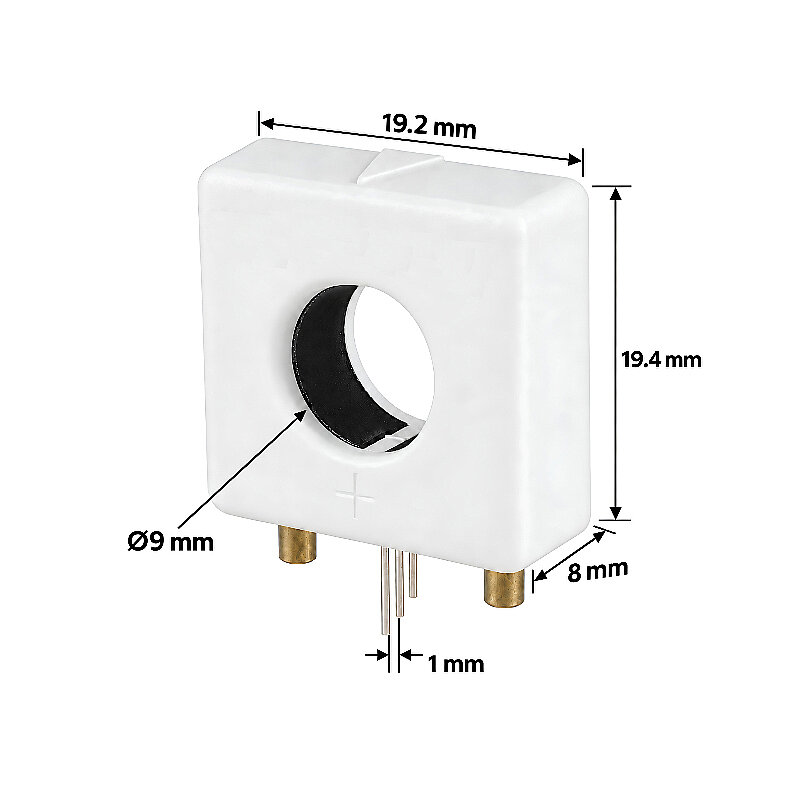

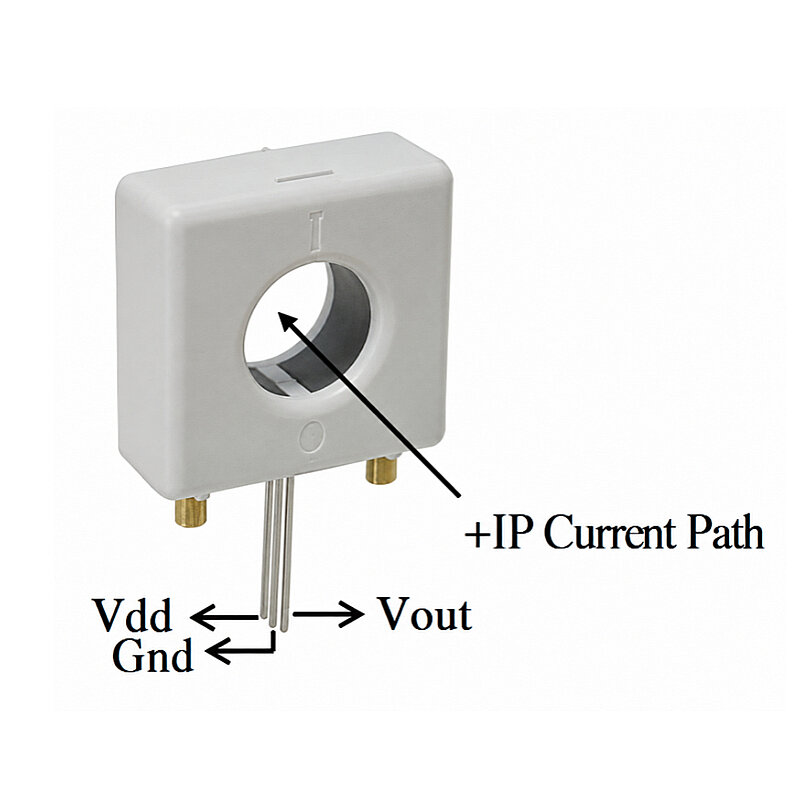

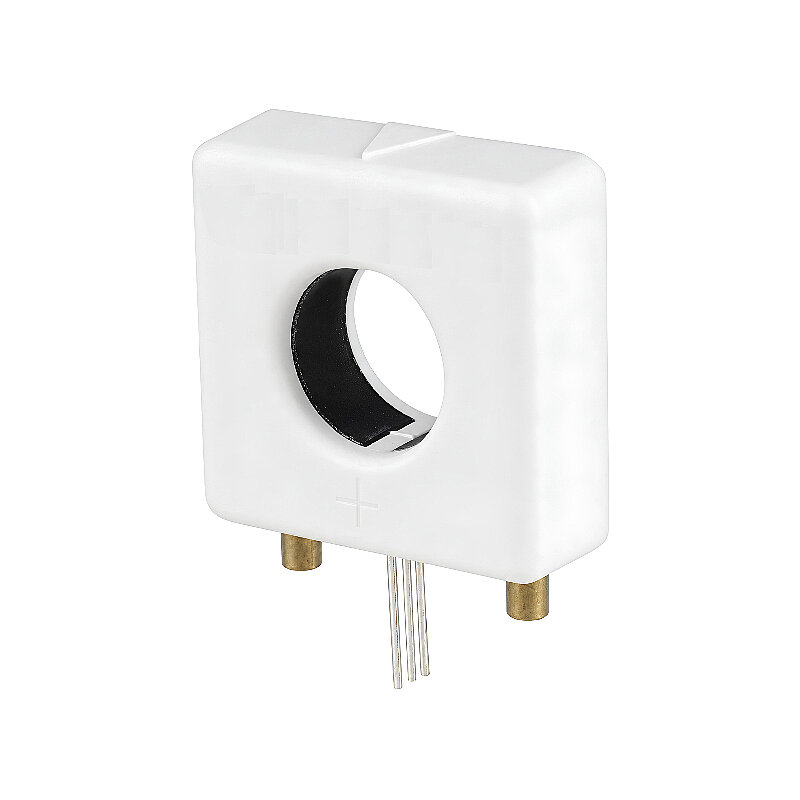

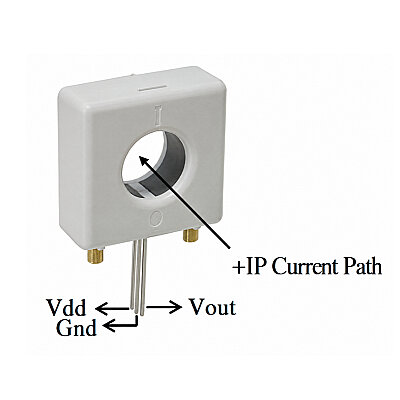

The WCS1600 100A Hall-Effect Linear Current Sensor is a linear current sensor based on Hall-effect technology, designed for measuring current in high-current AC and DC lines. Thanks to the 9mm diameter pass-through hole at the center of the sensor, the current-carrying wire can be routed through the unit, allowing the current value to be detected without making direct electrical contact.

The Hall-effect measurement method ensures galvanic isolation between the high-current line and the sensor's electronic output side. This configuration; It does not require the microcontroller, ADC, or other measurement circuits to be directly connected to the high-current conductor.

Specifications

• Supply Voltage: 3V - 12V DC
• Sensor Type: Hall-effect linear current sensor
• Measurement Type: AC and DC current
• DC Current Measurement Range: Up to ±100A
• AC Current Measurement Range: Up to 70A RMS
• Reference Supply Voltage: 5V
• Sensitivity: Approx. 12mV/A @ 5V
• Zero-Current Output (at 5V Supply): Approx. 2.5V
• Output Type: Analog voltage
• Output Structure: Ratiometric
• Conductor Pass-through Hole: 9mm
• Bandwidth: Approx. 23kHz
• Supply Current: Typically approx. 3.5mA
• Basic Isolation Voltage: 4000V
