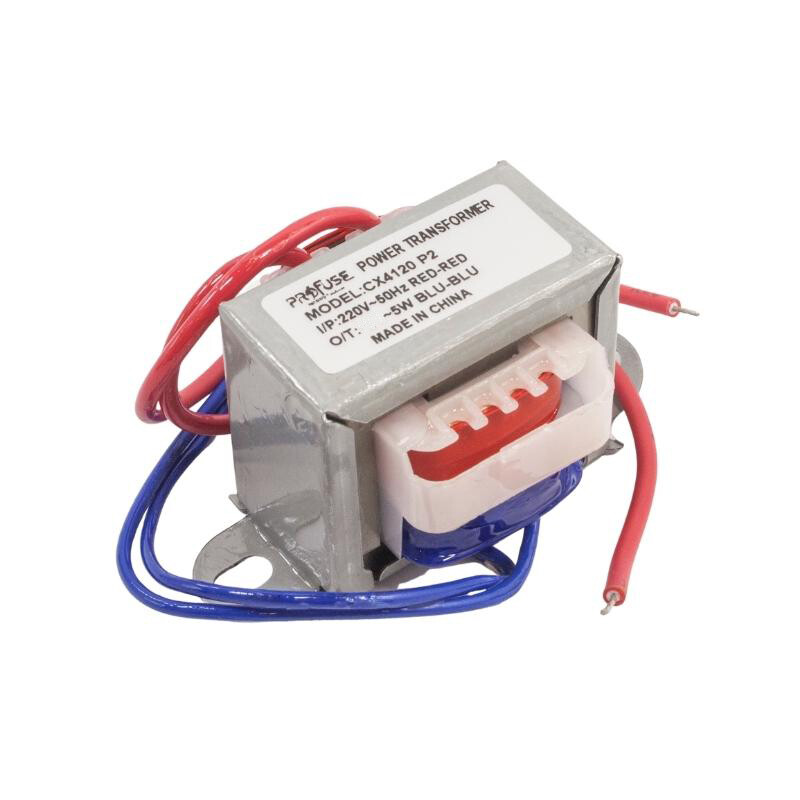

CX-4120 5W 9V AC Power Transformer

CX-4120 5W 9V AC Transformer - Transformer

Transformer or transformer is an electrical device that connects two or more electrical circuits together by electromagnetic induction. It transfers energy from one electrical circuit to another electrical circuit via the electromagnetic field. Transformers are machines that make the desired change in the voltage and current values ​​of electrical energy at a certain power.

Profuse brand transformers are high quality It is made of silicone and sheet steel. They are single-phase circuit elements used to obtain the desired voltage and current values ​​in AC circuits. For product connection, the supply is made from red cables and the output is made from blue cables.

Features

• Model: CX-4120
• Supply Voltage: 220V AC
• Output Voltage: 9V AC
• Maximum Output Current: 0.55A
• Output Power: 5W
• Frequency: 50 Hz
• • Input: Red Cable
  • Output: Blue CableConnection
• Single Phase
• Material: High Quality Silicone and Steel Sheet
• Coil Material: Copper Enamelled Wire
• Weight: 215g
