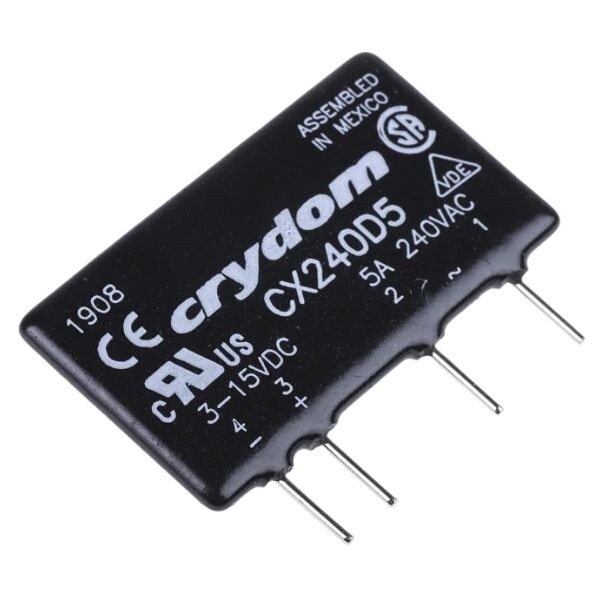

CX240D5 3-15V 5A SSR Solid State Relay

CX240D5 3-15V 5A SSR Solid State Relay

CX240D5 3-15V 5A SSR Solid State Relay is a PCB type compact solid state relay (SSR). It offers a maintenance-free solution compared to mechanical relays thanks to its silent switching feature. It is an ideal choice for industrial automation, HVAC systems, motor control and power management applications.

Features

• Control Voltage: 3 – 15 VDC
• Load Voltage: 24 – 280 VAC
• Load Current: 5A
• Switching Type: Zero-crossing
• Mounting Type: Solderable on PCB, SIP format
• Insulation Voltage: 4000 Vrms (control-load)
• Operating Temperature: -10°C ~ +80°C
• Dimensions: 43.1x7.6x25.4mm

Datasheet
