DSN-VC288 DC 100V 10A Voltmeter - Ammeter
A panel type voltmeter - ammeter that can measure dc voltage between 0-100V and ampere between 0-10A.

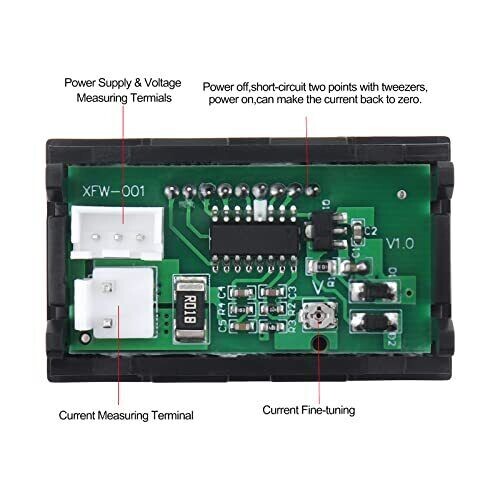

The device can measure between 0-100v. However, the device's own operating range is 0-30V. Therefore, care should be taken when making connections. As shown in the 4th image, red and yellow cables can be fed from the device to be measured for measurements between 0-30v, while for higher measurements, the yellow cable should be fed with an external 0-30v source.
Features :
- Voltmeter operating voltage: DC 4.5 - 30V (If you apply voltage more than 30V, the product will break.)
- Voltmeter measurement range: DC 0 - 30V DC 0 - 100V
- Current measurement range: DC 0 - 10A
- Voltage sensitivity: 0.1V
- Current sensitivity: 0.01A
- Display precision: 1% (± 1 digit)

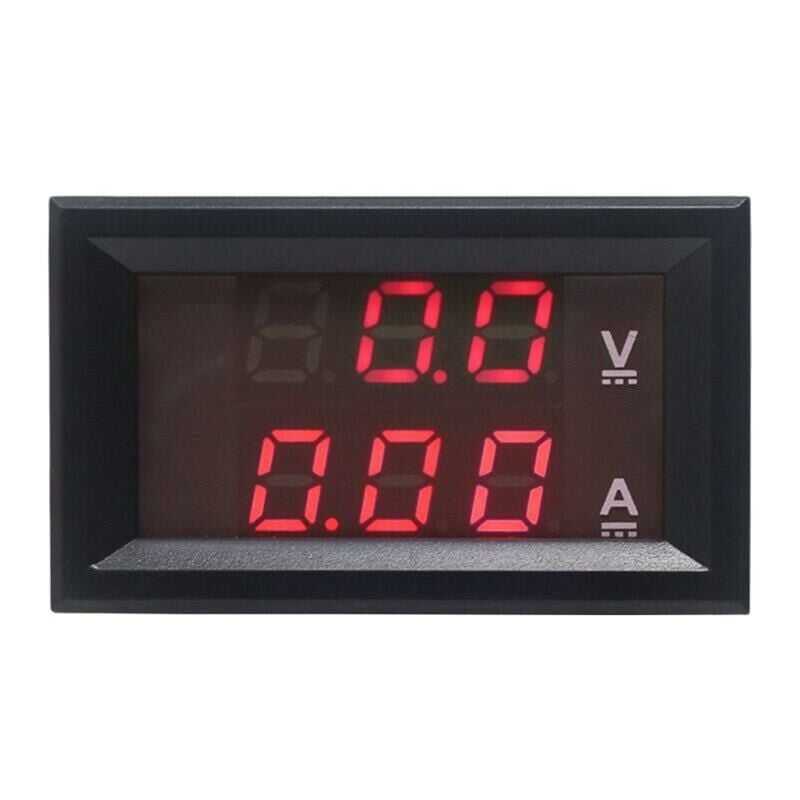

- 2 pieces of 3 digit 0.28” 7 segment displays
- Refresh Rate: 300ms

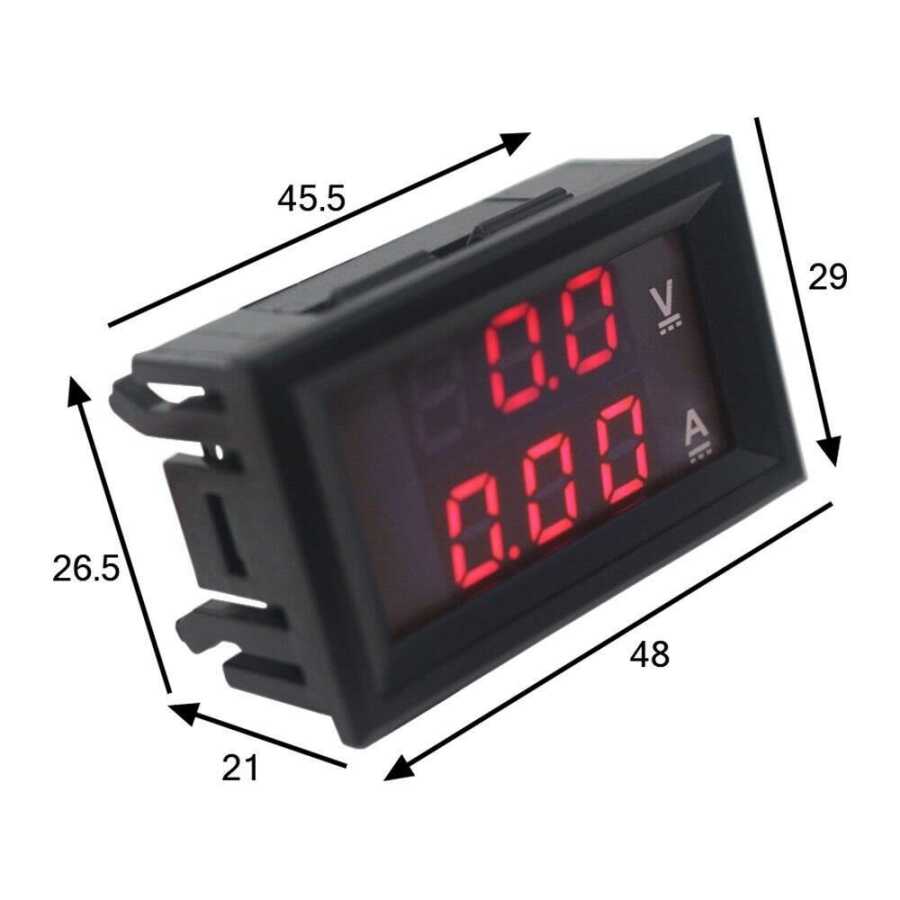

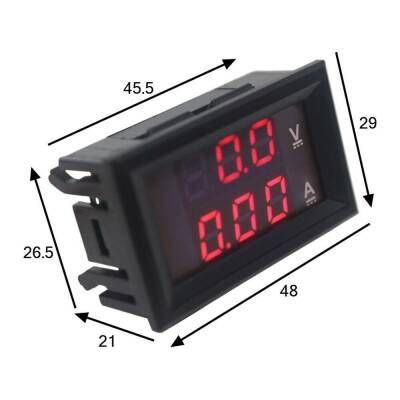

- Dimensions: 48mm x 29mm x 26mm
