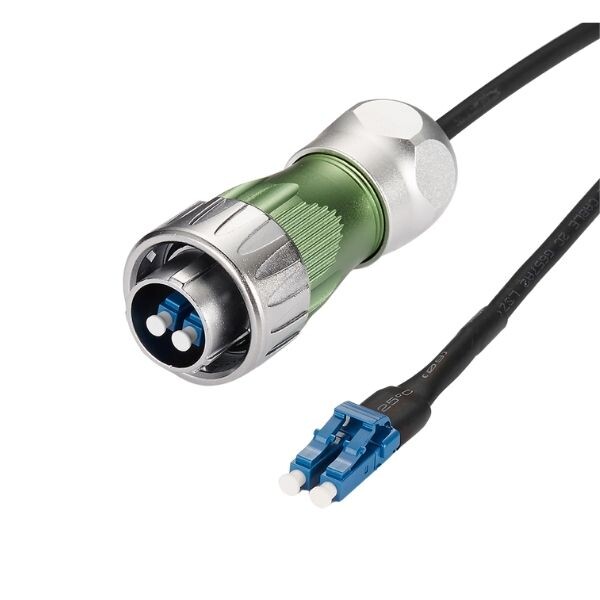

DH24-F0-LC-LC-3M-001 Waterproof Fiber Optic Male Connector - 3M Cable
The high-efficiency connector for optical cable with bayonet connection is designed for safe signal transmission over optical cable. The IP67 LC duplex connector has a corrosion-resistant metal housing in the DH series size 24. The precision connector for optical cable is for fast and safe data transmission in industrial environments with a length of 78 mm. The DH series uses the unique design of the spring, a standard housing made of alloy material, a continuous fixing method on the outer seal and a new appearance that meets the high-quality application requirements. The optical connector is waterproof and dustproof according to the IP67 protection class. The bayonet connection ensures a safe connection and protects against data and signal interruption. The optical cable connectors have a color coding system for quick cable identification. The connectors are resistant to temperature and pressure.
DH-24-J/LC/213/SX-43-401 Waterproof Fiber Optic Connector - Female is compatible with.
CNLINKO products can be produced with cables upon request. Special production is valid for bulk purchases. For special requests, you can send an e-mail to info@motorobit.com.
Technical Specifications
- Fiber Optic
- Number of Pins: 2
- IP65/67 Class When Connected
- Rated Current - 1.5 Ampere
- Cable Connection: 26-24 AWG
- Cable Length: 3m
- Operating Temperature - -40 C - 80 C
- Body Material - Aluminum Alloy
- Flammability Rating- UL94-V0
